Honda Civic (2002 – 2005) – fuse box diagram
Year of production: 2002, 2003 ,2004, 2005

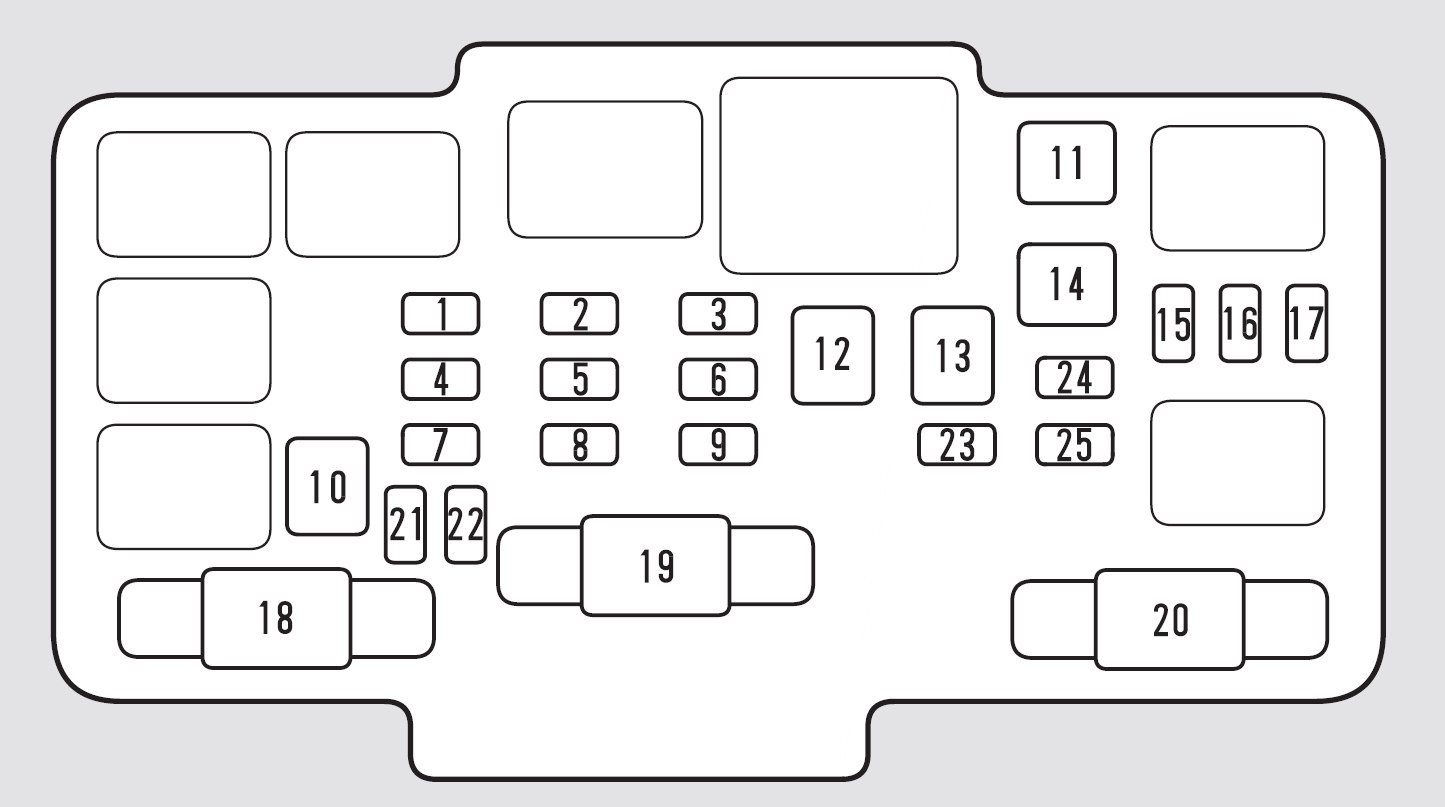

Engine Compartment Fuse Box
| Number | Ampere rating [A] | Circuits protected |
| 1 | 20 | Condenser Fan |
| 2 | 15 | Small Light |
| 3 | 7,5 | Interior Light |
| 4 | 20 | Cooling Fan |
| 5 | 10 | Hazard |
| 6 | 15 | FI ECU |
| 7 | 15 | Horn, Stop |
| 8 | 20 | ABS F/S |
| 9 | 10 | Back Up |
| 10 | 40 | ABS Motor |
| 11 | 30 | Rear Defroster |
| 12 | 40 | Heater Motor |
| 13 | 40 | Power Window |
| 14 | 40 | Option |
| 15 | 15 | Left Headlight |
| 16 | 20 | Door Lock |
| 17 | 15 | Right Headlight |
| 18 | — | Not Used |
| 19 | 80 | Battery |
| 20 | 40 | Ignition 1 |
| 21-25 | — | Spare Fuses |

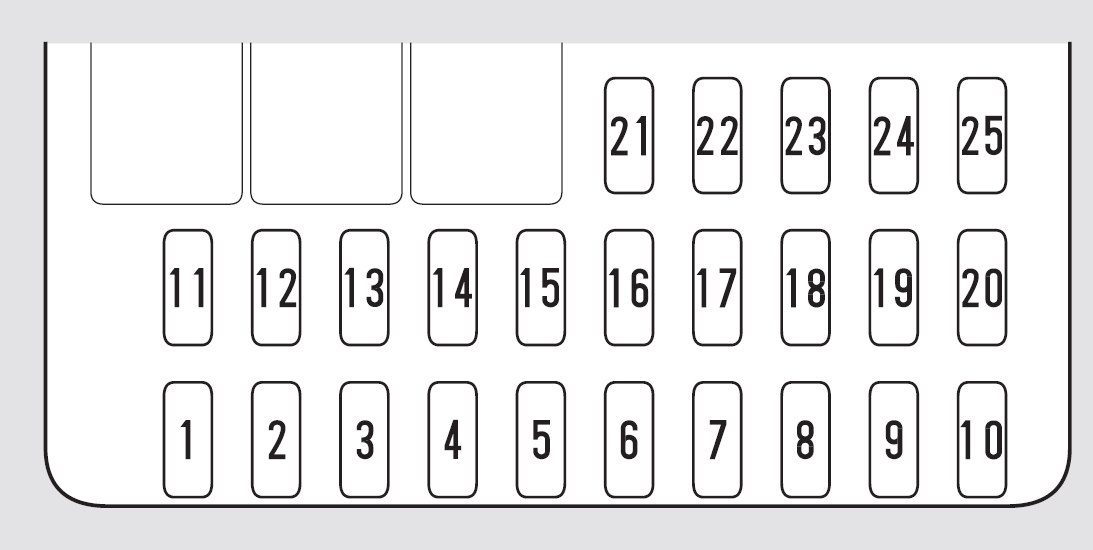

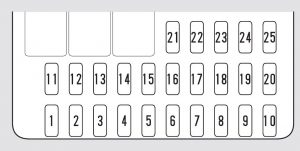

Interior Fuse Box
| Number | Ampere rating [A] | Circuits protected |
| 1 | 15 | Ignition Coil |
| 2 | 20 | LAF Heater |
| 3 | 10 | Daytime running lights* |
| 4 | 10 | Alternator |
| 5 | — | Not Used |
| 6 | 7,5 | Power Window Relay |
| 7 | 20 | Moonroof |
| 8 | 7,5 | Accessory, Radio |
| 9 | — | Not Used |
| 10 | 7,5 | Meter |
| 11 | 7,5 | ABS |
| 12 | 7,5 | Daytime running light* |
| 13 | 10 | SRS |
| 14 | 10 | Remote Control Mirrors |
| 15 | — | Not Used |
| 16 | — | Not Used |
| 17 | 15 | Fuel Pump |
| 18 | 15 | Accessory Power Socket |
| 19 | 7,5 | Turn Signal Lights |
| 20 | 20 | Front Wiper |
| 21 | — | Not Used |
| 22 | 20 | Front Right Power Window |
| 23 | 20 | Front Left Power Window |
| 24 | 20 | Rear Left Power Window |
| 25 | 20 | Rear Right Power Window |
| *: On Canadian models | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
