Honda CR-V (2010 – 2011) – fuse box diagram
Year of production: 2010, 2011
Interior fuse box

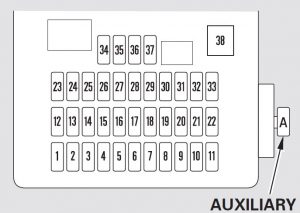

Honda CR-V – fuse box diagram – interior
Number
Ampere rating [A]
Circuits Protected
1
7,5
Power Window Relay
2
15
Fuel Pump
3
10
ACG
4
7,5
ABS/VSA
5
(15)
Heated Seats*
6
—
Not used
7
—
Not used
8
10
Rear Wiper
9
7,5
ODS (Ocupant Detection System)
10
7,5
Meter
11
10
SRS
12
10
Right Headlight High Beam
13
10
Left Headlight High Beam
14
7,5
Small Light (Interior)
15
7,5
Small Light (Exterior)
16
10
Right Headlight Low Beam
17
10
Left Headlight Low Beam
18
20
Main Headlight High Beam
19
15
Small Lights MAIN
20
7,5
TPMS
21
20
Headlight Low Beam
22
—
Not used
23
—
Not used
24
(20)
Moonroof*
25
20
Door Lock
26
20
Front Left Power Window
27
—
Not Used
28
15
Rear Accessory Socket
29
15
Front Accessory Power Socket
30
20
Front Right Power Window
31
(15)
Accessory Power Socket (in the Console Compartment/on the Center Table)
32
20
Rear Right Power Window
33
20
Rear Left power window
34
7,5
ACC Radio
35
7,5
ACC Key lock
36
10
HAC
37
7,5
Daytime Running Lights
38
30
Front Wiper
* : If equipped
Auxiliary
Number
Ampere rating [A]
Circuits protected
A
10
VB SOL
B
—
—
Under – hood fuse box

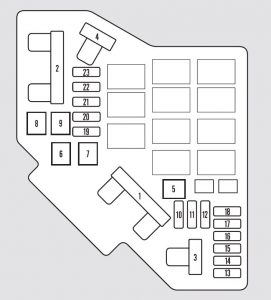

Honda CR-V – fuse box diagram – engine compartment
Number
Ampere rating [A]
Circuits Protected
1
100
Battery
—
Not used
2
80
Option Main
50
Ignition Switch Main
3
20
ABS/VSA FSR
40
ABS/VSA Motor
4
50
Headlight Main
40
Power Window Main
5
—
Not used
6
20
Sub Fan Motor
7
20
Main Fan Motor
8
30
Rear Defogger
9
40
Blower
10
15
Hazard
11
15
LAF
12
15
Stop and Horn
13
(20)
Power Seat DR RR HI/Reclining*
14
(20)
Power Seat DR FR HI/Sliding*
15
7,5
IGPS OIL LEVEL
16
—
Not used
17
(15)
High Power Sound /Windshield Defroster
18
15
IG Coil
19
15
FI Main
20
20
MG Clutch
21
15
DBW
22
7,5
Interior Light
23
10
Back Up
* : : If equipped
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
