Honda CR-Z (2016) – fuse box diagram
Year of production: 2016

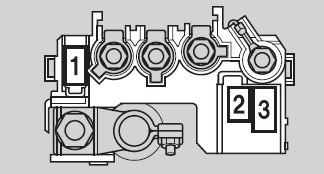

Engine Compartment Fuse Box (type A)
Located near the + terminal on the 12-volt battery.
| Number | Circuit protected | Ampere rating [A] |
| 1 | Battery | 100 |
| 2 | EPS | 70 |
| 3 | Horn, Stop, Hazard | 20 |
Engine Compartment Fuse Box (type B)
Located in the back of the engine compartment on the left side.
| Number | Circuit protected | Ampere rating [A] |
| 1 | HAZARD | 10 |
| 2 | STOP/HORN | 10 |
| 3 | BACK UP | 30 |
| 4 | — | — |
Interior Fuse Box (Type A)
Located under the dashboard.
| Number | Circuit protected | Ampere rating [A] |
| a | TAIL GATE LOCK | 10 |
| b | — | — |
| c | BACK UP | 10 |
| d | STRD | 7,5 |
| Number | Circuit protected | Ampere rating [A] |
| 1 | DOOR LOCK | 20 |
| 2 | — | — |
| 3 | SMART | 10 |
| 4 | R SIDE DOOR UNLOCK | 10 |
| 5 | L SIDE DOOR UNLOCK | ((10) |
| 6 | DR DOOR UNLOCK | (10) |
| 7 | — | — |
| 8 | DR P/W | 20 |
| 9 | DAY LIGHT | (7,5) |
| 10 | AS P/W | 20 |
| 11 | — | — |
| 12 | R SIDE DOOR LOCK | 10 |
| 13 | L SIDE DOOR LOCK | 10 |
| 14 | — | — |
| 15 | H/L HI R | 10 |
| 16 | — | — |
| 17 | DBW | 15 |
| 18 | MG CLUTCH | 7,5 |
| 19 | HEATED SEAT | (15) |
| 20 | MA2 | 15 |
| 21 | IMA1 | 7,5 |
| 22 | WASHER | 15 |
| 23 | RR WIPER | 10 |
| 24 | A/C | 7,5 |
| 25 | DAY LIGHT | (7,5) |
| 26 | FR WIPER | 7,5 |
| 27 | ABS/VSA | 7,5 |
| 28 | SRS | 10 |
| 29 | H/L HI L | 10 |
| 30 | IG IMA | 10 |
| 31 | P/W | 10 |
| 32 | FUEL PUMP | 15 |
| 33 | SRS | 7,5 |
| 34 | METER | 7,5 |
| 35 | BACK LIGHT | 10 |
| 36 | FR ACC SOCKET | 20 |
| 37 | ACC | 7,5 |
| 38 | — | — |
| 39 | RR WIPER | 7,5 |
| 40 | — | — |
| 41 | — | — |
| 42 | — | — |
| 40* |
Interior Fuse Box (Type B)
Located under the driver side dashboard.
| Number | Circuit protected | Ampere rating [A] |
| 1 | RR DEF | 30 |
| IG MAIN | 30 | |
| FB MAIN2 | 50 | |
| FB MAIN3 | 40 | |
| FB MAIN1 | 30 | |
| — | 40 | |
| 2 | EPB L | 30 |
| EPB R | 30 | |
| IG MAIN2 | 30 | |
| — | 40 | |
| COND FAN | 30 | |
| MAIN FAN | 30 | |
| 3 | WIPER | 30 |
| 4 | STARTER | 30 |
| 5 | BACK UP MAIN | 15 |
| 6 | FR FOG | (20) |
| 7 | IGP | 15 |
| 8 | SMALL | 10 |
| 9 | H/L LO MAIN | 20*1 |
| 30*2 | ||
| 10 | AUDIO AMP | (20) |
| 11 | HTR | 30 |
| 12 | — | — |
| 13 | — | — |
| 14 | — | — |
| 15 | H/MIRROR | (10) |
| *1: Models with halogen bulb low beam headlights *2: Models with discharge headlights |
||
Interior Fuse Box (Type C)
Located under the driver side dashboard.
| Number | Circuit protected | Ampere rating [A] |
| 1 | H/L LO L | 10*1 |
| 15*2 | ||
| 2 | H/L LO R | 10*1 |
| 15*2 | ||
| 3 | VSA FSR | 30 |
| 4 | LAF | 10 |
| 5 | IG COIL | 15 |
| 6 | IGPS | 7,5 |
| *1: Models with halogen bulb low beam headlights *2: Models with discharge headlights |
||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
