Honda Crosstour (2011 – 2012) – fuse box diagram
Year of production: 2011, 2012
Engine Compartment Fuse Box

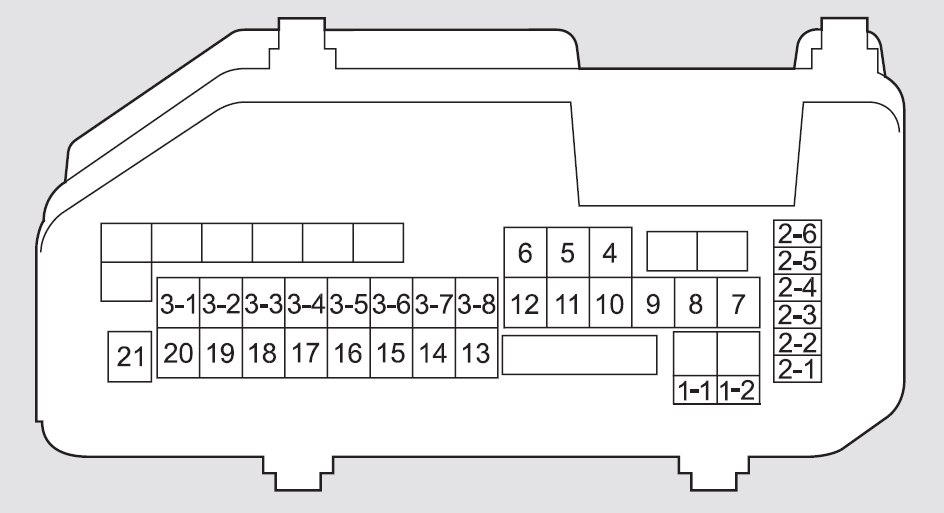

Honda Crosstour – fuse box diagram – engine compartment
| Number |
Ampere rating [A] |
Circuits protected |
| 1-1 |
120 |
Battery |
| 1-2 |
40 |
Passenger’s Side Fuse Box |
| 2-1 |
— |
Not Used |
| 2-2 |
40 |
BS/VSA |
| 2-3 |
30 |
ABS/VSA Motor |
| 2-4 |
40 |
Passenger’s Side Fuse Box |
| 2-5 |
— |
Not Used |
| 2-6 |
— |
Not Used |
| 3-1 |
30 |
Sub Fan Motor |
| 3-1 |
30 |
Wiper Motor |
| 3-3 |
30 |
Main Fan Motor |
| 3-4 |
30 |
Driver’s Side Light Main |
| 3-5 |
60 |
Driver’s Side Fuse Box |
| 3-6 |
30 |
Passenger’s Side Light Main |
| 3-7 |
— |
Not Used |
| 3-8 |
50 |
IG Main |
| 4 |
7,5 |
Fan Relay |
| 5 |
40 |
Rear Defroster |
| 6 |
— |
Not Used |
| 7 |
15 |
Hazard |
| 8 |
20 |
Horn, Stop |
| 9 |
— |
Not Used |
| 10 |
(15) |
Trailer# |
| 11 |
15 |
IG Coil |
| 12 |
15 |
FI Sub |
| 13 |
— |
Not Used |
| 14 |
— |
Not Used |
| 15 |
10 |
Back Up |
| 16 |
7,5 |
Interior Lights |
| 17 |
15 |
FI Main |
| 18 |
15 |
DBW |
| 19 |
7,5 |
Back Up, FI ECU |
| 20 |
40 |
Heater Motor |
| 21 |
7,5 |
MG Clutch |
| #: Use this space for the trailer light, if it is installed |
Interior Fuse Box (driver’s side)

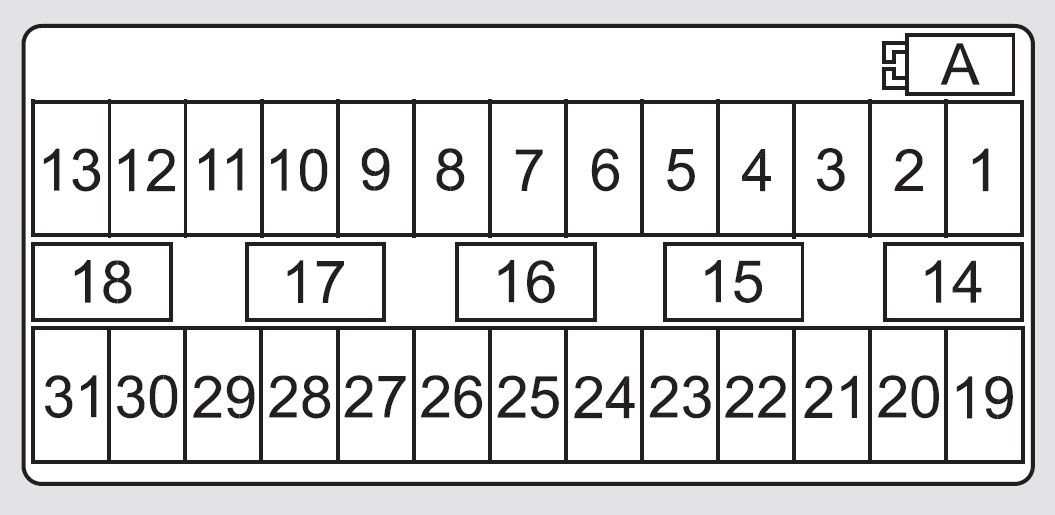

Honda Crosstour – fuse box diagram – interior (driver’s side)
| Number |
Ampere rating [A] |
Circuits protected |
| 1 |
— |
Not Used |
| 2 |
7,5 |
Seat Memory* |
| 3 |
15 |
Washer |
| 4 |
10 |
Wiper |
| 5 |
7,5 |
Meter |
| 6 |
7,5 |
ABS/VSA |
| 7 |
15 |
ACG |
| 8 |
7,5 |
STS |
| 9 |
20 |
Fuel Pump |
| 10 |
10 |
VB SOL2 |
| 11 |
10 |
SRS |
| 12 |
7,5 |
OPDS (Occupant Position Detection System) |
| 13 |
— |
Not Used |
| 14 |
10 |
ACM |
| 15 |
7,5 |
Daytime Running Lights |
| 16 |
7,5 |
A/C |
| 17 |
7,5 |
Accessory, Key, Lock |
| 18 |
7,5 |
Accessory |
| 19 |
20 |
Driver’s Power Seat Sliding |
| 20 |
20 |
Moonroof |
| 21 |
20 |
Driver’s Power Seat Reclining |
| 22 |
20 |
Rear Left Power Window |
| 23 |
15 |
Front Accessory Power Socket |
| 24 |
20 |
Driver’s Power Window |
| 25 |
15 |
Driver’s Side Door Lock |
| 26 |
10 |
Left Front Fog Light |
| 27 |
10 |
Left Side Small Lights (Exterior) |
| 28 |
10 |
Left Headlight High Beam |
| 29 |
7,5 |
TPMS |
| 30 |
15 |
Left Headlight Low Beam |
| 31 |
— |
Not Used |
| A |
— |
Not Used |
| *: If equipped |
Interior Fuse Box (passenger’s side)

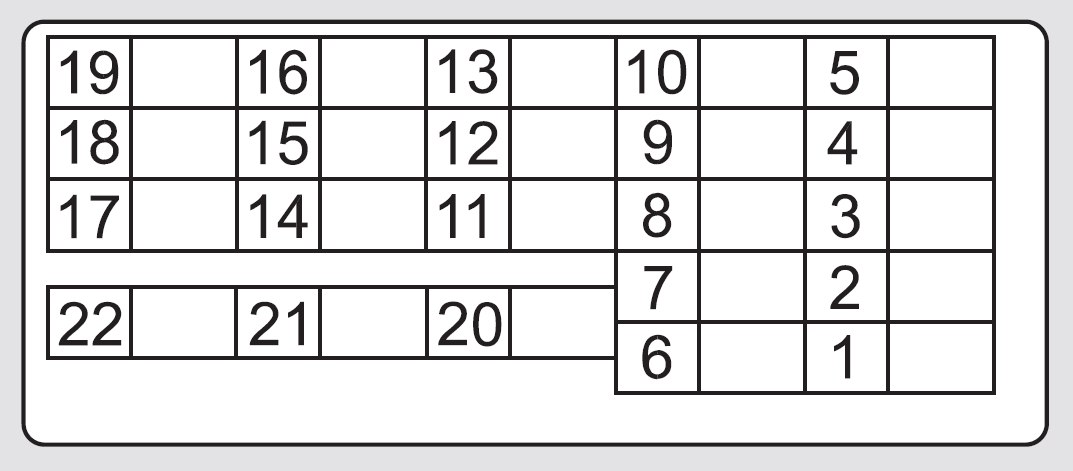

Honda Crosstour – fuse box diagram – interior (passenger’s side)
| Number |
Ampere rating [A] |
Circuits protected |
| 1 |
10 |
Right Headlight High Beam |
| 2 |
10 |
Right Side Small Lights (Exterior) |
| 3 |
10 |
Right Front Fog Light |
| 4 |
15 |
Right Headlight Low Beam |
| 5 |
— |
Not Used |
| 6 |
7,5 |
Interior Lights |
| 7 |
— |
Not Used |
| 8 |
20 |
Front Passenger’s Power Seat Reclining |
| 9 |
20 |
Front Passenger’s Power Seat Sliding |
| 10 |
10 |
Right Side Door Lock |
| 11 |
20 |
Rear Right Power Window |
| 12 |
15 |
Accessory Power Socket (Console) |
| 13 |
20 |
Front Passenger’s Power Window |
| 14 |
— |
Not Used |
| 15 |
20 |
Premium AMP* |
| 16 |
15 |
Accessory Power Socket (Cargo) |
| 17 |
— |
Not Used |
| 18 |
10 |
Lumbar Support |
| 19 |
15 |
Seat Heater* |
| 20 |
— |
Not Used |
| 21 |
— |
Not Used |
| 22 |
— |
Not Used |
| *: If equipped |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
