Honda Odyssey (2000 – 2001) – fuse box diagram
Year of production: 2000, 2001
Primary engine compartment fuse box
| Number | Ampere rating [A] | Circuit protected |
| 1 | 20 | Spare Fuse |
| 2 | 30 | Spare Fuse |
| 3 | 15 | Right Headlight |
| 4 | 15 | ACG S |
| 5 | 15 | Hazard |
| 6 | — | Not Used |
| 7 | 20 | Stop |
| 8 | 15 | Left Headlight |
| 9 | 20 | ABS F/S |
| 10 | 40 | Power Window Motor |
| 11 | 30 | Power Sliding Door* |
| 12 | 30 | Rear Defroster |
| 13 | 40 | Back Up, ACC |
| 14 | 40 | Power Seat* |
| 15 | 40 | Heater Motor |
| 16 | 30 | Cooling Fan |
| 17 | 7,5 | Spare Fuse |
| 18 | 10 | Spare Fuse |
| 19 | 15 | Spare Fuse |
| 20 | 120 | Battery |
| 21 | 30 | Condenser Fan |
| 22 | 7,5 | MG Clutch |
| 23 | 50 | Ignition Switch (IG 1 Main) |
| 24 | 30 | ABS Motor |
| *: EX model | ||

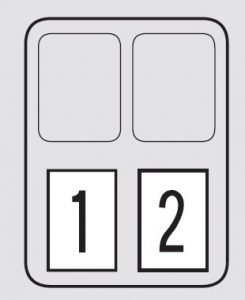

Secondary engine compartment fuse box
| Number | Ampere rating [A] | Circuit protected |
| 1 | 30 | Power Sliding Door |
| 2 | 40 | Rear A/C |
| *: EX model | ||

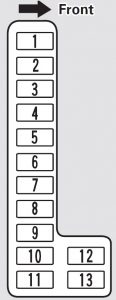

Interior fuse box (driver’s side)
| Number | Ampere rating [A] | Circuit protected |
| 1 | 15 | Fuel Pump |
| 2 | 15 | SRS |
| 3 | 7,5 | Heater Control, A/C Clutch Relay, Cooling Fan Relay |
| 4 | 7,5 | Power Mirror |
| 5 | 7,5 | Daytime Running Light* |
| 6 | 15 | ECU(PCM), Cruise Control |
| 7 | 10 | Rear Wiper |
| 8 | 7,5 | ACC Relay |
| 9 | 10 | Back-up Lights, Instrument Lights |
| 10 | 7,5 | Turn Signals |
| 11 | 15 | IG Coil |
| 12 | 30 | Front Wiper |
| 13 | 7,5 | Starter Signal |
| *: On Canadian models | ||

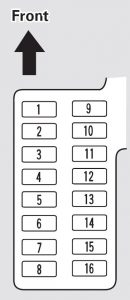

Interior fuse box (passenger’s side)
| Number | Ampere rating [A] | Circuit protected |
| 1 | 20 | Driver’s Side Automatic Sliding Door |
| 2 | 20 | Power Seat Reclining*1 |
| 3 | 10 | BSC*1 |
| 4 | 20 | Power Seat Sliding*1 |
| 5 | 20 | Passenger’s Side Automatic Sliding Door |
| 6 | 10 | Daytime Running Light*2 |
| 7 | 7,5 | Left Power Vent |
| 8 | 20 | Front Passenger’s Power Window |
| 9 | 15 | ACC Socket |
| 10 | 15 | Small Light, License Light |
| 11 | 15 | Interior Light, Radio |
| 12 | 20 | Power Door Locks |
| 13 | 7,5 | Clock, Back Up |
| 14 | 7,5 | ABS Motor Check |
| 15 | 20 | Driver’s Power Window |
| 16 | 7,5 | Right Power Vent |
| *1: EX *2: Canadian models |
||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
