Honda Odyssey (2014) – fuse box diagram
Year of production: 2014
Engine Compartment Fuse Box (Passenger Side)
| Number | Ampere rating [A] | Circuit protected |
| 1 | — | — |
| 2 | — | — |
| 3 | 15 | ACG FR |
| 4 | 15 | Washer |
| 5 | 7,5 | VB SOL |
| 6 | 7,5 | ECU FR |
| 7 | — | — |
| 8 | 15 | FI Sub |
| 9 | 15 | DBW |
| 10 | 15 | FI Main |
| 11 | 15 | Ignition Coil |
| 12 | — | — |
| 13 | — | — |
| 14 | — | — |
| 15 | 20 | Radio |
| 16 | 10 | Back Up |
| 17 | 7,5 | MG Clutch |
| 18 | 20 | Front Fog Lights* |
| 19 | — | — |
| 20 | 10 | Right Headlight High Beam |
| 21 | — | — |
| 22 | 10 | Small Lights |
| 23 | — | — |
| 24 | 10 | Left Headlight High Beam |
| 25 | — | — |
| 26 | 15 | Right Headlight Low Beam |
| 27 | 15 | Left Headlight Low Beam |
| 28 | 7,5 | IGPS Oil Level |
| 29 | 30 | Cooling Fan |
| 30 | 30 | Sub Fan |
| 31 | 30 | Wiper Main |
| *: Not available on all models | ||
Engine Compartment Fuse Box (Driver Side)
| Number | Ampere rating [A] | Circuit protected |
| 1 | 125 | Battery |
| 2-1 | 60 | Fan Main |
| 2-2 | 50 | Passenger’s Side Fuse Box 2 |
| 2-3 | 30 | HondaVACTM* |
| 2-4 | 30 | Interior Light, FI Main |
| 2-5 | 40 | Stop & Horn, Hazard |
| 2-6 | 30 | Rear Blower, Battery Management System |
| 2-7 | 30 | VSA FSR |
| 2-8 | 30 | VSA Motor |
| 3-1 | 50 | Driver’s Side Fuse Box 2 |
| 3-2 | 50 | IG1 Main*1 |
| 40 | Starter Motor*2 | |
| 3-3 | 60 | Rear Fuse Box 1 |
| 3-4 | 50 | Passenger’s Side Fuse Box 1 |
| 3-5 | 50 | Driver’s Side Fuse Box 1 |
| 3-6 | 60 | Engine Compartment Fuse Box (Passenger Side) Main |
| 3-7 | 40 | Passenger’s Side Power Sliding Door Motor* |
| 3-8 | 40 | Front Blower |
| 4 | 40 | Rear Defroster |
| 5 | — | — |
| 6 | 30 | IG Main 2* |
| 7 | 30 | IG Main 1* |
| 8 | 7,5 | Battery Management System |
| 9 | 20 | Stop & Horn |
| 10 | 15 | Hazard |
| 11 | 7,5 | Interior Lights |
| *1: Models without smart entry system *2: Models with smart entry system |
||

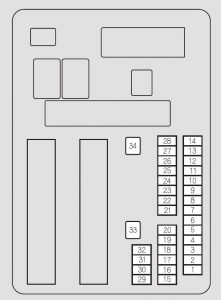

Driver Side Fuse Box
| Number | Ampere rating [A] | Circuit protected |
| 1 | 7,5 | Front Passenger’s Door Lock |
| 2 | 7,5 | Rear Passenger’s Door Lock |
| 3 | 7,5 | Driver’s Door Lock |
| 4 | 7,5 | Front Passenger’s Door Unlock |
| 5 | 7,5 | Rear Passenger’s Door Unlock |
| 6 | 7,5 | Driver’s Door Unlock |
| 7 | 20 | Door Lock Main |
| 8 | 10 | HAC Option* |
| 9 | 20 | Driver’s Side Power Slide Door Closer* |
| 10 | 15 | Rear Fuse Box |
| 11 | 7,5 | Meter |
| 12 | 20 | Engine Compartment Fuse Box (Passenger Side) |
| 13 | 7,5 | Accessory |
| 14 | 7,5 | STS* |
| 15 | 20 | Driver’s Power Seat Sliding |
| 16 | 20 | Moonroof* |
| 17 | 20 | Rear Driver’s Side Power Window |
| 18 | 10 | Smart Entry System* |
| 19 | 20 | Driver’s Power Window |
| 20 | — | — |
| 21 | 20 | Fuel Pump |
| 22 | 15 | Passenger’s Side Fuse Box |
| 23 | 7,5 | VSA |
| 24 | 7,5 | ACG AS |
| 25 | 7,5 | STRLD |
| 26 | 7,5 | HAC |
| 27 | 7,5 | DRL |
| 28 | 7,5 | ACC Key Lock |
| 29 | 7,5 | Driver’s Power Seat*, Lumbar Support |
| 30 | 7,5 | TPMS |
| 31 | — | — |
| 32 | 20 | Driver’s Power Seat Reclining |
| 33 | 40 | Driver’s Side Power Slide Door Motor* |
| 34 | — | — |
| *: Not available on all models | ||
Passenger Side Fuse Box
| Number | Ampere rating [A] | Circuit protected |
| 1 | 30 | Premium Amp* |
| 2 | 20 | Rear Passenger’s Side Power Window |
| 3 | 10 | ACM |
| 4 | — | — |
| 5 | 20 | Seat Heaters* |
| 6 | — | — |
| 7 | 20 | Front Passenger’s Power Seat Sliding |
| 8 | 20 | Front Passenger’s Power Seat Reclining |
| 9 | — | — |
| 10 | — | — |
| 11 | — | — |
| 12 | — | — |
| 13 | 20 | Passenger’s Side Power Sliding Door Closer* |
| 14 | 15 | Rear Accessory Power Socket |
| 15 | — | — |
| 16 | — | — |
| 17 | — | — |
| 18 | 20 | Front Passenger’s Power Window |
| 19 | 10 | SRS |
| 20 | 7,5 | ECU AS |
| 21 | 7,5 | Headlight Adjuster* |
| 22 | — | — |
| 23 | 7,5 | OPDS* |
| 24 | 7,5 | OPDS* |
| 25 | 7,5 | Illumination (Interior) |
| 26 | — | — |
| 27 | 15 | Front Accessory Power Socket |
| 28 | — | — |
| *: If equipped | ||

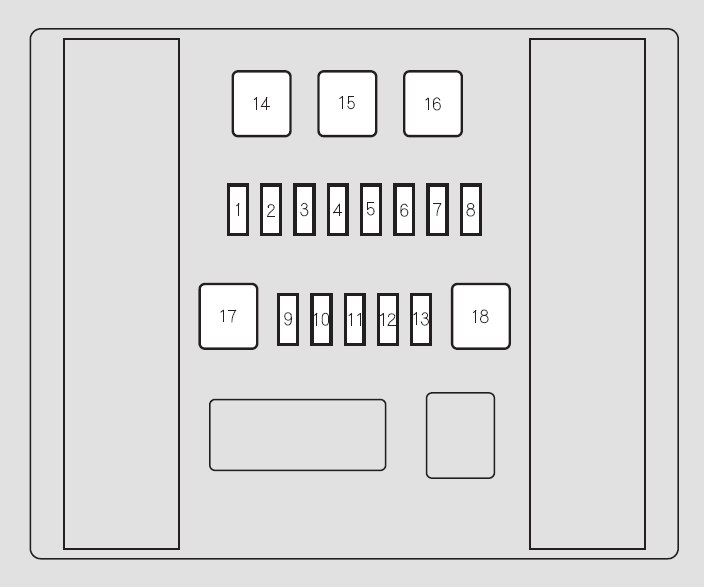

Rear Fuse Box
| Number | Ampere rating [A] | Circuit protected |
| 1 | 20 | Power Tailgate Closer* |
| 2 | 7,5 | Trailer Small Light* |
| 3 | — | — |
| 4 | 10 | Tailgate* |
| 5 | 7,5 | Rear Driver’s Side Door Lock |
| 6 | — | — |
| 7 | — | — |
| 8 | 10 | Trailer* |
| 9 | 20 | Trailer Charge* |
| 10 | 7,5 | Trailer Back Light* |
| 11 | 7,5 | Trailer Hazard* |
| 12 | 10 | Rear Wiper |
| 13 | 7,5 | ECU RR |
| 14 | 40 | Power Tailgate Motor* |
| 15 | 30 | AC Inverter* |
| 16 | — | — |
| 17 | — | — |
| 18 | — | — |
| *: Not available on all models | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
