Honda Odyssey (RB1 – RB2) (2003 – 2008) – fuse box diagram

Honda Odyssey (RB1 – RB2) (2003 – 2008) – fuse box diagram

Year of production: 2003, 2004, 2005, 2006, 2007, 2008

Primary Under-Hood Fuse Box

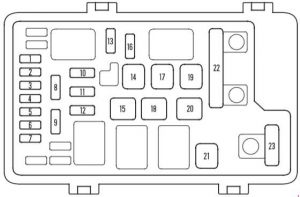

Honda Odyssey – fuse box diagram – primary under-hood
Honda Odyssey – fuse box diagram – primary under-hood
No.
A
Circuit Protected
1 10 Left Headlight Low
2 30 Rear Defroster Coil
3 10 Left Headlight High
4 15 Small Lights
5 10 Right Headlight High
6 10 Right Headlight Low
7 7.5 Back Up
8 15 FI ECU (PCM)
9 30 Condenser Fan
10 Not used
11 30 Cooling Fan
12 7.5 MG Clutch
13 20 Horn, Stop
14 30 Rear Defroster
15 40 Back Up, ACC
16 15 Hazard
17 30 VSA Motor
18 30 VSA
19 30 Option 1
20 40 Option 2
21 40 Heater Motor
22 70 Passenger’s Fuse Box
120 Battery
23 50 IG1 Main
50 Power Window Main
40

Secondary Under-Hood Fuse Box

Honda Odyssey – fuse box diagram – secondary under-hood
Honda Odyssey – fuse box diagram – secondary under-hood
No.
A
Circuit Protected
1 Not Used
2 40 Left Power Sliding Door
3 40 Right Power Sliding Door
4 40 Power Tailgate
5 20 Premium
6 20 AC Inverter
7 10 Fog Light
8 10 ACM
9 Not Used
10 Not Used
11 7.5 Rear Entertainment System

Driver Side Fuse Box

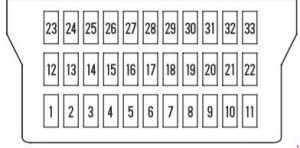

Honda Odyssey – fuse box diagram – instrument panel – driver side
Honda Odyssey – fuse box diagram – instrument panel – driver side
No.
A
Circuit Protected
1 7.5 TPMS
2 15 IG Coil
3 10 Daytime Running Light
4 15 LAF
5 10 Radio
6 7.5 Interior Lights
7 7.5 Back Up
8 Not Used
9 15 Front Accessory Socket
10 7.5 OPDS
11 30 IG Wiper
12 15 Rear Accessory Socket
13 20 Left Power Sliding Door Closer
14 20 Driver Power Seat Slide
15 20 Pedal Position Adjustment
16 20 Dr Power Seat Recline
17 20 Power Tailgate Closer
18 15 IGACG
19 15 IG Fuel Pump
20 10 IG Washer
21 7.5 IG Meter
22 10 IGSRS
23 7.5 IGP
24 20 Left Rear Power Window
25 20 Right Rear Power Window
26 20 Passenger’s Power Window
27 20 Driver’s Power Window
28 20 Moonroof
29 Not Used
30 10 IGHAC
31 15 IG SOL
32 10 ACC
33 7.5 HACOP

Driver Side Fuse Box

Honda Odyssey – fuse box diagram – instrument panel – driver side
Honda Odyssey – fuse box diagram – instrument panel – driver side
No.
A
Circuit Protected
1 7.5 STS

Passenger Side Fuse Box

Honda Odyssey – fuse box diagram – instrument panel – passenger side
Honda Odyssey – fuse box diagram – instrument panel – passenger side
No.
A
Circuit Protected
1 30 Rear Blower
2 Not Used
3 15 DBW
4 20 Door Lock
5 Not Used
6 15 Heated Seat
7 7.5 Instrument Panel
8 20 Right Power Sliding Door Closer
9 15 Front Accessory Socket

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
