Honda Passport (1993 – 1997) – fuse box diagram
Year of production: 1993, 1994, 1995, 1996, 1997

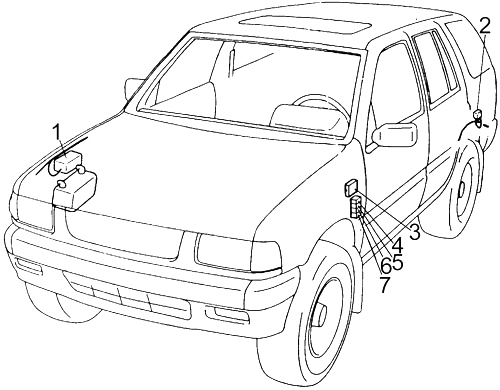

- Fuse Box No.1
- Rear Wiper Relay
- Fuse Box No.2
- Rear Window Defogger Relay
- Tail Light Relay
- Power Window Relay
- UpShift Relay

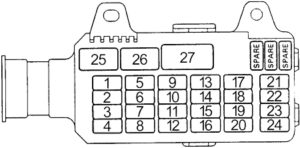

Passenger Compartment Fuse Box (’93-‘95,5)
| No. | A | Circuits |
| 1 | 10 | Taillights & Side Marker Lights, Parking & License Lights, Instrument Illumination |
| 2 | 10 | Stoplight, ECT Computer (4WD A/T) |
| 3 | 10 | Interior Lights, Cargo Light, Seat Belt Reminder (Buzzer), ECM Controller (2.6L) |
| 4 | 25 | Rear Window Defogger, Power Door Locks, Tailgate Glass Release |
| 5 | 10 | 3.2L: Automatic Transmission Control Module (TCM), Back-Up Lights |
| 20 | 2.6L: Fuel Pump, Fuel Injection System | |
| 6 | 15 | Windshield Washer & Wiper, Mirror Defoggers |
| 7 | 10 | Indicators, Gauges, Turn Signal Lights, Power Windows (3.2L), Vehicle Speed Sensor (VSS) (3.2L), Rear Window Defogger (2.6L) |
| 8 | 10 | Charging System, Back-Up Lights, Fuel Injection System, Cruise Control (3.2L), Brake Lights (3.2L) |
| 9 | 15 | Ignition Coil |
| 10 | 10 | Rear Wiper/Washer |
| 11 | 10 | 3.2L: Starting System |
| 10 | 2.6L: Starter, Engine Control Module (ECM) | |
| 12 | 15 | Cigarette Lighter, Radio, Power Mirrors |
| 13 | 20 | Rear Wheel Anti-Lock Control |
| 14 | — | — |
| 15 | — | — |
| 16 | — | — |
| 17 | — | — |
| Circuit Breaker | ||
| 18 | 30 | Power Window |

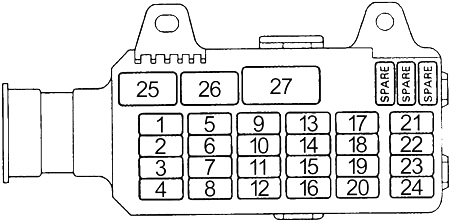

Passenger Compartment Fuse Box (‘95,5-’97)
| No. | A | Circuits |
| 1 | 10 | Starter |
| 2 | 20 | ’95: Fuel Pump |
| 3 | 15 | Generator, ECM, VSV EGR (3.2L), VSV Canister (3.2L), Shift Indicator Controller (3.2L), A/C Compressor Controls (’96) |
| 4 | 15 | Ignition Coil (2.6L), Electronic Inition (3.2L), Power SW (2.6L) |
| 5 | 15 | Taillight, Illumination Light, Illumination Controller |
| 6 | 15 | Security System |
| 7 | 15 | Meter, Rear Window Defroster Relay, Vehicle Speed Sensor, Seat Belt – Key & Light Reminder Buzzer, Cruise Indicator, Shift Lock Controller |
| 8 | 15 | Security System |
| 9 | 10 | Luggage Room Light, Courtesy Light, Dome Light, Map Light, Seat Belt – Key & Light Reminder Buzzer, Audio |
| 10 | — | — |
| 11 | 20 | Front Wiper/Washer, Intermittent Wipers |
| 12 | 10 | Cruise Control Unit, Shift-On-The-Fly System |
| 13 | 15 | Stoplights, High Mounted Stop Light, Cruise Control Unit, Rear Wheel ABS Controller, Automatic Transmission TCM (3.2L), Shift Lock and Shift Indicator Controller (3.2L) |
| 14 | 20 | Power Door Lock |
| 15 | 15 | Back-Up Light, Turn Signal, Flasher, Cruise Control Unit (A/T) Power Window Relay, Mirror Heater |
| 16 | 10 | Rear Wiper/Washer |
| 17 | 15 | Rear Window Defroster, Hatch Gate Actuator, Defroster Switch, Security System |
| 18 | 15 | Rear Window Defroster, Hatch Gate Actuator, Defroster Switch, Security System |
| 19 | 15 | Audio, Power Mirrors |
| 20 | 15 | Ciger Lighter |
| 21 | 10 | SRS 1 (Airbag) – Warning Light |
| 22 | 10 | SRS 2 (Airbag) – Inflator (Driver & Passenger) |
| 23 | 20 | Rear ABS Controller |
| 24 | 10 | ABS |
| Diode | ||
| 25 | — | Dome Light |
| 26 | — | Courtesy Light |
| Circuit Breaker | ||
| 27 | 30 | Power Window |

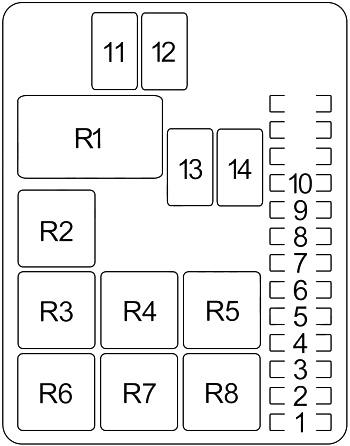

Engine Compartment Fuse Box (’93-‘95,5)
| No. | A | Circuits |
| 1 | 15 | 2.6L: ECM, Fuel Injection System |
| 10 | 3.2L: Heated Oxygen Sensor, Fuel Injection System | |
| 2 | 20 | 2.6L: Fuel Pump |
| 15 | 3.2L: Fuel Pump | |
| 3 | 15 | Turn Signal Lights, Hazard Warning Flasher Lights |
| 4 | 10 | Horn, Door Locks |
| 5 | 10 | Charging System, Charge Warning Light |
| 6 | 10 | 2.6L: Heated Oxygen Sensor, Fuel Injection System |
| 10 | 3.2L: A/T Interlock System | |
| 7 | 20 | Heater/Air Conditioning Blower Controls |
| 8 | 10 | Air Conditioner Compressor Controls |
| 9 | 10 | Right Headlight |
| 10 | 10 | Left Headlight |
| 11 | 30 | Main No.2 |
| 12 | 30 | A/T: Condenser Fan |
| 13 | 30 | 3.2L: Engine Control Module (ECM) |
| 14 | 60 | Main No.1 |
| Relay | ||
| R1 | Wiper | |
| R2 | Starter | |
| R3 | A/C – Heater | |
| R4 | Charge | |
| R5 | Engine Control Module (ECM) | |
| R6 | Headlight | |
| R7 | A/C Compressor | |
| R8 | Fuel Pump | |

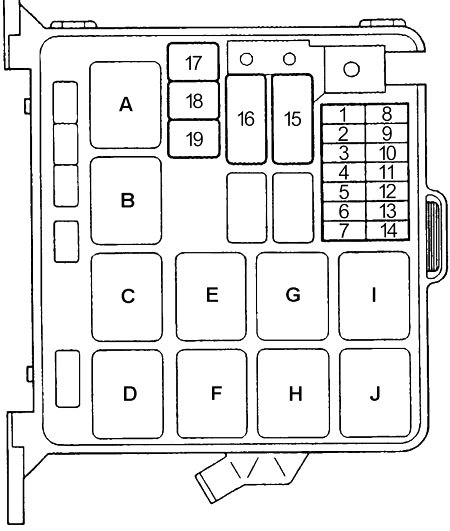

Engine Compartment Fuse Box (‘95,5-’97)
| No. | A | Circuits |
| 1 | 15 | Hazard Warning Light, Flasher Unit |
| 2 | 10 | Horn, Data Link Connector (DLC) |
| 3 | — | — |
| 4 | 20 | Blower Motor |
| 5 | 10 | Air Conditioner Compressor Clutch, A/C Compressor (3.2L), Fast Idle Control Device (2.6L) |
| 6 | 10 | ’95: Charge Warning Light |
| 7 | — | — |
| 8 | 10 | Headlamp – LH, High Beam Indicator Lamp |
| 9 | 10 | Headlamp – RH |
| 10 | 10 | O2 Sensor (Oxygen Sensor) |
| 20 | ‘3.2L (’96-’97): O2 Sensor (Oxygen Sensor) | |
| 11 | 20 | Fuel Pump 1 |
| 12 | 15 | ECM, Fuel Injector, VSV, EGR (2.6L), VSV Canister (2.6L), EGR Duty Solenoid (2.6L), VSV Power Regulator (2.6L) |
| 13 | 15 | ’96-’97: Electronic Brake Control Module (EBCM) |
| 14 | 20 | 2.6L: Fuel Pump 2 |
| 14 | 15 | ’96-’97: ABS Hydraulic Unit |
| 15 | 100 | ’95:Power Distribution, Charging System |
| 60 | ’96-’97: Fuel Injection System, Starting System | |
| 16 | 60 | ’95: Key Switch |
| 100 | ’96-’97: Power Distribution, Charging System | |
| 17 | 30 | ’95:Condensor Fan |
| 40 | ’96-’97: ABS | |
| 18 | — | — |
| 19 | 30 | ’96-’97: Condensor Fan |
| Relay | ||
| A | Headlight | |
| B | 3.2L: A/C – Compressor | |
| C | Charge | |
| D | Horn | |
| E | Thermo | |
| F | Starter | |
| G | Heater | |
| H | Engine Control Module (ECM) | |
| I | Fuel Pump | |
| J | 3.2L: Air Conditioner Fan | |
| Diode |
||
| Starter Relay, Charge Warning Light, Hatch Gate | ||
| Engine Control Module (ECM) | ||
| Fuel Pump | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
