Honda Prelude (2000) – fuse box diagram
Year of production: 2000

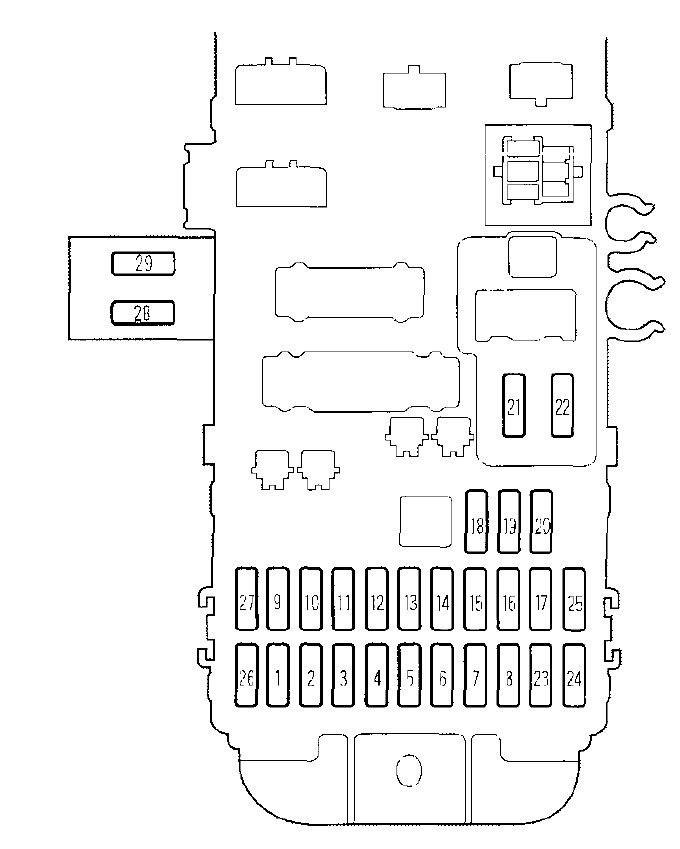

Interior fuse box
| Number | Ampere rating [A] | Circuit protected |
| 1 | 10 | Active torque transfer system unit*1 |
| 2 | 7,5 | Starter signal |
| 3 | — | — |
| 4 | 10 | ACGS |
| 5 | 10 | RR Speaker |
| 6 | 15 | Heated seats*2 |
| 7 | 30 | Moonroof |
| 8 | 7,5 | Daytime running lights*2 |
| 9 | 7,5 | Power mirrors, ABS (ATTS) |
| 10 | 15 | Taillight |
| 11 | 7,5 | Rear defroster relay |
| 12 | 7,5 | Daytime running unit*2 |
| 13 | 15 | Meter |
| 14 | 15 | EAT ECU (TCM), ECU (ECM), Cruise control |
| 15 | 20 | Front left power window |
| 16 | 20 | Front right power window |
| 17 | 30 | Wiper |
| 18 | 7,5 | ACC |
| 19 | — | — |
| 20 | — | — |
| 21 | 15 | Fuel pump |
| 22 | 10 | SRS |
| 23 | 15 | Spare fuse |
| 24 | 7,5 | Spare fuse |
| 25 | 10 | Spare fuse |
| 26 | 20 | Spare fuse |
| 27 | 30 | Spare fuse |
| 28 | 7,5 | Active torque transfer system *1 |
| 29 | — | — |
| *1 : On Type SH *2 : On Canadian models |
||

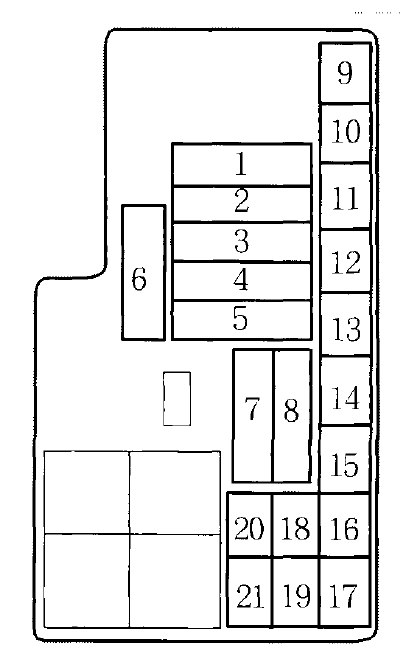

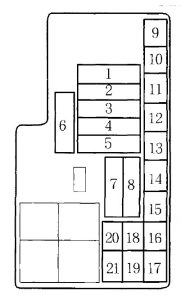

Engine compartment fuse box
| Number | Ampere rating [A] | Circuit protected |
| 1 | 40 | Mai fuse (power window) |
| 2 | 50 | Main fuse (fuse box) |
| 3 | 40 | Main fuse (heater motor) |
| 4 | 40 | Main fuse (rear defroster) |
| 5 | 50 | Main fuse (ignition switch) |
| 6 | — | — |
| 7 | 100 | Main fuse (battery) |
| 8 | 30 | Main fuse (ABS motor) |
| 9 | 20 | Cooling fan |
| 10 | 15 | Interior lights |
| 11 | 20 | Condenser fan |
| 12 | 10 | Door lock |
| 13 | 7,5 | Clock, radio |
| 14 | 20 | Small light |
| 15 | 15 | Stop, horn |
| 16 | 20 | ABS+B |
| 17 | 10 | Hazard |
| 18 | — | — |
| 19 | 7,5 | ABS unit |
| 20 | 20 | Left Headlight |
| 21 | 20 | Right Headlight |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
