Honda S2000 (2000) – fuse box diagram

19 October 2018 admin Honda, S2000 0

Honda S2000 (2000) – fuse box diagram

Year of production: 2000

Interior fuse box

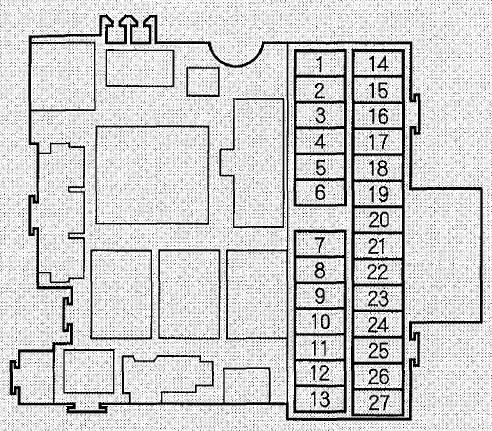

Honda S2000 – fuse box – interior
Honda S2000 – fuse box – interior
Number Ampere rating [A] Circuit protected
1 7,5 Windshield Wiper, Auto Stop Signal
2 15 Washer Motor
3 — Not used
4 — Not used
5 10 Accessory Socket
6 20 Windshield Wiper
7 7,5 Tum Light
8 15 ACG
9 7,5 Instrument Light, Back·up Lights
10 15 Ignition Coil
11 7,5 Engine Start
12 15 Fuel Pump, SRS
13 10 SRS
14 10 Daytime Running Lights*
15 10 Keyless Entry
16 7,5 Back-up
17 7,5 Interior Light
18 10 Small Lights
19 15 Radio
20 7,5 Starter Signal
21 7,5 Heater Control, Cooling Fan Relay
22 7,5 Power Mirrors
23 20 Right Power Window
24 20 Left Power Window
25 — Not used
26 — Not used
27 — Not used
*: Canadian Model

Engine compartment fuse box (main fuse box)

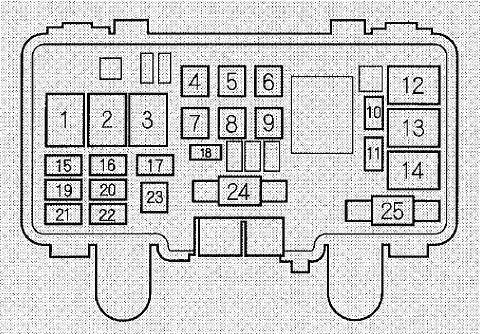

Honda S2000 – fuse box – engine compartment (main box)
Honda S2000 – fuse box – engine compartment (main box)
Number Circuit protected Ampere rating [A]
1 — Lighting 1 Relay
2 — Lighting 2 Relay
3 — Horn Relay
4 40 Power Window Motor
5 20 Right Roof Motor
6 — Not used
7 30 BackUpACC
8 20 Left Roof Motor
9 40 Heater Motor
10 20 Condenser Fan
11 — Not used
12 — Condenser Fan Relay
13 — Cooling Fan Relay
14 — Magnetic Clutch Relay
15 20 Right Headlight
16 15 ACGS
17 10 Hazard Warning Lights
18 20 Cooling Fan
19 — Not used
20 10 Stop
21 20 Left Headlight
22 20 ABS F/S
23 30 ABS Motor
24 100 Battery
25 40 IGl Main

Engine compartment fuse box (auxiliary fuse box)

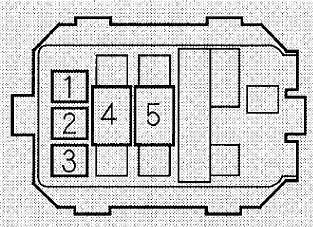

Honda S2000 – fuse box – engine compartment (auxiliary box)
Honda S2000 – fuse box – engine compartment (auxiliary box)
Number Circuit protected Ampere rating [A]
1 — Not used
2 — Not used
3 — Not used
4 70 EPS
5 60 Air Pump

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
