Hyundai Centennial (2013 – 2015) – fuse box diagram

22 October 2018 admin Centennial, Hyundai 0

Hyundai Centennial (2013 – 2015) – fuse box diagram

Year of production: 2013, 2014, 2015

Instrument panel (Driver’s side fuse panel)

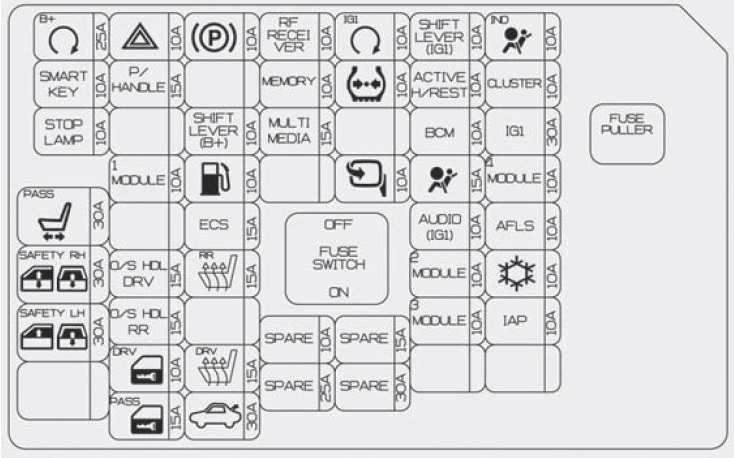

Hyundai Centennial – fuse box diagram – instrument panel (driver’s side)
Hyundai Centennial – fuse box diagram – instrument panel (driver’s side)
Symbol Fuse name Ampere rating [A] Protected component
PDM B+ 25 Smart Key Control Module
Hazard 10 Center Facia Switch
EPB 10 Electric Parking Brake Switch, Crash Pad Switch
RF Receiver 10 RF Receiver, Security Indicator
PDM IG1 10 Smart Key Control Module
Shift Lever IG1 10 Electric ATM Shift Lever, ATM Shift Lever IND.
Air Bag IND. 10 Instrument Cluster
Smart Key 10 Start/Stop Button Switch
Power Handle 15 Steering Tilt & Telescopic Module
Memory 10 Power Trunk Lid Control Module, Relax Module Driver/Passenger Door Module, Rear Door Module LH/RH, Passenger Door Lamp, Passenger Door Mood Lamp, Rear Door Lamp LH/RH, Rear Door Mood Lamp LH/RH, Instrument Cluster, Driver IMS Control Module, BCM, Analogue Clock, LCD Panel Switch, A/C Control Module, Data Link Connector
TPMS 10 Tire Pressure Monitoring Module
Active Head
Rest		 10 Active Head Rest Sensor Module
Cluster 10 Instrument Cluster, Head-Up Display
Stop Lamp 10 Stop Lamp Switch, Smart Key Control Module
Shift Lever B+ 10 Electric ATM Shift Lever, Sport Mode Switch
Multi Media 15 A/V & Navigation Head Unit, Front Monitor, Split Unit, MTS Module, Front DIS Switch, Rear Monitor LH/RH, Rear Console Switch, Rear Audio Switch
BCM 10 BCM
Module 1 10 Head-Up Display, Rain Sensor, Rear Power Seat Switch RH
Fuel Lid 10 Fuel Filler Door Switch, Front Console Switch
Folding Mirror 10 Driver/Passenger Door Module
Air Bag 15 SRS Control Module, Driver/Passenger Pre-Safe Seat Belt
Module 4 10 E/R Junction Box (FAM), Multifunction Switch, Driver/Passenger Door Module
ECS 15 ECS Control Module
Audio (IG1) 10 A/V & Navigation Head Unit, MTS Module
AFLS 10 Head Lamp LH/RH, Adaptive Front Lighting Module, Auto Head Lamp Leveling Device Module
P/Door Driver 15 Driver Power Door Latch, Driver Power Seat Switch, Driver Door Lamp, Driver Door Mood Lamp, Driver Smart Key Outside Handle
Rear LH S/Heater 15 Rear CCS Control Module LH, Rear Seat Warmer Module LH
Module 2 10 Power Trunk Lid Control Module, Electro Chromic Mirror, Electric Parking Brake Switch, A/T Console Switch
A/CON 10 A/C Control Module, AQS Sensor, Driver IMS Control Module, Relax Module, Driver/Passenger CCS Control Module, Driver/Passenger Seat Warmer Module, Rear CCS
Control, Module LH/RH, Rear Seat Warmer Module LH/RH, Alternator Resistor (Alternator, Instrument Cluster, USB Jack, Driver/Passenger CCS Control Module, Rear Console Switch, Driver/Passenger Seat Warmer Module, Rear CCS Control Module LH/RH, Rear
Seat Warmer Module LH/RH)
P/Door Rear LH 15 Rear Power Door Latch LH, Rear Door Window Curtain LH, Rear Smart Key Outside Handle LH
Module 3 10 ECS Control Module, Front Console Switch, Crash Pad Switch, Blind Spot Detection Radar LH/RH, Tire Pressure Monitoring Module, Stop Lamp Switch, Steering Tilt & Telescopic Module, LDWS Camera Module, Electric Parking Brake Module, Front/Rear Parking Assist Sensor LH/RH, Front/Rear Parking Assist Sensor LH/RH (Center)
IAP 10 Active Accel Pedal Module
Driver D/Lock 10 Driver Door Module
Driver S/Heater 15 Driver CCS Control Module, Driver Seat Warmer Module
Passenger D/Lock 15 Passenger Door Module
Power Trunk Lid 30 Power Trunk Lid Control Module
Passenger P/Seat 30 Relax Module
Safety Window RH 30 Passenger Power Window Module, Rear Power Window Module RH
Safety Window LH 30 Driver Power Window Module, Rear Power Window Module LH

Instrument panel (Passanger’s side fuse panel)

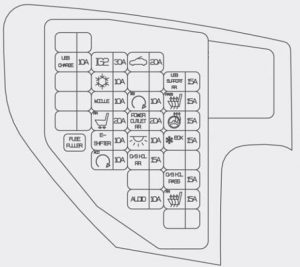

Hyundai Centennial – fuse box diagram – instrument panel (passenger’s side)
Hyundai Centennial – fuse box diagram – instrument panel (passenger’s side)
Symbol Fuse name Ampere rating [A] Protected component
USB Charge 10 USB Jack (6:4 Seat)
IG2 30 E/R Junction Box (Fuse – WIPER (IG2), WASHER)
A/CON 10 E/R Junction Box (Blower Relay), A/C Control Module, Ionizer, Active Incar Sensor, LCD Panel Switch
Module 10 Smart Junction Box LH (IG2 Power), Around View Unit, Camera Module
Rear P/Seat 20 Rear Power Seat Relay Box LH, Rear Seat Lumbar Support Control Module LH
E-Shifter 10 USB Jack (6:4 Seat), Electric ATM Shift Lever
PDM ACC 10 Smart Key Control Module, BCM
Sunroof 20 Sunroof Motor
PDM IG2 10 Smart Key Control Module, BCM
Rear P/Outlet 20 6:4 Seat – Rear Power Outlet #1/#2,
5:5 Seat – Rear Power Outlet, Rear Accessory Socket
Room Lamp 10 E/R Fuse & Relay Box (Power Outlet FRT Relay), Front Room Lamp
Rear P/Door 15 Rear Power Door Latch RH, Rear Door Window Curtain RH, Rear Smart Key Outside Handle RH
Audio 10 A/V & Navigation Head Unit, Analogue Clock, Split Unit, Front Monitor, AMP, MTS Module, Front DIS Switch, Camera Module, Around View Unit, Rear Monitor LH/RH, Rear Audio Switch, Rear Console Switch (6:4 Seat)
Rear L/Support 15 Rear Power Seat Relay Box RH, Rear Seat Lumbar Support Control Module RH
Passenger
S/Heat		 15 Passenger CCS Control Module, Passenger Seat Warmer Module
Steering
W/Heated		 15 Clock Spring (Steering Wheel Remote Control – Steering Wheel Heated Module)
Cool Box 15 Cool Box, Rear Console Swtich, Rear Seat Lumbar Support Control Module RH
Passenger
P/Door		 15 Passenger Power Door Latch, Passenger Power Seat Switch, Passenger Smart Key Outside Handle
Rear RH
S/Heat		 15 Rear CCS Control Module RH, Rear Seat Warmer Module RH

Engine compartment fuse panel (Driver’s side)

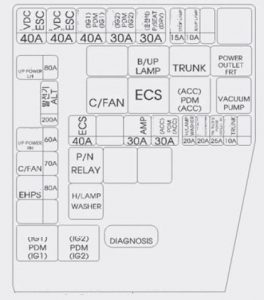

Hyundai Centennial – fuse box diagram – engine compartment (driver’s side)
Hyundai Centennial – fuse box diagram – engine compartment (driver’s side)
Description Ampere rating [A] Protected component
ALT 200 Alternator, E/R Fuse & Relay Box (Fuse – I/P POWER RH, EHPS, C/FAN, PDM (ACC), ECS, TRUNK, AMP, H/LAMP WASHER, VACUUM PUMP, POWER OUTLET FRT)
I/P POWER LH 80 Smart Junction Box LH (Fuse – F1/F2/F3/F4/F8/F9/F12/F15/F17/F18/F22/F23/F29/F32/F33/F36/F40/F41/
F44/F45/F46/F47/F48, Leak Current Autocut Device)
I/P POWER RH 60 I/P Junction Box RH (Fuse – F2/F9/F12/F17/F20/F21/F25/F26)
C/FAN 70 C/FAN Relay
EHPS 80 EHPS Module
ESC 1 40 ESC Module, Multipurpose Check Connector
ESC 2 40 ESC Module, Multipurpose Check Connector
PDM (IG1) 40 PDM (IG1) Relay
PDM (IG2) 30 PDM (IG2) Relay
P/SEAT (DRV) 30 Driver IMS Control Module, Driver Lumbar Support Valve
ECS 40 ECS Relay
AMP 30 AMP
PDM (ACC) 30 PDM (ACC) Relay
STOP LAMP 15 Stop Signal Electronic Module
B/UP LAMP 10 B/UP LAMP Relay
H/LAMP WASHER 20 H/LAMP WASHER Relay
VACUUM PUMP 20 VACUUM PUMP Relay
POWER OUTLET FRT 25 POWER OUTLET FRT Relay
TRUNK 10 TRUNK Relay

Engine compartment fuse panel (Passenger’s side)

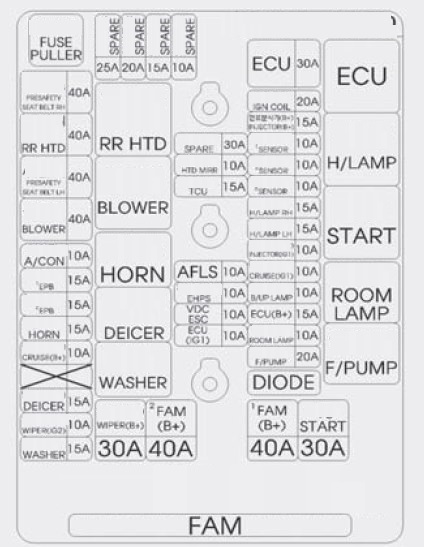

Hyundai Centennial – fuse box diagram – engine compartment (passenger’s side)
Hyundai Centennial – fuse box diagram – engine compartment (passenger’s side)
Description Ampere rating [A] Protected component
WIPER (B+) 30 Electronic Control Wiper Module
FAM 2 (B+) 40 FAM
FAM 1 (B+) 40 FAM
START 30 Start Relay
WASHER 15 Washer Relay
WIPER (IG2) 10 Electronic Control Wiper Module
DEICER 15 Deicer Relay
CRUISE (B+) 10 H/Lamp Relay, Smart Cruise Control Module
HORN 15 Horn Relay
EPB 2 15 Electric Parking Brake Module
EPB 1 15 Electric Parking Brake Module
A/CON 10 A/C Control Module
BLOWER 40 Blower Relay
PRESAFETY SEAT BELT LH 40 Driver Pre-Safe Seat Belt
RR HTD 40 RR HTD Relay
PRESAFETY SEAT BELT RH 40 Passenger Pre-Safe Seat Belt
ECU (IG1) 10 ECM, Alternator (G8BE)
ESC 10 ESC Module, E/R Fuse & Relay Box (Multipurpose Check Connector)
EHPS 10 EHPS Module
AFLS 10 Head Lamp LH/RH
TCU 15 TCM, Transmission Range Switch, Transmission Park Position Sensor & Switch
HTD MIRR 10 Driver/Passenger Power Outside Mirror
F/PUMP 20 F/Pump Relay
ROOM LAMP 10 Room Lamp Relay
ECU (B+) 15 ECM/TCM, Injector Drive Box (G6DJ)
B/UP LAMP 10 Alternator (G6DJ), E/R Fuse & Relay Box (Vacuum Pump Relay (G6DJ), B/Up Lamp Relay, P/N Relay), Steering Angle Sensor, Brake Vacuum Switch (G6DJ)
CRUISE (IG1) 10 Smart Cruise Control Module
INJECTOR (IG1) 10 Injector Drive Box
H/LAMP LH 15 Head Lamp LH
H/LAMP RH 15 Head Lamp RH
SENSOR 3 10 ECM, F/Pump Relay, Camshaft Position Sensor (BANK1/BANK2) (Intake/Exhaust) (G8BE)
SENSOR 2 10 ECM (G6DJ), Variable Intake Solenoid Valve (G6DJ), Canister Purge Solenoid Valve (G6DJ), Oil Control Valve #1 ~ #4 E/R Fuse & Relay Box (C/Fan Relay), Purge Control Solenoid Valve (G8BE)
SENSOR 1 10 ECM, Oxygen Sensor #1 ~ #4
INJECTOR (B+) 15 Injector Drive Box
IGN COIL 20 Condenser #1/#2, Ignition Coil #1 ~ #6 (G6DJ), Ignition Coil #1 ~ #8 (G8BE)
ECU 30 ECU Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
