Hyundai Coupe (2003) – fuse box diagram
Year of production: 2003

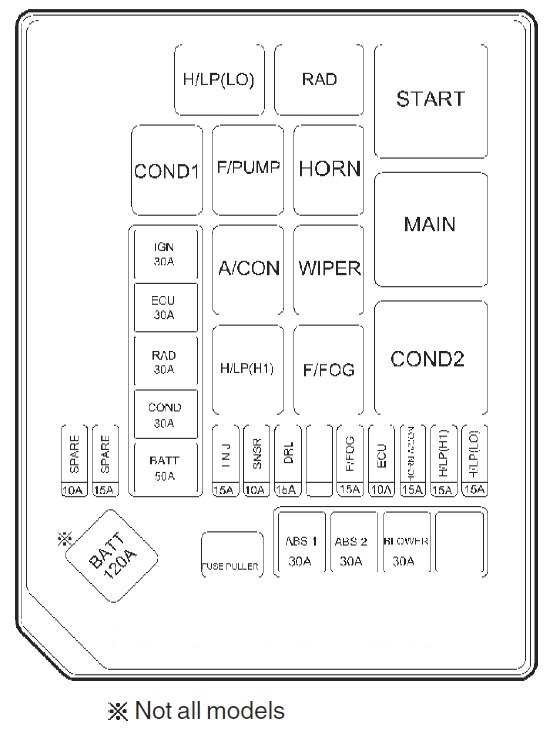

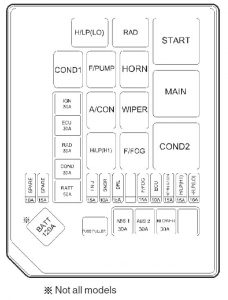

Fuse panel located in the engine compartment
| Description | Ampere rating [A] | Protected component |
| BATT | 120 | Generator |
| BATT | 50 | Generator |
| COND | 30 | Condenser Fan |
| RAD | 30 | Radiator Fan |
| ECU | 30 | Engine Control, ECM. ATM Control |
| IGN | 30 | Ignition, Start Relay |
| ABS 1 | 30 | ABS |
| ABS 2 | 30 | ABS |
| BLOWER | 30 | Blower |
| INJ | 15 | Injector |
| SNSR | 10 | O2 Sensor, ECM |
| DRL | 15 | DRL |
| F/FOG | 15 | Front fog Light |
| ECU | 10 | TCM, ECM |
| HORN,A/CON | 15 | Horn. A/conditioner |
| H/LP (H1) | 15 | Head Light (High) |
| H/LP (LO) | 15 | Head Light (LOW) |

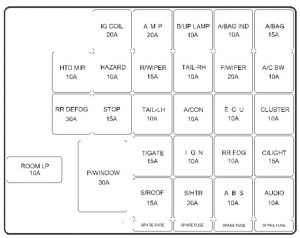

Fuse panel located in the inner panel
| Fuse | Ampere rating [A] | Protected companent |
| IG COIL | 20 | Ignition Coil, ECM |
| AMP | 20 | AMP. Multi Gauge Unit |
| B/UP LAMP | 10 | B/Up Lamp |
| A/BAG IND | 10 | Air Bag Indicator |
| A/BAG | 15 | Air Bag |
| HTD MIR | 10 | Outside Mirror Defroster |
| HAZARD | 10 | Hazard Warning Light |
| R/WIPER | 15 | Rear Window Wiper |
| TAIL-RH | 10 | Taillight |
| F/WIPER | 20 | Front Window Wiper |
| A/C SW | 10 | A/Conditioner |
| RR DEFOG | 30 | Rear Window Defroster |
| STOP | 15 | Stop Light |
| TAIL-LH | 10 | Tail light |
| A/CON | 10 | A/Conditioner |
| ECU | 10 | ECM, Multi Gauge Unit, TCM |
| CLUSTER | 10 | Cluster |
| ROOM LP | 10 | Map Light, Clock, Audio |
| P/WINDOW | 30 | Power Window |
| T/GATE | 15 | Hatchback door Open |
| IGN | 10 | A/Con, A.Q.S Sensor |
| RR FOG | 10 | Rear Fog |
| C/LIGHT | 15 | C/Lighter, Outside Mirror |
| S/ROOF | 15 | Sunroof |
| S/HTR | 20 | Seat Warmer |
| ABS | 10 | ABS. TCS |
| AUDIO | 10 | Audio, Clock |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
