Hyundai Coupe (2006 – 2008) – fuse box diagram
Year of production: 2006, 2007, 2008
Fuse panel located in the engine compartment
| Description | Ampere rating [A] | Protected component |
| BATT | 120 | Generator(1.6L/2.0L) |
| BATT | 50 | BCM BOX(Tail lamp relay,Power connector,Fuse(2,7,12,13,19,20,24)) |
| COND | 30 | Condenser fan relay |
| RAD | 30 | Radiator fan relay |
| ECU | 30 | Engine control relay, Fuel pump relay, A/T control relay, Generator, ECM (1.6L/2.7L), PCM(2.0L) |
| IGN | 30 | Ignition switch, Start relay |
| ABS 1 | 30 | ABS/ESP control module, ESP Air bleeding connector |
| ABS 2 | 30 | ABS/ESP control module, ESP Air bleeding connector |
| BLOWER | 30 | Blower relay |
| INJ | 15 | Injector |
| SNSR | 10 | Oxygen sensor, Camshaft position sensor, Idle speed control actuator |
| DRL | 15 | DRL control module |
| F/FOG | 15 | Front fog lamp relay |
| ECU | 10 | TCM(2.7L), ECM(2.7L/1.6L) |
| HORN, A/CON | 15 | Horn relay, A/C relay |
| H/LP (H1) | 15 | Head lamp relay (High) |
| H/LP (LO) | 15 | Head lamp relay (Low) |

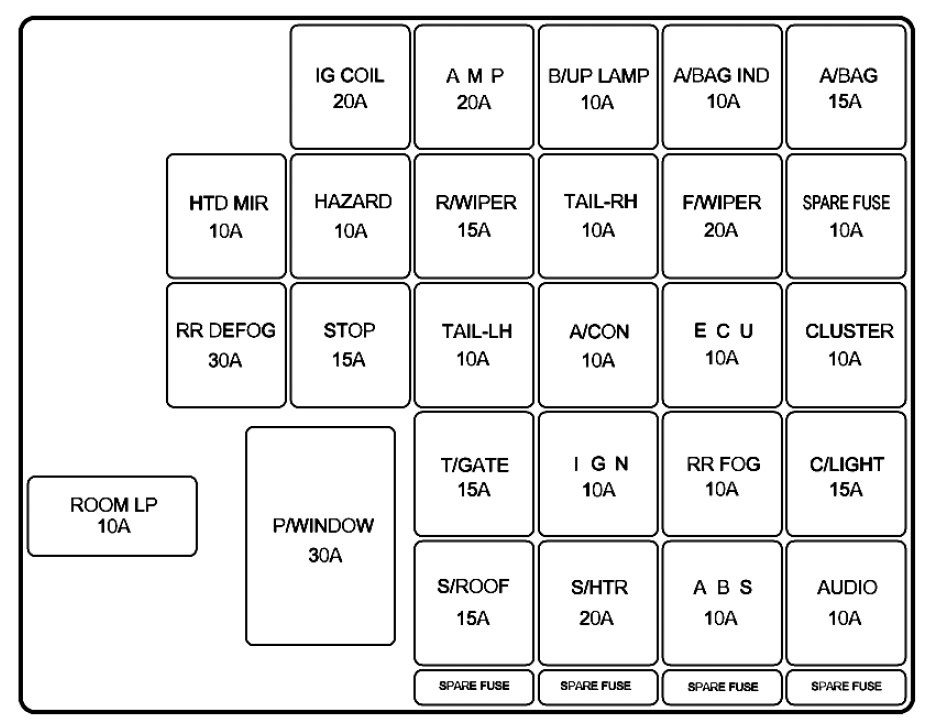

Fuse panel located in the inner panel
| Fuse | Ampere rating [A] | Protected component |
| IG COIL | 20 | Ignition coil(1.6L/2.7L), Electronic chrome mirror |
| AMP | 20 | AMP |
| B/UP LAMP | 10 | Back-up lamp switch, Transaxle range switch, Cruise control module, Stop lamp switch |
| A/BAG IND | 10 | Instrument cluster (A/BAG IND.) |
| A/BAG | 15 | SRS control module |
| HTD MIR | 10 | Mirror defogger |
| HAZARD | 10 | Hazard relay |
| R/WIPER | 15 | Rear wiper motor, Rear intermittent wiper relay |
| TAIL-RH | 10 | Right tail lamps, Glove box lamp |
| F/WIPER | 20 | Front wiper motor, Front wiper relay |
| RR DEFOG | 30 | Defogger relay |
| STOP | 15 | Stop lamp switch, Burglar alarm horn relay, Folding/Unfolding relay |
| TAIL-LH | 10 | Left tail lamps |
| A/CON | 10 | A/C control module, Blower relay |
| ECU | 10 | ECM, Multi gauge unit, TCM, Vehicle speed sensor |
| CLUSTER | 10 | Instrument cluster (Power), Per-excitation resister, DRL Control module, Generator |
| ROOM LP | 10 | Room lamp, Clock, Audio, Data link connector, Multi gauge unit |
| P/WINDOW | 30 | Power window relay |
| T/GATE | 15 | Trunk lid switch |
| IGN | 10 | AQS sensor, Head lamp relay, DRL Control module |
| RR FOG | 10 | Rear fog lamp |
| C/LIGHT | 15 | Cigarette lighter, Outside mirror switch |
| S/ROOF | 15 | Sunroof, Power door lock/Unlock relay |
| S/HTR | 20 | Seat warmer |
| ABS | 10 | ESP/ABS control module |
| AUDIO | 10 | Audio, Digital clock |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
