Hyundai Elantra (2019) – fuse box diagram

Hyundai Elantra (2019) – fuse box diagram

Year of production: 2019

Instrument panel

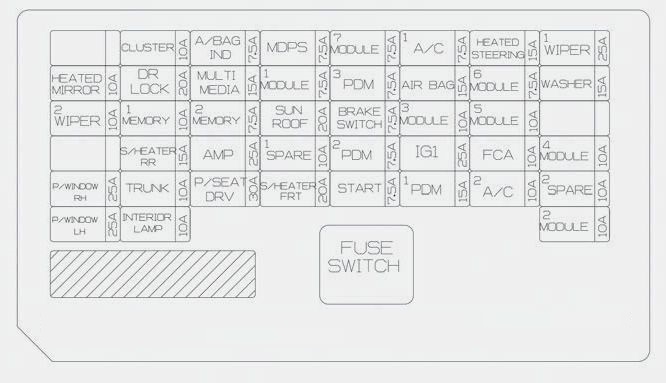

Hyundai Elantra - fuse box diagram - instrument panel
Hyundai Elantra – fuse box diagram – instrument panel
Fuse name [A] Protected component
HEATED MIRROR 10 Driver/Passenger Power Outside Mirror, A/C Control Module
WIPER 2 10 PCM, BCM
P/WINDOW RH 25 Power Window RH Relay
P/WINDOW LH 25 Power Window LH Relay, Driver Safety Power Window Module
CLUSTER 10 CLUSTER
DR LOCK 20 Door Lock/Unlock Relay, E/R Junction Block (Two Turn Unlock Relay)
MEMORY 1 10 Driver/Passenger Door Module, Driver IMS Module, A/C Control Module, Instrument Cluster, Electro Chromic Mirror, Data Link Connector, Blind Spot Detection Radar LH/RH, Digital Clock
S/HEATER RR 15 Rear Seat Warmer Control Module
TRUNK 10 Trunk Relay
INTERIOR LAMP 10 Room Lamp, Front Vanity Lamp LH/RH, Overhead Console Lamp, Ignition Key ILL. & Door Warning Switch, Trunk Room Lamp
A/BAG IND 7,5 Instrument Cluster, A/C Control Module
MULTI MEDIA 15 CD Player, Audio, A/V & Navigation Head Unit
MEMORY 2 7,5
AMP 25 AMP
P/SEAT DRV 30 Driver Seat Manual Switch, Driver IMS Module
MDPS 7,5 MDPS Unit
MODULE 1 7,5 Key Interlock, Driver/Passenger Smart Key Outside Handle, Driver/Passenger Door Module, BCM, Driver/Passenger Outside Mirror Switch/Motor
SUNROOF 20 Sunroof Moto
SPARE 1 10
S/HEATER FRT 20 Front Seat Warmer Control Module
MODULE 7 7,5 Front Seat Warmer Control Module, Rear Seat Warmer Control Module, Sunroof Motor, BCM
PDM 3 7,5 Smart Key Control Module, Immobilizer Module
BRAKE SWITCH 7,5 Stop Lamp Switch, Smart Key Control Module
PDM 2 7,5 Smart Key Control Module, Immobilizer Module
START 7,5 W/O Smart Key : Transmission Range Switch, Ignition Lock Switch With Smart Key :Transmission Range Switch, PCM
A/C 7,5 Ionizer, A/C Control Module, E/R Junction Block (A/Con Relay, Blower Relay), Gasoline PTC Relay
AIR BAG 15 SRS Control Module, Passenger Occupant Detection Sensor
MODULE 3 10 Stop Lamp Switch, BCM, Sport Mode Switch, Driver/Passenger Door Module
IG1 25 PCB Block (Fuse : ABS3, ECU5, TCU2)
PDM 1 15 Smart Key Control Module
HEATED STEERING 15 BCM
MODULE 6 7,5 BCM, Smart Key Control Module
MODULE 5 10 Crash Pad Switch, Electro Chromic Mirror, A/T Shift Lever Indicator, A/V & Navigation Head Unit, Audio, A/C Control Module, Console Switch LH/RH, Head Lamp Leveling Device LH/RH, Front Seat Warmer Control Module, Rear Seat Warmer Control Module, Driver IMS Module
FCA 10 FCA Module
A/CON 2 10 E/R Junction Block (Blower Relay), Blower Motor, Blower Resistor, A/C Control Module
WIPER 1 25 Wiper Motor, PCB Block (Front Wiper (Low) Relay
WASHER 15 Multifunction Switch
MODULE 4 10 Lane keeping Assist System, Parking Assist Buzzer, BCM
SPARE 2 10
MODULE 2 10 E/R Junction Block (Power Outlet Relay), USB Charging Connector, Smart Key Control Module, BCM, Audio, A/V & Navigation Head Unit, CD Player, Power Outside Mirror Switch, AMP, Driver Door Module, Digital Clock, Console Switch

Engine compartment

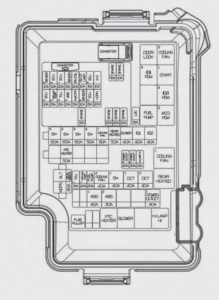

Hyundai Elantra - fuse box diagram - engine compartment
Hyundai Elantra – fuse box diagram – engine compartment
Fuse name [A] Protected component
MULTI FUSE-1 MAIN 180 Fuse : ABS1, ABS2, POWER OUTLET
MDPS 80 MDPS Unit
MULTI FUSE-2 B+5 60 PCB Block (Fuse : ECU3, ECU4, HORN, A/C COMP, ENGINE CONTROL RELAY)
B+2 60 Smart Junction Block (Fuse : S/HEATER FRT, ARISU
B+3 60 Smart Junction Block (Fuse : ARISU, IPS)
B+4 50 Smart Junction Block (Fuse : S/HEATER RR, P/WINDOW LH, P/WINDOW RH, TRUNK, SUNROOF, AMP, P/SEAT DRV)
COOLING FAN 1 60
REAR HEATED 50 Rear Heated Relay
BLOWER 40 Blower Relay
IG1 40 Ignition Switch, E/R Junction Block (PDM #2, #3 (ACC/IG1) Relay)
IG2 40 Ignition Switch, E/R Junction Block (PDM #4 (IG2) Relay, START Relay)
FUSE B/UP LAMP 10 Electro Chromic Mirror, Rear Combination Lamp (IN) LH/RH, Smart Junction Block (IPS Control Module)
POWER OUTLET 3 20 Cigarette Lighter
POWER OUTLET 2 20 Front Power Outlet
H/LAMP HI 10 BI-FUNC H/LP RLY (coil)
TCU 1 15
VACUUM PUMP 1 20
A/CON 10 A/Con Relay
COOLING FAN 2 40 Cooling Fan 1/2 Relay
B+1 40 Smart Junction Block (Leak Current Autocut Device, Fuse : BRAKE SWITCH, MODULE 1, DR LOCK, PDM 1, PDM 2)
DCT1 40
DCT2 40
S/FUEL PUPMP 15
ABS1 40 ESC Module, Multipurpose Check Connector
ABS2 30 ESC Module, Multipurpose Check Connector
POWER OUTLET 1 40 Power Outlet Relay

Fuse name [A] Protected component
ECU 5 10 PCM
VACUUM PUMP 15
SPARE 20
ABS 3 10 ESC Module, Multipurpose Check Connector
TCU 2 15 Transmission Range Switch, E/R Junction Block (Fuse : B/UP LAMP
ECU 4 15 PCM
ECU 3 15 PCM
FUEL PUMP 20 Fuel Pump Relay
SENAOR 2 10 Canister Close Valve, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, E/R Junction Block (Cooling Fan 1/2 Relay)
ECU2 10
ECU1 20 PCM
INJECTOR 15 Injector #1/#2/#3/#4
SENSOR 1 15 Oxygen Sensor (UP/DOWN)
IGN COIL 20 Ignition Coil #1/#2/#3/#4
SENSOR 3 10 Fuel Pump Relay
HORN 20 Horn Relay
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
