Hyundai Elantra GT (2016 – 2017) – fuse box diagram

Hyundai Elantra GT (2016 – 2017) – fuse box diagram

Year of production: 2016, 2017

Instrument panel

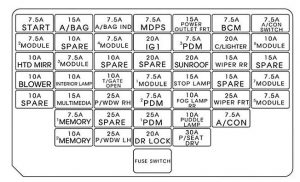

Hyundai Elantra GT – fuse box diagram – instrument panel
Hyundai Elantra GT – fuse box diagram – instrument panel
Description Fuse rating Protected component
C/LIGHTER 20A Console Cigar Light, Rear Power Outlet
1 MODULE 7.5A Sport Mode Switch
4 MODULE 7.5A A/ C Control Module, Head Lamp Leveling Device Actuator LH/RH, Fuel Filter Warning Sensor(D4FD), Rear Parking Assist System
3 MODULE 7.5A Instrument Cluster, BCM, Tire Pressure Monitoring Module, Audio, Driver/Passenger Seat Warmer Module, ATM shift lever Ind
POWER OUTLET FRT 15A Front Power Outlet
HTD MIRR 10A Driver/Passenger Power Outside Mirror, A/C Control Module, ECU
WIPER FRT 25A ICM Relay Box (Rain Sensor Relay), Multifunction Switch, E/R Fuse & Relay Box (RLY. 7) Front Wiper Motor
A/CON 7.5A A/C Control Module, E/R Fuse & Relay Box (RLY. 4)
P/WDW LH 25A P/WDW LH Relay, Driver Safety Power Window Module (LHD)
T/GATE OPEN 10A Tail Gate, Rear Camera Open Actuator
P/SEAT DRV 30A Driver Manual Switch
2 MODULE 7.5A ICM Relay Box, Rear Camera Module, Electro Chromic Mirror
WIPER RR 15A Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch
STOP LAMP 15A Stop Lamp Switch
P/WDW RH 25A P/WDW RH Relay, Driver Safety Power Window Module (RHD)
2 PDM 7.5A Smart Key Control Module, Start/Stop Button Switch, Ultrasonic Instruction Protection Sensor
5 MODULE 7.5A EMS BOX (Head Lamp Washer Relay), Ionizer Unit, Panorama Sunroof, DSL BOX (PTC Relay), E/R Fuse & Relay BOX(RLY.), Driver/Passenger Seat Warmer Module
IG1 20A E/R Fuse & Relay Box (Fuse – F)
6 MODULE 10A Outside Mirror Switch, Audio, Navigation Head Unit, Digital Clock
MDPS 7.5A EPS Control Module
DR LOCK 20A Door Lock/Unlock Relay, ICM Relay BOX (Dead Lock Relay), Driver/Passenger Door Lock Actuator, Fuel filler actuator, Door Lock Actuator LH/RH
INTERIOR LAMP 10A Vanity Lamp LH/RH, Overhead Console Lamp, Room Lamp, Luggage Lamp, DR Warning Switch
MULTI MEDIA 15A Audio, Navigation Head Unit
A/BAG 15A SRS Control Module
1 MEMORY 7.5A Instrument Cluster
A/BAG IND 7.5A Instrument Cluster
3 PDM 7.5A Smart Key Control Module, Ultrasonic instrusion Protection Sensor
2 MEMORY 10A Outside Mirror Switch, Tire Pressure Monitoring Module, BCM, Auto Light & Photo Sensor, OBD, Digital Clock, A/C Control Module
1 PDM 25A Smart Key Control Module
START 7.5A W/O Button Start: E/R Fuse & Relay Box (RLY.) Ignition Lock Switch, Transaxle Range Switch With Button Start: ECM/PCM, Transaxle Range Switch
SUNROOF 20A Panorama Sunroof
BCM 7.5A BCM, Smart Key Control Module
A/CON SWITCH 7.5A A/C Control Module
7 MODULE 7.5A BCM, Smart Key Control Module
FOG LAMP RR 10A Rear Fog Lamp
PUDDLE LAMP 10A Driver/Passenger Power Outside Mirror

Engine compartment fuse panel

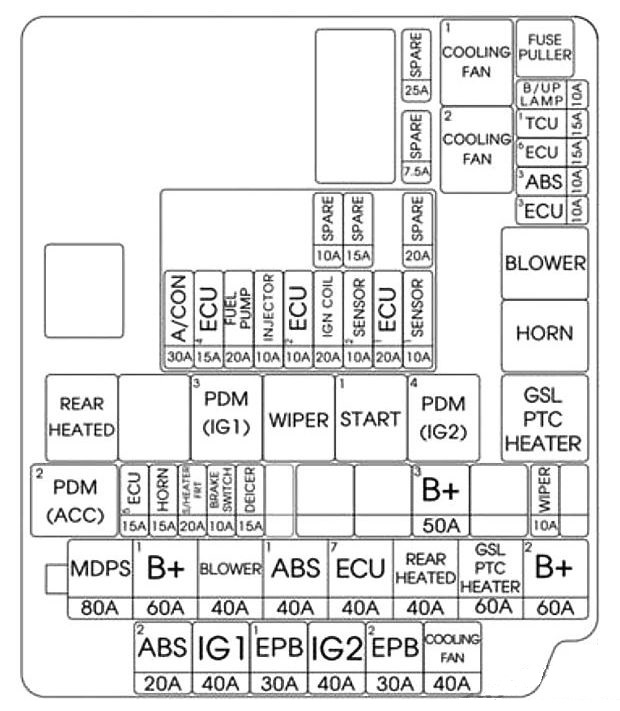

Hyundai Elantra GT – fuse box diagram – engine compartment
Hyundai Elantra GT – fuse box diagram – engine compartment
Description Fuse rating Protected component
MULTI FUSE
MDPS 80A EPS Control Module
1B+ 60A I/P Junction Box (IPS 0 (4CH), IPS 1 (4CH), IPS 2 (2CH), Fuse – F13/F14/F19/F20/F21 /F26/ F36)
1 ABS 40A ESC Control Module, Multipurpose Check Connector
BLOWER 40A RLY. 4 (Blower Relay)
2B+ 60A I/P Junction Box (IPS 3 (4CH), IPS 4 (4CH), Fuse – F2/F7/F9/F15)
GSLPTC HEATER 60A RLY. 12 (GASOLINE PTC Relay)
FUSE
COOLING FAN 40A RLY 1 (C/FAN LO Relay), RLY 2 (C/FAN HI Relay)
2 ABS 20A ESC Control Module, Multipurpose Check Connector
IG2 40A RLY 9 (Start Relay), Ignition Switch (W/O Button Start), RLY 6 (PDM 4 (IG2) Relay, With Button Start)
IG1 40A W/O Button Start: Ignition Switch,
With Button Start: RLY 8 (PDM 2 (ACC) Relay)/RLY. 10 (PDM 3 (IG1) Relay
DEICER 15A ICM Relay Box (Front Deicer Relay)
3B+ 50A I/P Junction Box (Leak Current Autocut Device, Fuse – F18/F25/F30/F34/F38)
BRAKE SWITCH 10A Smart Key Control Module, Stop Signal Relay
S/HEATER FRT 20A Driver/Passenger Seat Warmer Module
WIPER 10A PCM/ECM
HORN 15A RLY. 5 (Horn Relay), ICM Relay Box (B/A Horn Relay)
1 TCU 15A A/T – TCM (D4FD), Transaxle Range Switch
6 ECU 15A RLY. 9 (D4FD, Start Relay), ECM/PCM
3 ABS 10A ESC Control Module, Multipurpose Check Connector
3 ECU 10A ECM/PCM, Air Flow Sensor, Stop Lamp Switch
B/UP LAMP 10A M/T – Back-Up Lamp Switch, A/T – Rear Combination Lamp (IN) LH/RH, Rear Curtain Module, Navigation Head Unit, Electro Chromic Mirror, IPS Control Module
1 ECU 20A G4FD/D4FD : ECM
G4NA/G4NC : PCM (A IT), ECM (M/T)
IGN COIL 20A G4NA : Ignition Coil #1/#2/#3/#4, Condenser
2 SENSOR 10A G4FD : Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve, Purge Control Solenoid Valve
G4NA/G4NC : Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve, Purge Control Solenoid Valve
D4FD : Camshaft Position Sensor, EGR Cooling Bypass Solenoid Valve, Diesel Box (Glow Relay)
1 SENSOR 10A G4FD : Oil Control Valve #1/ #2, Oil Level Sensor, E/R Fuse & Relay Box (RLY. 1)
G4NA/G4NC : Oil Control Valve #1/ #2, Camshaft Position Sensor (Intake/Exhaust), E/R Fuse & Relay Box (RLY. 1)
D4FD : E/R Fuse & Relay Box (RLY 1), Diesel Box (PTC Heater Relay#1), Lambda Sensor, VGT Control Solenoid Valve
2 ECU 10A G4FD : ECM
G4NA : Fuel Pump Relay
G4NC : Fuel Pump Relay, PCM (A/T), ECM (M/T)
D4FD : Oil Level Sensor, Fuel Pressure Regulating Valve
INJECTOR 10A G4NA – Injector #1/#2/#3/#4
4 ECU 15A G4NA/G4NC : PCM (ATT), ECM (M/T)
FUEL PUMP 20A EMS Box (Fuel Pump Relay)
A/CON 30A EMS Box (Air Conditioner)
EMS 40A EMS Box

Assignment of the relay

Description Protected component Type
1 COOLING FAN C/FAN LO RELAY PLUG MICRO
2 COOLING FAN C/FAN HI RELAY PLUG MICRO
BLOWER BLOWER RELAY PLUG MICRO
HORN HORN RELAY PLUG MICRO
4 PDM (IG2) PDM 4 (IG2) RELAY PLUG MICRO
WIPER FRONT WIPER RELAY PLUG MICRO
1 PDM (ACC) PDM 1 (ACC) RELAY PLUG MICRO
START 1 START RELAY PLUG MICRO
3 PDM (IG1) PDM 3 (IG1) RELAY PLUG MICRO
REAR HEATED RR HTD RELAY PLUG MICRO
GSL PTC HEATER PTC Heater/Fuel Filter PLUG MINI

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
