Hyundai Elantra GT (2018) – fuse box diagram

Hyundai Elantra GT (2018) – fuse box diagram

Year of production: 2018

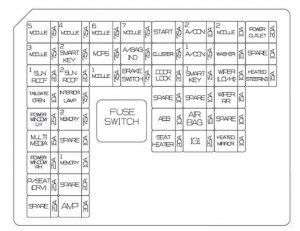

Instrument panel

Hyundai Elantra GT – fuse box diagram – instrument panel
Hyundai Elantra GT – fuse box diagram – instrument panel
Fuse Name Fuse Rating Protected Component
MODULE 5 7.5A Crash Pad Switch, Electro Chromic Mirror, A/V & Navigation Head Unit, A/C Control Module, A/T Shift Lever Indicator, Console Switch LH, Head Lamp Leveling Device LH/RH, Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
MODULE 3 7.5A BCM, Sport Mode Switch
SUNROOF 1 20A Panorama Sunroof
TAIIGATE OPEN 10A Tail Gate Relay
P/WDW (LH) 25A Power Window LH Relay, Driver/Passenger Safety Window Module
MULTIMEDIA 15A A/V & Navigation Head Unit
P/WDW (RH) 25A Power Window RH Relay
P/SEAT DRV 25A Driver Seat Manual Switch
MODULE 4 7.5A Lane Keeping Assist Module, Blind Spot Detection Radar LH/RH, Stop Lamp Switch, Electric Parking Brake Switch, Autonomous Emergency Braking Module
SMART KEY 2 7.5A Smart Key Control Module, Immobilizer Module
SUNROOF 2 20A Panorama Sunroof
INTERIOR LAMP 7.5A Wireless Charger, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Personal Lamp LH/RH
MEMORY 2 7.5A BCM
MEMORY 1 10A A/C Control Module, Instrument Cluster, Auto Light & Photo Sensor, Electro Chromic Mirror, ICM Relay Box (Outside Mirror Folding/Unfolding Relay)
AMP 30A AMP
MODULE 6 7.5A Smart Key Control Module, BCM
MDPS 7.5A MDPS Unit
MODULE 1 7.5A Hazard Switch, Center Door Lock Switch, Ignition Key Interlock Switch, Driver/Passenger Smart Key Outside Handle, Data Link Connector
MODULE 7 7.5A Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
A/BAG IND 7.5A Instrument Cluster, Center Door Lock Switch
BRAKE SWITCH 7.5A Smart Key Control Module, Stop Lamp Switch
START 7.5A Without Smart Key : Ignition Key Switch With Smart Key : Smart Key Control Module
CLUSTER 7.5A Instrument Cluster
DR LOCK 20A Door Lock/Unlock Relay, ICM Relay Box (T/Turn Unlock Relay)
AEB 10A Autonomous Emergency Braking Module
S/HEATER 20A Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
A/CON 7.5A A/C Control Module, Cluster Ionizer, E/R Junction Block (Blower Relay)
SMART KEY 1 15A Smart Key Control Module, Immobilizer Module
A/BAG 15A SRS Control Module
IG1 25A PCB Block (ABS3, ECU5, SENSOR4, TCU2)
MODULE 2 10A Wireless Charger, Smart Key Control Module, BCM, A/V & Navigation Head Unit, Power Outside Mirror Switch, E/R Junction Block (Power Outlet Relay), AMP
WASHER 15A Multifunction Switch
WIPER (LO/HI) 10A ECM/PCM, BCM
WIPER (RR) 15A Rear Wiper Relay, Rear Wiper Motor
HEATED MIRROR 10A Driver/Passenger Power Outside Mirror, A/C Control Module, ECM/PCM
POWER OUTLET 20A Rear Power Outlet #2
HEATED STEERING 15A BCM

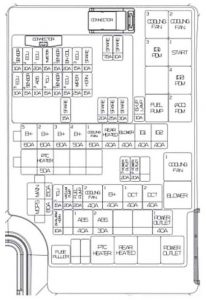

Engine compartment fuse panel

Hyundai Elantra GT – fuse box diagram – engine compartment
Hyundai Elantra GT – fuse box diagram – engine compartment
Fuse Name Fuse Rating Protected Component
MAIN 150A E/R Junction Block (Fuse – ABS1, ABS2, B/Alarm, Power Outlet – !)
MDPS 1 80A MDPS Unit, Battery
B+5 60A PCB Block (Fuse – ECU4, ECU3, Horn, Wiper, Engine Control Relay)
B+2 60A IGPM (Fuse – S/Heater, IPSO, IPS1, IPS2)
B+3 60A IGPM (IPS3, IPS4, IPS5, IPS6, IPS7, IPS8)
B+4 60A IGPM (Fuse – AMP, P/WDW LH, P/WDW RH, Tail Gate Open, Sunroofl, Sunroof2, P/Seat (DRV))
COOLING FAN 1 60A E/R Junction Block (Cooling Fan1 Relay)
REAR HEATED 40A E/R Junction Block (Rear Heated Relay)
BLOWER 40A E/R Junction Block (Blower Relay)
IG1 40A Ignition Switch, E/R Junction Block (ACC Relay, IG1 Relay)
IG2 40A Ignition Switch, E/R Junction Block (IG2 Relay)
PTC HEATER 1 50A PTC Heaterl
POWER OUTLET 3 20A Rear Power Outlet 1
POWER OUTLET 2 20A Front Power Outlet
TCU1 15A TCM
VACUUM PUMP 20A Vacuum Pump
FUEL PUMP 20A E/R Junction Block (Fuel Pump Relay)
COOLING FAN 2 40A E/R Juntion Block (Cooling Fan2 Relay, Cooling Fan3 Relay)
B+1 40A IGPM (Fuse – Door Lock, Smart Key1, Module*!, Brake Switch, Reak Current Autocut Device)
DOT 1 40A TCM
DOT 2 40A TCM
B/ALARM HORN 10A ICM Relay Box (Burglar Alarm Horn Relay)
ABS 1 40A Multipurpose Check Connector, ESC Control Module
ABS 2 30A Multipurpose Check Connector, ESC Control Module
POWER OUTLET 1 40A E/R Junction Block (Power Outlet Relay)
B/UP LAMP 10A Back-Up Lamp Switch
GAMMA 1.6LT-GDI
SENS0R2 10A Waste Gate Valve, Purge Control Solenoid Valve, Oil Control Valve #1/#2, RCV Control Solenoid Valve, E/R Junction Block (Cooling Fan2 Relay, Cooling Fan1 Relay)
ECU2 10A ECM
ECU1 20A ECM
SENS0R1 15A Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL 20A Ignition Coil #1/#2/#3/#4
ECU3 15A ECM
ECU5 10A ECM
SENSOR4 15A Vaccum Pump
ABS3 10A ESC Control Module, Multipurpose Check Connector, Clutch Master Cylinder
TCU2 15A E/R Junction Block (Fuse – B/Up Lamp), Transaxle Range Switch, TCM
SENSOR3 10A E/R Junction Block (Fuel Pump Relay)
ECU4 15A ECM
WIPER 25A Wiper Relay
HORN 15A Horn Relay
NU 2.0L GDI
SENS0R2 10A Purge Control Solenoid Valve, Oil Control Valve #1/#2, Variable Intake Solenoid Valve, E/R Junction Block (Cooling Fan2 Relay, Cooling Fan3 Relay)
ECU2 10A ECM/PCM
ECU1 20A ECM/PCM
SENS0R1 15A Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL 20A Ignition Coil #1/#2/#3/#4, Condenser
ECU3 15A ECM/PCM
ECU5 10A ECM/PCM
ABS3 10A ABS/ESC Control Module, Multipurpose Check Connector
ABS3 15A E/R Junction Block (Fuse – B/Up Lamp), Transaxle Range Switch, TCM
SENSOR3 10A E/R Junction Block (Fuel Pump Relay)
WIPER 25A Wiper Relay
HORN 15A Horn Relay

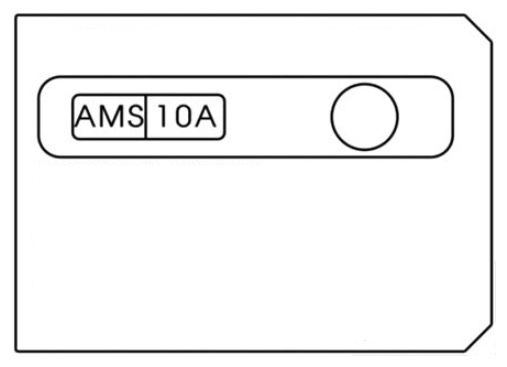

Battery terminal cover

Hyundai Elantra GT – fuse box diagram – battery terminal cover
Hyundai Elantra GT – fuse box diagram – battery terminal cover

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
