Hyundai Getz (2002 – 2005) – fuse box diagram
Year of production: 2002, 2003, 2004, 2005

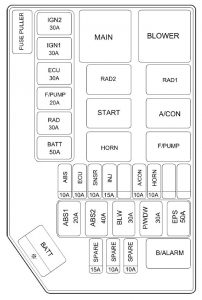

Engine compartment
engine compartment
| Fuse name | Ampere rating [A] | Protected component |
| IGN 2 | 30 | Ignition Switch |
| IGN 1 | 30 | Ignition Switch, Start Relay |
| ECU | 30 | Fuel pump, Alternator, ECM |
| F/PUMP | 20 | Auto Fuel Cut Switch |
| RAD | 30 | Radiator Fan |
| BATT | 50 | Headlight, Defogger Relay |
| ABS | 10 | ABS |
| ECU | 10 | ECM |
| SNSR | 10 | A/CON, Fuel Pump |
| INJ | 15 | Injector |
| A/CON | 10 | A/Conditioner |
| HORN | 10 | Horn |
| ABS1 | 20 | ABS |
| ABS2 | 40 | ABS |
| BLW | 30 | Blower, Blower Motor |
| P/WDW | 30 | Power Window |
| EPS | 50 | Electronic power steering |
| BATT | 100 | Alternator (1.1L) |
| 120 | Alternator (1.3/1.6L) | |
| SPARE | 15 | Spare Fuse |
| SPARE | 10 | Spare Fuse |
| SPARE | 10 | Spare Fuse |

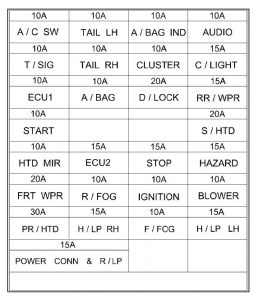

Inner Panel
inner panel
| Fuse name | Ampere rating [A] | Protected component |
| A/C SW | 10 | Air conditioner |
| TAIL LH | 10 | Stop/Tail Light (LH) |
| A/BAG IND | 10 | A/Bag Indicator |
| AUDIO | 10 | Audio, Electronic Outside Mirror |
| T/SIG | 10 | Turn signal Light, Back-up Light |
| TAIL RH | 10 | Stop/Tail Light (RH) |
| TAIL RH | 10 | Stop/Tail Light (RH) |
| CLUSTER | 10 | Cluster |
| C/LIGHT | 15 | Cigarette Lighter |
| ECU 1 | 10 | PCM, ABS control |
| A/BAG | 10 | Air Bag |
| D/LOCK | 20 | Door Lock System, Sunroof |
| RR/WPR | 15 | Rear Wiper Motor |
| START | 10 | Start Relay, 9oTheft alarm system |
| S/HTD | 20 | Seat Warmer |
| HTD MIR | 10 | Rear window Defroster |
| ECU2 | 15 | ECM |
| STOP | 15 | Stop Light, Power Window |
| HAZARD | 15 | Hazard Warning Light, ETACM |
| FRT WPR | 20 | Front Wiper Motor |
| R/FOG | 10 | Rear Fog Light |
| IGNITION | 10 | Fog light, ETACM, Power Window, Headlight leveling Device |
| BLOWER | 10 | Blower, Sunroof |
| PR/HTD | 30 | Rear window Defroster |
| H/LP RH | 15 | Headlight (RH) |
| F/FOG | 10 | Front Fog Light |
| H/LP LH | 15 | High Beam Light Indicator, Headlight (LH) |
| POWER CONN & R/LP | 15 | Room Lamp, Audio, Cluster |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
