Hyundai Grand i10 (2015 – 2016) – fuse box diagram

25 October 2018 admin Hyundai, i10 0

Hyundai Grand i10 (2015 – 2016) – fuse box diagram

Year of production: 2015

Instrument panel

Type A

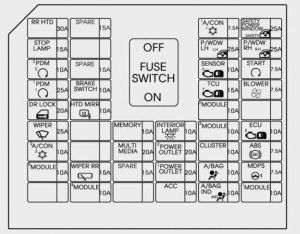

Hyundai Grand i10 – fuse box – instrument panel (type A)
Hyundai Grand i10 – fuse box – instrument panel (type A)
Description Symbol Ampere rating [A] Protected component
RR HTD 30 RR HTD Relay
A/CON 1 7,5 A/C Control Module (Auto)
SAFETY POWER WINDOW 25 Driver Safety Power Window Module
STOP LAMP 15 Stop Signal Electronic Module, Data Link Connector
P/WDW LH 25 Power Window Main Switch, Driver Safety Power Window Module (LHD), Passenger Power Window Switch (RHD)
P/WDW RH 25 Power Window Main Switch, Driver Safety Power Window Module (RHD), Passenger Power Window Switch (LHD)
PDM 2 10 Smart Key Control Module, Start/Stop Button Switch
SENSOR 10 PCB Fuse & Relay Box (Vacuum Pump Relay)
START 7,5 B/Alarm Relay, PCB Fuse & Relay Box (Start Relay), PCM, Smart Key Control Module, Transaxle Range Switch
PDM 1 25 Smart Key Control Module
BRAKE SWITCH 10 Smart Key Control Module, Stop Lamp Switch
TCU 15 A/T : Transaxle Range Switch, Pulse Generator ‘A’/’B’
M/T : Vehicle Speed Sensor, PCB Fuse & Relay Box (F34)
BLOWER 7,5 PCM, A/C Control Module, Electronic A/C Compressor, Blower Switch, Blower Resistor
DR LOCK 20 Door Lock/Unlock Relay, T/Gate Unlock Relay, Crash Door Unlock Unit
MODULE 2 10 Stop Lamp Switch, Crash Pad Switch, Rear Parking Assist, Rear Parking Assist Sensor (Center) LH/RHSensor LH/RH
WIPER 25 Front Wiper Motor, Multifunction Switch
MEMORY 10 Data Link Connector, Digital Clock, Instrument Cluster, BCM, Tire Pressure Motoring Module, A/C Control Module, Crash Door Unlock Unit, Audio
INTERIOR LAMP 10 Luggage Lamp, Room Lamp
MODULE 3 10 E/R Junction Box (Multipurpose Check Connector), A/C Control Module
ECU 10 PCM, Smart Key Control Module, Alternator (G3LA/G4LA)
A/CON 2 10 PCB Fuse & Relay Box (Blower Relay), A/C Control Module
MULTI MEDIA 20 Audio
POWER
OUTLET 2		 20 Rear Power Outlet
CLUSTER 10 Instrument Cluster
ABS 7,5 ESP Control Module
MODULE 5 10 —
WIPER RR 15 Rear Wiper Motor, Multifunction Switch
POWER
OUTLET 1		 20 Power Outlet
A/BAG 10 SRS Control Module
MDPS 7,5 MDPS Unit
MODULE 4 10 BCM, Smart Key Control Module
ACC 10 BCM, Smart Key Control Module, Digital Clock, Auido, Power Outside Mirror Switch
A/BAG IND 10 Instrument Cluster
MODULE 1 10 BCM, SBR Indicator

Type B

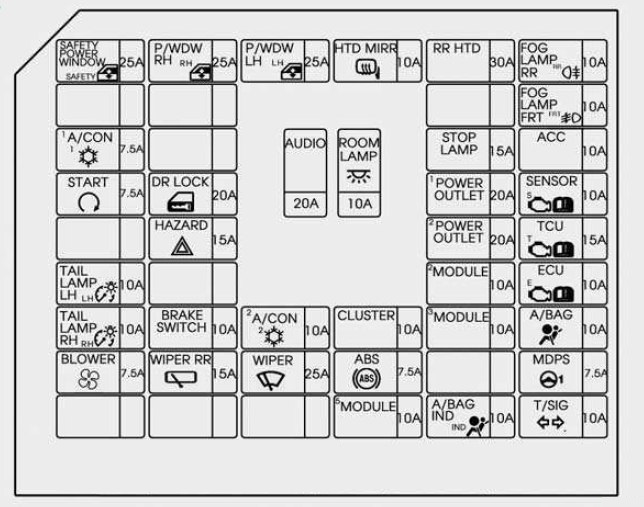

Hyundai Grand i10 – fuse box – instrument panel (type B)
Hyundai Grand i10 – fuse box – instrument panel (type B)
Relay number Symbol Relay Name Relay Type
ROOM LAMP 10 Luggage Lamp, Room Lamp
AUDIO 20 Audio
RR HTD 30 RR HTD Relay
A/CON 1 7,5 A/C Control Module (Auto)
SAFETY POWER WINDOW 25 Driver Safety Power Window Module
STOP LAMP 15 Stop Signal Electronic Module, Data Link Connector
P/WDW LH 25 Power Window Main Switch, Driver Safety Power Window Module (LHD), Passenger Power Window Switch (RHD)
P/WDW RH 25 Power Window Main Switch, Driver Safety Power Window Module (RHD), Passenger Power Window Switch (LHD)
SENSOR 10 PCB Fuse & Relay Box (Vacuum Pump Relay)
START 7,5 B/Alarm Relay, PCB Fuse & Relay Box (Start Relay), PCM, Smart Key Control Module, Transaxle Range Switch
BRAKE SWITCH 10 Smart Key Control Module, Stop Lamp Switch
TCU 15 A/T : Transaxle Range Switch, Pulse Generator ‘A’/’B’
M/T : Vehicle Speed Sensor, PCB Fuse & Relay Box (F34)
BLOWER 7,5 PCM, A/C Control Module, Electronic A/C Compressor, Blower Switch, Blower Resistor
DR LOCK 20 Door Lock/Unlock Relay, T/Gate Unlock Relay, Crash Door Unlock Unit
HTD MIRR 10 PCM, A/C Control Module, Driver/Passenger Power Outside Mirror
MODULE 2 10 Stop Lamp Switch, Crash Pad Switch, Rear Parking Assist, Rear Parking Assist Sensor (Center) LH/RHSensor LH/RH
WIPER 25 Front Wiper Motor, Multifunction Switch
MODULE 3 10 E/R Junction Box (Multipurpose Check Connector), A/C Control Module
ECU 10 PCM, Smart Key Control Module, Alternator (G3LA/G4LA)
A/CON 2 10 PCB Fuse & Relay Box (Blower Relay), A/C Control Module
POWER
OUTLET 2		 20 Rear Power Outlet
CLUSTER 10 Instrument Cluster
ABS 7,5 ESP Control Module
MODULE 5 10 —
WIPER RR 15 Rear Wiper Motor, Multifunction Switch
POWER
OUTLET 1		 20 Power Outlet
A/BAG 10 SRS Control Module
MDPS 7,5 MDPS Unit
ACC 10 BCM, Smart Key Control Module, Digital Clock, Auido, Power Outside Mirror Switch
A/BAG IND 10 Instrument Cluster
T/SIG 10 Side Repeater Lamp (LH/RH), Rear Combination Lamp (LH/RH)

Engine compartment fuse panel

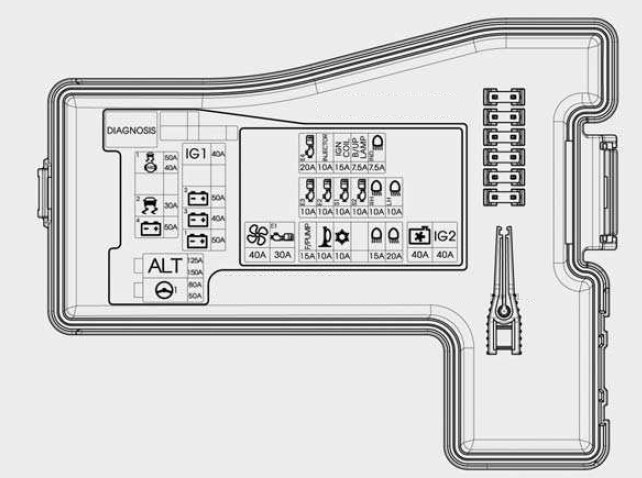

Hyundai Grand i10 – fuse box – engine compartment
Hyundai Grand i10 – fuse box – engine compartment
Description Symbol Ampere rating [A] Protected component
MULTI FUSE MDPS 80 MDPS Unit
ALT 125A (150A) Alternator, Fuse – F3 / F4 / F6, PCB Fuse & Relay Box
FUSE B+4 50 Smart Junction Box (Fuse : F1 / F2)
ESP 2 30 ESP Control Module, Multipurpose Check Connector
ESP 1 50 ESP Control Module
B+1 50 Smart Junction Box (T/Sig Sound Relay, Fuse : F10, ARISU-LT1, IPS 3)
B+3 40 Smart Junction Box (Power Window Relay, Fuse : F4, ARISU-LT2, IPS 5)
B+2 50 Smart Junction Box (Fuse : F5 / F9 / F13 / F14 / F17, Leak Current Autocut Device
Fuse : F23 / F24 / F29)
IG1 40 W/O Button Start : Ignition Switch
With Button Start : PDM Relay Box (IG1 / ACC Relay)
FRT WIPER 7,5 PCM, Front Wiper Motor, Multifunction Switch
BLOWER 40 Blower Relay
ECU1 30 Engine Control Relay, Fuse : F25 / F26
F/PUMP 15 F/Pump 1 Relay
HORN 10 Horn Relay, B/Alarm Horn Relay
A/CON 10 A/CON Relay
VACUUM PUMP 20 Vacuum Pump Relay
HEADLAMP DIPPED BEAM 15 Headlamp High Beam
HEADLAMP HIGH BEAM 20 Headlamp Low Beam
C/FAN 40 C/FAN LO Relay, C/FAN HI Relay
IG2 40 Start Relay, Ignition Switch (W/O Button Start), PDM Relay Box (IG2 Relay) (With Button Start)
ECU3 10 PCM
ECU2 10 B3LA : PCM, Shut Off Valve #1/#2
SENSOR 10 C/FAN LO Relay, C/FAN HI Relay, A/CON Relay, Start Relay (G3LA, With ISG), PCM, Oil Control Valve #1/#2 (IN/EX), Purge Control Solenoid Valve, Camshaft Position Sensor #1/#2 (IN/EX)
SENSOR2 10 G3LA/G4LA : PCM
HEADLAMP DIPPED BEAMS 10 Head Lamp LH
HEADLAMP
DIPPED
BEAMS		 10 Head Lamp RH
ECU4 20 Not Used
INJECTOR 10 PCM, Immobilizer Module, F/Pump 1 Relay
G3LA : Injector #1/#2/#3, G4LA : Injector #1/#2/#3/#4
B3LA : Injector #1/#2/#3 (GSL), Injector #1/#2/#3 (LPI), Crash Pad Switch
IGN COIL 15 G3LA/B3LA : Ignition Coil #1/#2/#3, Condenser
G4LA : Ignition Coil
B/UP LAMP 7,5 A/T : PCM, Transaxle Range Switch, BCM, Instrument Cluster, Rear Combination
Lamp LH/RH
M/T : Back-Up Lamp Switch, Smart Junction Box (Fuse : F15)
HEADLAMP
HI INDICATOR		 7,5 Instrument Cluster, PCB Fuse & Relay Box (Head Lamp (H) Relay)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
