Hyundai i30 (2012 – 2013) – fuse box diagram

25 October 2018 admin Hyundai, i30 0

Hyundai i30 (2012 – 2013) – fuse box diagram

Year of production: 2012, 2013

Inner fuse panel (driver’s side fuse panel)

Hyundai i30 – fuse box – instrument panel
Hyundai i30 – fuse box – instrument panel
Number Ampere rating [A] Symbol Fuse name Protected component
1 20 CIGAR LIGHT Console Cigar Light, Rear Power Outlet
2 7,5 MODULE 1 Sport Mode Switch, Power Outside Mirror Switch
3 7,5 MODULE 4 ATM Shift Lever IND., Multipurpose Check Connector, Electro Chromic Mirror, A/C Control Module, Head Lamp Leveling Device Actuator LH/RH, Fuel Filter Warning Sensor(D4FD)
4 7,5 MODULE 3 Instrument Cluster, BCM, Tire Pressure Monitoring Module, Audio, Driver/Passenger Seat Warmer Module
5 15 POWER
OUTLET		 Front Power Outlet
6 10 HTD MIRR Driver/Passenger Power Outside Mirror, A/C Control Module, ECU
7 25 WIPER FRT ICM Relay Box (Rain Sensor Relay), Multifunction Switch, E/R Fuse & Relay Box (RLY. 7) Front Wiper Motor
8 7,5 A/CON A/C Control Module, E/R Fuse & Relay Box (RLY. 4)
9 25 P/WDW LH P/WDW LH Relay, Driver Safety Power Window Module (LHD)
10 10 TAIL GATE Tail Gate, Rear Camera Open Actuator
11 30 P/SEAT DRV Driver Manual Switch
12 7,5 MODULE2 Lane Keeping Assist Module, ICM Relay Box (HAC Relay), Electric Parking Brake Module, Rear Camera Module
13 15 WIPER RR Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch
14 15 STOP LAMP Stop Lamp Switch, ICM Relay Box (HAC Relay)
15 25 P/WDW RH P/WDW RH Relay, Driver Safety Power Window Module (RHD)
16 7,5 PDM 2 Smart Key Control Module, Start/Stop Button Switch
17 7,5 MODULE 5 EMS BOX (Head Lamp Washer Relay), Ionizer Unit, Panorama Sunroof, DC-DC Converter, DSL BOX (PTC Relay), E/R Fuse & Relay BOX(RLY. ), Driver/Passenger Seat Warmer Module
18 20 IG1 E/R Fuse & Relay Box (Fuse – F)
19 10 MODULE 6 Outside Mirror Switch, Audio, Navigation Head Unit, Digital Clock, DC-DC Converter
20 7,5 MDPS EPS Control Module
21 20 DR LOCK Door Lock/Unlock Relay, ICM Relay BOX (Dead Lock Relay), Driver/Passenger Door Lock Actuator, Fuel filler actuator, Door Lock Actuator LH/RH
22 10 INTERIOR
LAMP		 INTERIOR
LAMP		 Glove Box Lamp, Vanity Lamp LH/RH, Overhead Console Lamp, Room Lamp, Luggage Lamp, DR Warning Switch
23 15 MULTI MEDIA Audio, Navigation Head Unit, DC-DC Converter (Audio)
24 15 A/BAG SRS Control Module
25 7,5 MEMORY 1 Ultrasonic instruction Protection Sensor
26 7,5 A/BAG IND Instrument Cluster
27 7,5 PDM 3 Smart Key Control Module, Ultrasonic instrusion Protection Sensor
28 10 MEMORY 2 Outside Mirror Switch, Tire Pressure Monitoring Module, BCM, Auto Light & Photo Sensor, Instrument Cluster, OBD, Digital Clock, A/C Control Module
29 25 PDM 1 Smart Key Control Module
30 7,5 START W/O Button Start : E/R Fuse & Relay Box (RLY. ) Ignition Lock Switch, Transaxle Range
Switch
With Button Start : ECM/PCM, Transaxle Range Switch
31 20 SUNROOF Panorama Sunroof
32 7,5 BCM BCM, Smart Key Control Module
33 7,5 A/CON SW A/C Control Module
34 10 AFLS Adaptive Front Lighting System Module
35 7,5 MODULE 7 BCM, Smart Key Control Module
36 10 FOG LAMP RR Rear Fog Lamp
37 10 PUDDLE LAMP PUDDLE LAMP Driver/Passenger Power Outside Mirror

Engine compartment

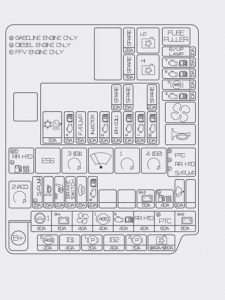

Hyundai i30 – fuse box – engine compartment
Hyundai i30 – fuse box – engine compartment
Number Fuse rating [A] Symbol Circuit protected
MULTI FUSE 1 80 EPS Control Module
2 60 I/P Junction Box (IPS 0 (4CH), IPS 1 (4CH), IPS 2 (2CH), Fuse – F13/F14/F19/F20/F21/F26/ F36)
3 60 ESC Control Module, Multipurpose Check Connector
4 40 RLY. 4 (Blower Relay)
5 60 I/P Junction Box (IPS 3 (4CH), IPS 4 (4CH), Fuse – F2/F7/F9/F15)
6 60 PTC HTR RLY. 12 (GASOLINE PTC Relay)
FUSE 7 40 (Gasoline engine) RLY. 1 (C/FAN LO Relay), RLY. 2 (C/FAN HI Relay)
50 (Diesel engine)
8 20 ESC Control Module, Multipurpose Check Connector
9 40 RLY. 9 (Start Relay), Ignition Switch (W/O Button Start), RLY. 6 (PDM 4 (IG2) Relay, With Button Start)
10 40 W/O Button Start : Ignition Switch,
With Button Start : RLY. 8 (PDM 2 (ACC) Relay)/RLY. 10 (PDM 3 (IG1) Relay
11 15 ICM Relay Box (Front Deicer Relay)
12 50 I/P Junction Box (Leak Current Autocut Device, Fuse – F18/F25/F30/F34/F38)
13 10 Smart Key Control Module, Stop Signal Relay
14 30 Electric Parking Brake Module
15 30 Electric Parking Brake Module
16 20 D4FD & A/T : TCM
17 15 G4NA/G4NC : PCM (A/T), ECM (M/T)
18 20 Driver/Passenger Seat Warmer Module
19 50 PTC HTR RLY. 12 (Fuel Filter Relay)
20 10 PCM/ECM
21 15 RLY. 5 (Horn Relay), ICM Relay Box (B/A Horn Relay)
22 15 A/T – TCM (D4FD), Transaxle Range Switch
23 10 RLY. 9 (D4FD, Start Relay), ECM/PCM
24 10 ESC Control Module, Multipurpose Check Connector
25 10 ECM/PCM, Air Flow Sensor, Stop Lamp Switch
26 10 M/T – Back-Up Lamp Switch, A/T – Rear Combination Lamp (IN) LH/RH, Rear Curtain Module, Navigation Head Unit, Electro Chromic Mirror, IPS Control Module
27 20 G4FD/D4FD : ECM
G4NA/G4NC : PCM (A/T), ECM (M/T)
28 20 G4NA : Ignition Coil #1/#2/#3/#4, Condenser
29 10 G4FD : Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve,Purge Control Solenoid
Valve
G4NA/G4NC : Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve, Purge Control
Solenoid Valve
D4FD : Camshaft Position Sensor, EGR Cooling Bypass Solenoid Valve, Diesel Box (Glow
Relay)
30 10 G4FD : Oil Control Valve #1/ #2, Oil Level Sensor, E/R Fuse & Relay Box (RLY. 1)
G4NA/G4NC : Oil Control Valve #1/ #2, Camshaft Position Sensor (Intake/Exhaust), E/R Fuse
& Relay Box (RLY. 1)
D4FD : E/R Fuse & Relay Box (RLY. 1), Diesel Box (PTC Heater Relay#1), Lambda Sensor,
VGT Control Solenoid Valve
31 10 G4FD : ECM G4NA : Fuel Pump Relay G4NC : Fuel Pump Relay, PCM (A/T), ECM (M/T)
D4FD : Oil Level Sensor, Fuel Pressure Regulating Valve
32 10 G4NA – Injector #1/#2/#3/#4
33 15 G4NA/G4NC : PCM (A/T), ECM (M/T)
34 15 EMS Box (Fuel Pump Relay)
35 30 EMS Box (Head Lamp Washer Relay)
36 40 EMS Box

Number Symbol Protected component Type
FUSE 37 C/FAN LO RELAY PLUG MICRO
38 C/FAN HI RELAY PLUG MICRO
39 ESS ESS RELAY PLUG MICRO
40 BLOWER RELAY PLUG MICRO
41 HORN RELAY PLUG MICRO
42 PDM 4 (IG2) RELAY PLUG MICRO
43 FRONT WIPER RELAY PLUG MICRO
44 PDM 2 (ACC) RELAY PLUG MICRO
45 START RELAY PLUG MICRO
46 PDM 3 (IG1) RELAY PLUG MICRO
47 RR HTD RELAY PLUG MICRO
48 Gasoline : PTC PTC Heater/Fuel Filter PLUG MINI
Diesel:
Hyundai i30 – fuse box – engine compartment (diesel engine)
Hyundai i30 – fuse box – engine compartment (diesel engine)
Description Ampere rating [A] Circuit protected
80 Glow Relay
PTC 1 50 PTC 1 Relay
PTC 2 50 PTC 2 Relay
PTC 3 50 PTC 3 Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
