Hyundai i30 (2015 – 2016) – fuse box diagram
Year of production: 2015, 2016

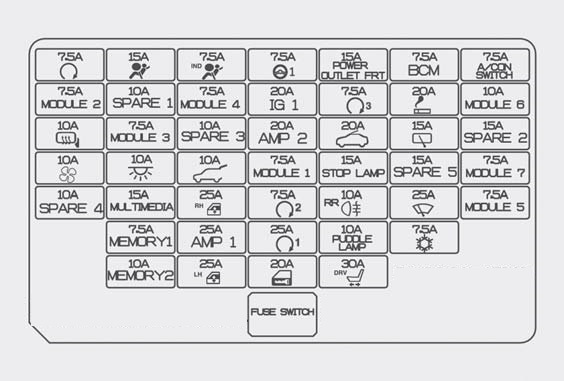

Inner fuse panel (driver’s side fuse panel)
| Number | Ampere rating [A] | Symbol | Fuse name | Protected component |
| 1 | 20 |  |
CIGAR LIGHT | Console Cigar Light, Rear Power Outlet |
| 2 | 7,5 |  |
MODULE 1 | Sport Mode Switch, Power Outside Mirror Switch |
| 3 | 7,5 |  |
MODULE 4 | ATM Shift Lever IND., Multipurpose Check Connector, Electro Chromic Mirror, A/C Control Module, Head Lamp Leveling Device Actuator LH/RH, Fuel Filter Warning Sensor(D4FD) |
| 4 | 7,5 |  |
MODULE 3 | Instrument Cluster, BCM, Tire Pressure Monitoring Module, Audio, Driver/Passenger Seat Warmer Module |
| 5 | 15 |  |
POWER OUTLET |
Front Power Outlet |
| 6 | 10 |  |
HTD MIRR | Driver/Passenger Power Outside Mirror, A/C Control Module, ECU |
| 7 | 25 |  |
WIPER FRT | ICM Relay Box (Rain Sensor Relay), Multifunction Switch, E/R Fuse & Relay Box (RLY. 7) Front Wiper Motor |
| 8 | 7,5 |  |
A/CON | A/C Control Module, E/R Fuse & Relay Box (RLY. 4) |
| 9 | 25 |  |
P/WDW LH | P/WDW LH Relay, Driver Safety Power Window Module (LHD) |
| 10 | 10 |  |
TAIL GATE | Tail Gate, Rear Camera Open Actuator |
| 11 | 30 |  |
P/SEAT DRV | Driver Manual Switch |
| 12 | 7,5 |  |
MODULE2 | Lane Keeping Assist Module, ICM Relay Box (HAC Relay), Electric Parking Brake Module, Rear Camera Module |
| 13 | 15 |  |
WIPER RR | Rear Wiper Relay, Rear Wiper Motor, Multifunction Switch |
| 14 | 15 |  |
STOP LAMP | Stop Lamp Switch, ICM Relay Box (HAC Relay) |
| 15 | 25 |  |
P/WDW RH | P/WDW RH Relay, Driver Safety Power Window Module (RHD) |
| 16 | 7,5 |  |
PDM 2 | Smart Key Control Module, Start/Stop Button Switch |
| 17 | 7,5 |  |
MODULE 5 | EMS BOX (Head Lamp Washer Relay), Ionizer Unit, Panorama Sunroof, DC-DC Converter, DSL BOX (PTC Relay), E/R Fuse & Relay BOX(RLY. ), Driver/Passenger Seat Warmer Module |
| 18 | 20 |  |
IG1 | E/R Fuse & Relay Box (Fuse – F) |
| 19 | 10 |  |
MODULE 6 | Outside Mirror Switch, Audio, Navigation Head Unit, Digital Clock, DC-DC Converter |
| 20 | 7,5 |  |
MDPS | EPS Control Module |
| 21 | 20 |  |
DR LOCK | Door Lock/Unlock Relay, ICM Relay BOX (Dead Lock Relay), Driver/Passenger Door Lock Actuator, Fuel filler actuator, Door Lock Actuator LH/RH |
| 22 | 10 | INTERIOR LAMP |
INTERIOR LAMP |
Glove Box Lamp, Vanity Lamp LH/RH, Overhead Console Lamp, Room Lamp, Luggage Lamp, DR Warning Switch |
| 23 | 15 |  |
MULTI MEDIA | Audio, Navigation Head Unit, DC-DC Converter (Audio) |
| 24 | 15 |  |
A/BAG | SRS Control Module |
| 25 | 7,5 |  |
MEMORY 1 | Ultrasonic instruction Protection Sensor |
| 26 | 7,5 |  |
A/BAG IND | Instrument Cluster |
| 27 | 7,5 |  |
PDM 3 | Smart Key Control Module, Ultrasonic instrusion Protection Sensor |
| 28 | 10 |  |
MEMORY 2 | Outside Mirror Switch, Tire Pressure Monitoring Module, BCM, Auto Light & Photo Sensor, Instrument Cluster, OBD, Digital Clock, A/C Control Module |
| 29 | 25 |  |
PDM 1 | Smart Key Control Module |
| 30 | 7,5 |  |
START | W/O Button Start : E/R Fuse & Relay Box (RLY. ) Ignition Lock Switch, Transaxle Range Switch With Button Start : ECM/PCM, Transaxle Range Switch |
| 31 | 20 |  |
SUNROOF | Panorama Sunroof |
| 32 | 7,5 |  |
BCM | BCM, Smart Key Control Module |
| 33 | 7,5 |  |
A/CON SW | A/C Control Module |
| 34 | 10 |  |
AFLS | Adaptive Front Lighting System Module |
| 35 | 7,5 |  |
MODULE 7 | BCM, Smart Key Control Module |
| 36 | 10 |  |
FOG LAMP RR | Rear Fog Lamp |
| 37 | 10 | PUDDLE LAMP | PUDDLE LAMP | Driver/Passenger Power Outside Mirror |
Engine compartment
| Number | Fuse rating [A] | Symbol | Circuit protected | |
| MULTI FUSE | 1 | 80 | |
EPS Control Module |
| 2 | 60 |  |
I/P Junction Box (IPS 0 (4CH), IPS 1 (4CH), IPS 2 (2CH), Fuse – F13/F14/F19/F20/F21/F26/ F36) | |
| 3 | 60 |  |
ESC Control Module, Multipurpose Check Connector | |
| 4 | 40 |  |
RLY. 4 (Blower Relay) | |
| 5 | 60 |  |
I/P Junction Box (IPS 3 (4CH), IPS 4 (4CH), Fuse – F2/F7/F9/F15) | |
| 6 | 60 |  |
RLY. 12 (GASOLINE PTC Relay) | |
| 7 | 40 |  |
Engine Management System | |
| 8 | 40 |  |
Rear Heated | |
| FUSE | 9 | 40 (Gasoline engine) |  |
RLY. 1 (C/FAN LO Relay), RLY. 2 (C/FAN HI Relay) |
| 50 (Diesel engine) | ||||
| 10 | 20 |  |
ESC Control Module, Multipurpose Check Connector | |
| 11 | 40 |  |
RLY. 9 (Start Relay), Ignition Switch (W/O Button Start), RLY. 6 (PDM 4 (IG2) Relay, With Button Start) | |
| 12 | 40 | |
W/O Button Start : Ignition Switch, With Button Start : RLY. 8 (PDM 2 (ACC) Relay)/RLY. 10 (PDM 3 (IG1) Relay |
|
| 13 | 50 |  |
I/P Junction Box (Leak Current Autocut Device, Fuse – F18/F25/F30/F34/F38) | |
| 14 | 10 |  |
Smart Key Control Module, Stop Signal Relay | |
| 15 | 10 |  |
Dual Clutch Transmission | |
| 16 | 10 |  |
Dual Clutch Transmission | |
| 17 | 40 |  |
Dual Clutch Transmission | |
| 18 | 30 |  |
Electric Parking Brake Module | |
| 19 | 30 |  |
Electric Parking Brake Module | |
| 20 | 20 |  |
D4FD & A/T : TCM | |
| 21 | 15 |  |
G4NA/G4NC : PCM (A/T), ECM (M/T) | |
| 22 | 20 |  |
Driver/Passenger Seat Warmer Module | |
| 23 | 50 | PTC HTR | RLY. 12 (Fuel Filter Relay) | |
| 24 | 10 | |
PCM/ECM | |
| 25 | 15 |  |
RLY. 5 (Horn Relay), ICM Relay Box (B/A Horn Relay) | |
| 26 | 15 |  |
A/T – TCM (D4FD), Transaxle Range Switch | |
| 27 | 10 |  |
RLY. 9 (D4FD, Start Relay), ECM/PCM | |
| 28 | 10 |  |
ESC Control Module, Multipurpose Check Connector | |
| 29 | 10 |  |
ECM/PCM, Air Flow Sensor, Stop Lamp Switch | |
| 30 | 10 |  |
M/T – Back-Up Lamp Switch, A/T – Rear Combination Lamp (IN) LH/RH, Rear Curtain Module, Navigation Head Unit, Electro Chromic Mirror, IPS Control Module | |
| 31 | 20 |  |
G4FD/D4FD : ECM G4NA/G4NC : PCM (A/T), ECM (M/T) |
|
| 32 | 20 |  |
G4NA : Ignition Coil #1/#2/#3/#4, Condenser | |
| 33 | 10 |  |
G4FD : Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve,Purge Control Solenoid Valve G4NA/G4NC : Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve, Purge Control Solenoid Valve D4FD : Camshaft Position Sensor, EGR Cooling Bypass Solenoid Valve, Diesel Box (Glow Relay) |
|
| 34 | 10 |  |
G4FD : Oil Control Valve #1/ #2, Oil Level Sensor, E/R Fuse & Relay Box (RLY. 1) G4NA/G4NC : Oil Control Valve #1/ #2, Camshaft Position Sensor (Intake/Exhaust), E/R Fuse & Relay Box (RLY. 1) D4FD : E/R Fuse & Relay Box (RLY. 1), Diesel Box (PTC Heater Relay#1), Lambda Sensor, VGT Control Solenoid Valve |
|
| 35 | 10 |  |
G4FD : ECM G4NA : Fuel Pump Relay G4NC : Fuel Pump Relay, PCM (A/T), ECM (M/T) D4FD : Oil Level Sensor, Fuel Pressure Regulating Valve |
|
| 36 | 10 (Gasoline engine) |  |
INJECTOR #1/#2/#3/#4 | |
| 10 (Diesel engine) |  |
LAMBDA#1/#2, Pressure Regulating Valve | ||
| FFV engine | |
INJECTOR #1/#2/#3/#4 | ||
| 37 | 15 | |
G4NA/G4NC : PCM (A/T), ECM (M/T) | |
| 38 | 20 |  |
EMS Box (Fuel Pump Relay) | |
| 39 | 30 |  |
EMS Box (Head Lamp Washer Relay) | |
| 40 | 40 |  |
EMS Box | |
| Number | Symbol | Protected component | Type | |
| FUSE | 41 |  |
C/FAN LO RELAY | PLUG MICRO |
| 42 |  |
C/FAN HI RELAY | PLUG MICRO | |
| 43 | |
BLOWER RELAY | PLUG MICRO | |
| 44 | |
HORN RELAY | PLUG MICRO | |
| 45 |  |
PDM 4 (IG2) RELAY | PLUG MICRO | |
| 46 | |
FRONT WIPER RELAY | PLUG MICRO | |
| 47 |  |
PDM 2 (ACC) RELAY | PLUG MICRO | |
| 48 | |
START RELAY | PLUG MICRO | |
| 49 |  |
PDM 3 (IG1) RELAY | PLUG MICRO | |
| 50 | REAR HEATED | RR HTD RELAY | PLUG MICRO | |
| 551 | Gasoline : PTC | PTC Heater/Fuel Filter | PLUG MINI | |
Diesel:  |
||||
| Description | Ampere rating [A] | Circuit protected |
 |
80 | Glow Relay |
| PTC 1 | 50 | PTC 1 Relay |
| PTC 2 | 50 | PTC 2 Relay |
| PTC 3 | 50 | PTC 3 Relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
