Hyundai i30 (2018) – fuse box diagram

25 October 2018 admin Hyundai, i30 0

Hyundai i30 (2018) – fuse box diagram

Year of production: 2018

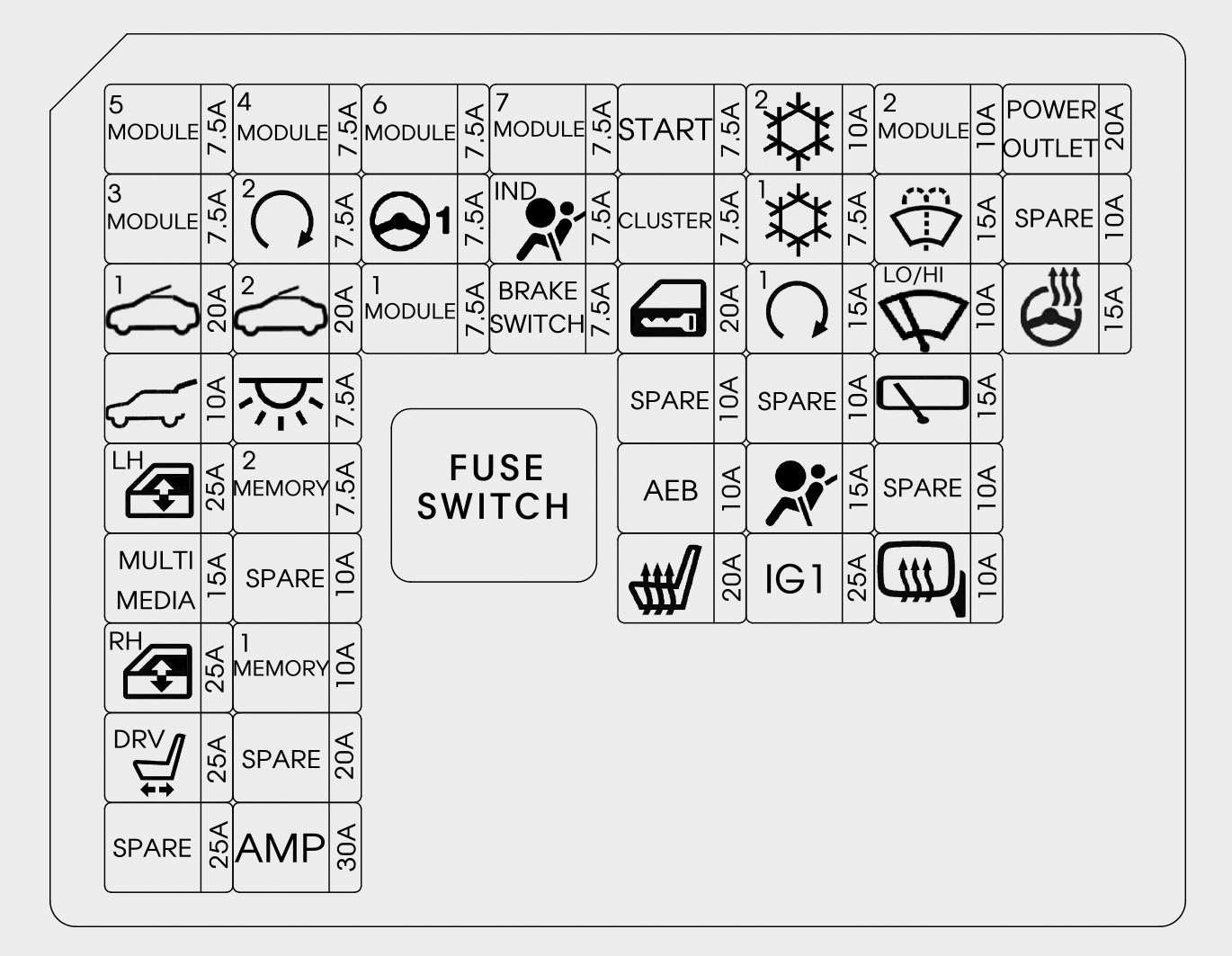

Inner fuse panel (driver’s side fuse panel)

Hyundai i30 – fuse box – instrument panel
Hyundai i30 – fuse box – instrument panel
Number Fuse name Symbol Fuse rating Protected component
F1 MODULE 5 7,5 Crash Pad Switch, Electro Chromic Mirror, MTS E-Call Module, Audio, A/V & Navigation Head Unit, A/C Control Module, A/T Shift Lever Indicator, Console Switch RH, DC-DC Converter, Head Lamp LH/RH, Active Air Flap Unit, Auto Head Lamp Leveling Device Module, Front Seat Warmer Control Module,
Front Air Ventilation Seat Control Module, Driver IMS Module
F2 MODULE 3 7,5 Driver/Passenger Door Module, BCM, Sport Mode Switch
F3 SUNROOF 1 20 Panorama Sunroof
F4 TAILGATE 10 Tail Gate Relay
F5 POWER INDOW LH 25 Power Window LH Relay, Driver/Passenger Safety Window Module, Rear Power Window Switch LH, Rear Safety Window Module LH
F6 MULTIMEDIA 15 Audio, A/V & Navigation Head Unit, DC-DC Converter
F7 POWER WINDOW RH 25 Power Window RH Relay, Driver/Passenger Safety Window Module, Rear Power Window Switch RH, Rear Safety Window Module RH
F8 POWER SEAT DRIVER 25 Driver Seat Manual Switch, Driver IMS Module
F10 MODULE 4 7,5 Lane Keeping Assist Module, Rear Parking Assist Buzzer, Stop Lamp Switch, Blind Spot Detection Radar LH/RH, BCM, Electric Parking Brske Switch, Autonomous Emergency Braking Module
F11 SMART KEY 2 2-smart-key 7,5 Smart Key Control Module, Immobilizer Module
F12 SUNROOF 2 20 Panorama Sunroof
F13 INTERIOR LAMP 7,5 Wireless Charger, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Personal Lamp LH/RH, Rain Sensor, Ignition Key Ill. & Door Warning Switch, Glove Box Lamp, Luggage Lamp
F14 MEMORY 2 7,5 MTS E-Call Module
F16 MEMORY 1 10 Driver/Passenger Door Module, Driver IMS Module, BCM, A/C Control Module, Instrument Cluster, Auto Light & Photo Sensor, ICM Relay Box (Outside Mirror Folding/Unfolding Relay)
F19 MODULE 6 7,5 Smart Key Control Module, BCM
F20 MDPS 7,5 MDPS Unit
F21 MODULE 1 7,5 Hazard Switch, Center Door Lock Switch, Active Air Flap Unit, Driver/Passenger Door Module, Driver/Passenger Power Outside Mirror, Driver/Passenger Smart Key Outside Handle, Data Link Connector
F22 MODULE 7 7,5 Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module, Nozzle Heater
F23 AIRBAG
INDICATOR		 7,5 Smart Key Control Module, Stop Lamp Switch
F24 BRAKE
SWITCH		 7,5 Smart Key Control Module, Stop Lamp Switch
F25 START 7,5 Without Smart Key : ICM Relay Box (Burglar Alarm Relay),
With Smart Key : Transaxle Range Switch, Smart Key Control Module, ECM/PCM,
Engine Room Junction Block (RLY.4)”
F26 CLUSTER 7,5 Instrument Cluster
F27 DOOR LOCK 20 Door Lock/Unlock Relay, ICM Relay Box (T/Turn Unlock Relay)
F29 ARB AEB 10 Autonomous Emergency Braking Module
F30 SEAT HEATER FRONT 20 Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
F31 AIR CONDITIONER 2 10 A/C Control Module, ECM/PCM, Blower Resistor, Blower Motor, E/R Junction Block (RLY.10)
F32 AIR CONDITIONER 1 7,5 A/C Control Module, Cluster Ionizer, E/R Junction Block (RLY.1/10/11/13)
F33 SMART KEY 1 1-smart-key 15 Smart Key Control Module, Immobilizer Module
F35 AIRBAG 15 SRS Control Module
F36 IGNITION 1 25 PCB Block (F45/F46/F47/F48)
F37 MODULE 2 10 Wireless Charger, MTS E-Call Module, Smart Key Control Module, BCM, Audio, A/V & Navigation Head Unit, DC-DC Converter, Power Outside Mirror Switch, Engine Room Junction Block (RLY.14)
F38 WASHER 15 Multifunction Switch
F39 WIPER 10 ECM/PCM, BCM
F40 REAR WIPER 15 Rear Wiper Relay, Rear Wiper Motor
F42 MIRROR HEATED 10 Driver/Passenger Power Outside Mirror, A/C Control Module, ECM/PCM
F43 POWER
OUTLET		 20 Rear Power Outlet #2
F45 HEATED STEERING 15 BCM

Engine compartment

Hyundai i30 – fuse box – engine compartment
Hyundai i30 – fuse box – engine compartment
Relay no. Symbol Circuit protected
RLY. 1 COOLING FAN 3 Relay (Gasoline)
PTC HEATER #2 Relay (Diesel)
RLY. 2 COOLING FAN 2 Relay
RLY. 3 PDM #3 (IG1) Relay
RLY. 4 START Relay
RLY. 5 FUEL HEATER Relay (Diesel)
RLY. 6 PDM #4 (IG2) Relay
RLY. 7 FUEL PUMP Relay
RLY. 8 PDM #2 (ACC) Relay
RLY. 9 COOLING FAN 1 Relay
RLY. 10 BLOWER Relay
RLY. 11 PTC HEATER #1 Relay
RLY. 12 REAR HEATED Relay
RLY. 13 PTC HEATER #3 Relay (Diesel)
RLY. 14 POWER OUTLET Relay

Fuse no. Fuse name Symbol Fuse rating Circuit protected
F1 MAIN 150 Fuse : F27, F29, F30, F33
F2 MDPS 1 80 MDPS Unit
F3 B+5 60 PCB Block (Fuse : F43, F44, F50, F51, F52, Engine Control Relay)
F4 B+2 60 IGPM (Fuse : F30, IPS0, IPS1, IPS2)
F5 B+3 60 IGPM (IPS3, IPS4, IPS5, IPS6)
F6 B+4 60 IGPM (Fuse : F3, F4, F5, F7, F8, F12)
F7 COOLING
FAN 1		 60 RLY.9 (Gasoline)
PTC
HEATER 1		 50 RLY.2 (Diesel)
F8 REAR HEATED 40 REAR HEATED Relay
F9 BLOWER 40 RLY.10
F10 IGNITION 1 40 Ignition Switch, E/R Junction Block (RLY.3, RLY8)
F11 IGNITION 2 40 Ignition Switch, E/R Junction Block (RLY.6)
F12 GLOW 80 Glow Plug Unit
F13 PTC
HEATER 1		 50 RLY.11
F14 PTC
HEATER 2		 50 RLY.1
F15 PTC
HEATER 3		 50 RLY.13
F16 FUEL
HEATER		 30 RLY.5
F17 POWER
OUTLET 3		 20 Rear Power Outlet 1
F18 POWER
OUTLET 2		 20 Rear Power Outlet
F20 TCU1 15 TCM
F21 VACUUM
PUMP		 20 Vacuum Pump
F22 FUEL PUMP 20 RLY.7
F23 COOLING
FAN 2		 40 RLY.9, RLY.2 (Gasoline)
F24 B+1 40 IGPM (Leak Current Autocut Device, Fuse : F21, F24, F27, F33)
F25 DCT1 40 TCM
F26 DCT2 40 TCM
F27 BURGLAR
ALARM HORN		 10 ICM Relay Box (Burglar Alarm Horn Relay)
F29 ABS1 40 ABS Control Module, ESP Control Module, Multipurpose Check Connector
F30 ABS2 30 ABS Control Module, ESP Control Module, Multipurpose Check Connector
F33 POWER OUTLET
1		 40 RLY.14
F34 BACK UP
LAMP		 10 Back-Up Lamp Switch

Kappa 1.0 T-GDI

Fuse number Fuse name Symbol Fuse rating Circuit protected
F37 SENSOR 2 10 RCV Control Solenoid Valve , Purge Control Solenoid Valve, Oil Control Valve #1/#2, A/Con Relay, E/R Junction Block (RLY.9)
F38 ECU 2 10 ECM
F39 ECU 1 20 ECM
F40 INJECTOR 15 —
F41 SENSOR 1 15 Oxygen Sensor (Up), Oxygen Sensor (Down)
F42 IGNITION
COIL		 20 Ignition Coil #1/#2/#3
F43 ECU 3 15 ECM
F44 A/CON 10 A/Con Relay
F45 ECU 5 10 ECM
F46 SENSOR4 15 —
F47 ABS 3 10 ABS/ESP Control Module, Multipurpose Check Connector
F48 TCU 2 15 E/R Junction Block (Fuse : F34)
F49 SENSOR 3 10 E/R Junction Block (RLY.7)
F50 ECU 4 15 ECM
F51 WIPER 25 Wiper Relay
F52 HORN 15 Horn Relay

Kappa 1.4 T-GDI

Fuse number Fuse name Symbol Fuse rating Circuit protected
F37 SENSOR 2 10 RCV Control Solenoid Valve , Purge Control Solenoid Valve, Oil Control Valve #1/#2, A/Con Relay, E/R Junction Block (RLY.9)
F38 ECU 2 10 ECM
F39 ECU 1 20 ECM
F40 INJECTOR 15 —
F41 SENSOR 1 15 Oxygen Sensor (Up), Oxygen Sensor (Down)
F42 IGNITION
COIL		 20 Ignition Coil #1/#2/#3
F43 ECU 3 15 ECM
F44 A/CON 10 A/Con Relay
F45 ECU 5 10 ECM
F46 SENSOR4 15 Vacuum Pump
F47 ABS 3 10 ABS/ESP Control Module, Multipurpose Check Connector
F48 TCU 2 15 E/R Junction Block (Fuse : F34)
F49 SENSOR 3 10 E/R Junction Block (RLY.7)
F50 ECU 4 15 ECM
F51 WIPER 25 Wiper Relay
F52 HORN 15 Horn Relay

Kappa 1.4 MPI

Fuse number Fuse name Symbol Fuse rating Circuit protected
F37 SENSOR 2 10 RCV Control Solenoid Valve , Purge Control Solenoid Valve, Oil Control Valve #1/#2, A/Con Relay, E/R Junction Block (RLY.9)
F38 ECU 2 10 ECM
F39 ECU 1 20 ECM
F40 INJECTOR 15 Injector #1/#2/#3/#4
F41 SENSOR 1 15 Oxygen Sensor (Up), Oxygen Sensor (Down)
F42 IGNITION
COIL		 20 Ignition Coil #1/#2/#3
F43 ECU 3 15 ECM
F44 A/CON 10 —
F45 ECU 5 10 ECM
F46 SENSOR4 15 —
F47 ABS 3 10 ABS/ESP Control Module, Multipurpose Check Connector
F48 TCU 2 15 E/R Junction Block (Fuse : F34)
F49 SENSOR 3 10 E/R Junction Block (RLY.7)
F50 ECU 4 15 —
F51 WIPER 25 Wiper Relay
F52 HORN 15 Horn Relay



Gamma 1.6 MPI

Fuse number Fuse name Symbol Fuse rating Circuit protected
F37 SENSOR 2 10 Camshaft Position Sensor #1/#2, Purge Control Solenoid Valve, Oil Control Valve #1/#2, Variable Intake Solenoid Valve, E/R Junction Block (RLY.1, RLY.2)
F38 ECU 2 10 ECM/PCM
F39 ECU 1 20 ECM/PCM
F40 INJECTOR 15 Injector #1/#2/#3/#4
F41 SENSOR 1 15 Oxygen Sensor (Up), Oxygen Sensor (Down)
F42 IGNITION
COIL		 20 Ignition Coil #1/#2/#3/#4, Condenser
F43 ECU 3 15 ECM/PCM
F44 A/CON 10 —
F45 ECU 5 10 ECM/PCM
F46 SENSOR4 15 —
F47 ABS 3 10 ABS/ESP Control Module, Multipurpose Check Connector
F48 TCU 2 15 Transaxle Range Switch, E/R Junction Block (Fuse : F34)
F49 SENSOR 3 10 E/R Junction Block (RLY.7)
F50 ECU 4 15 ECM/PCM
F51 WIPER 25 Wiper Relay
F52 HORN 15 Horn Relay



U-II 1.6 TCI

Fuse number Fuse name Symbol Fuse rating Circuit protected
F37 SENSOR 2 10 Oil Level Sensor , Electronic VGT Actuator, EGR Cooling Valve, Fuel Pressure Regulating Valve, PM Sensor, Stop Lamp Switch, A/Con Relay, E/R Junction Block (RLY.2/5/11)
F38 ECU 2 10 —
F39 ECU 1 20 ECM
F40 INJECTOR 15 —
F41 SENSOR 1 15 Lambda Sensor #1/#2
F42 IGNITION
COIL		 20 Ignition Coil #1/#2/#3/#4
F43 ECU 3 15 ECM
F44 A/CON 10 —
F45 ECU 5 10 ECM
F46 SENSOR4 15 Fuel Filter Heater & Fuel Filter Warning Sensor, Glow Plug Unit
F47 ABS 3 10 ABS/ESP Control Module, Multipurpose Check Connector
F48 TCU 2 15 TCM, Transaxle Range Switch, E/R Junction Block (Fuse : F34)
F49 SENSOR 3 10 Air Flow Sensor, Rail Pressure Control Valve, Camshaft Position Sensor, Oil Pressure Valve, E/R Junction Block (RLY.7)
F50 ECU 4 15 —
F51 WIPER 25 Wiper Relay
F52 HORN 15 Horn Relay

Engine compartment fuse panel (Battery terminal cover)

Hyundai i30 – fuse box – engine compartment (battery terminal cover)
Hyundai i30 – fuse box –
engine compartment (battery terminal cover)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
