Hyundai Nexo (2018 – 2019) – fuse box diagram

16 July 2019 admin Hyundai, Nexo 0

Hyundai Nexo (2018 – 2019) – fuse box diagram

Year of production: 2018, 2019

Instrument panel

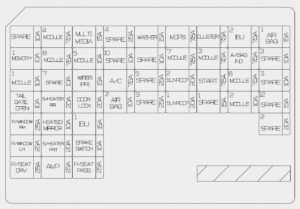

Hyundai Nexo - fuse box diagram - instrument panel

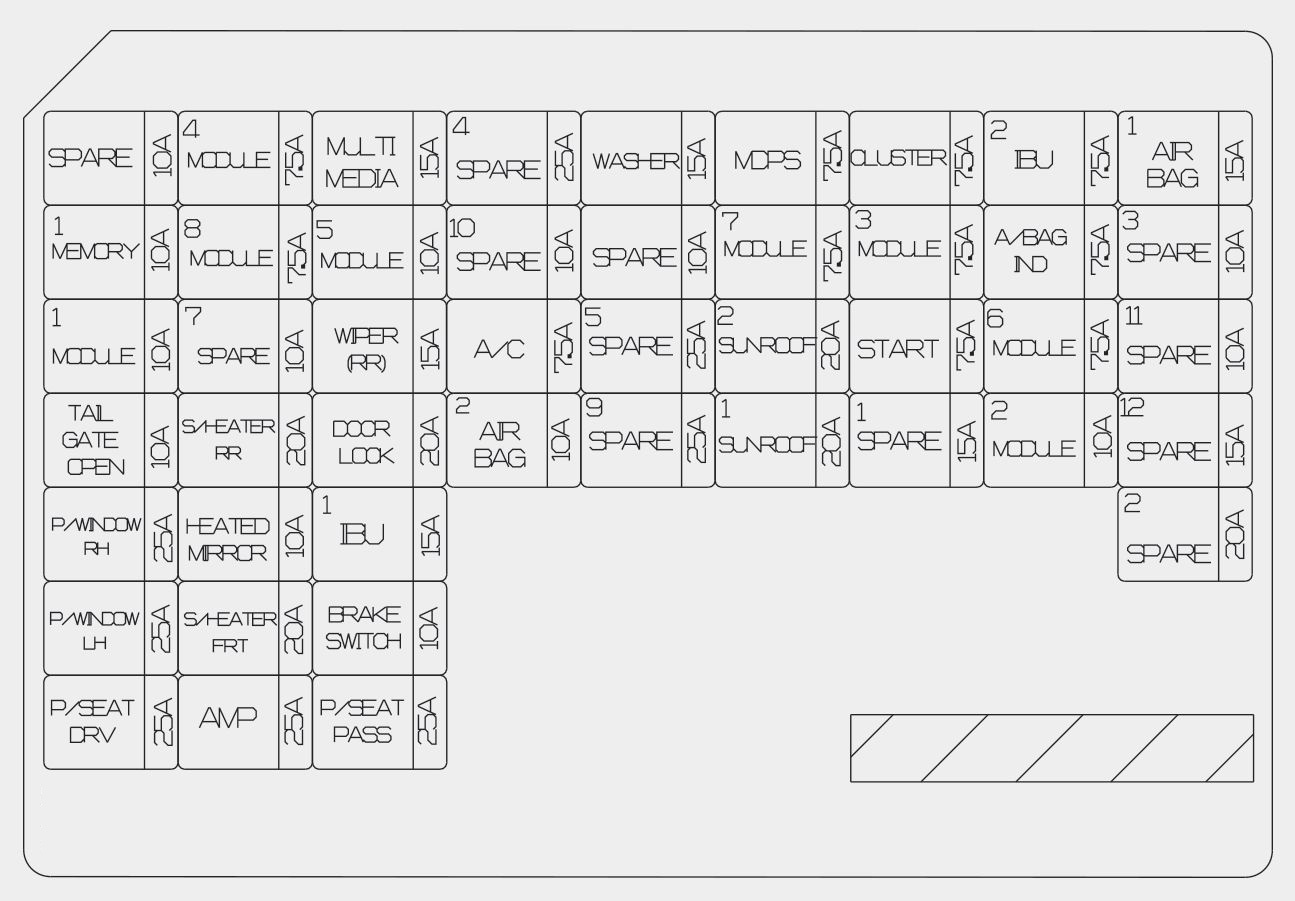

Hyundai Nexo – fuse box diagram – instrument panel
Fuse name [A] Protected component
MEMORY1 10 Power Tail Gate Module, A/C Control Module, A/C Control Panel
MODULE1 10 ICM Relay Box (Outside Mirror Folding/Unfolding Relay), A/V & Navigation Head Unit (Hazard Lamp Switch), Shift Selection Switch (SBW), Auto Light & Photo Sensor, Driver/Passenger Power Outside Mirror, Instrument Cluster
TAIL GATE OPEN 10 Tail Gate Relay
P/WINDOW RH 25 Power Window RH Relay
P/WINDOW LH 25 Power Window LH Relay, Driver Safety Window Module
P/SEAT DRV 25 Driver Seat Manual Switch
MODULE4 7,5 IBU, Remote Control Smart Parking Assist Unit, VESS Unit, Electronic Parking Brake Switch, Lane Keeping Assist Unit(Line), Blind-Spot Collision Warning Unit LH/RH, Crash Pad Switch, PE Room Junction Block (Multipurpose Check Connector
MODULE8 7,5 Data Link Connector, Crash Pad Switch, Electro Chromic Mirror
S/HEATER RR 20 Rear Seat Heater
HEATED MIRROR 10 Driver/Passenger Power Outside Mirror, A/C Control Panel
S/HEATER FRT 20 Front Air Ventilation/Seat Heater Seat Control Module
AMP 25 AMP
MULTI MEDIA 15 A/V & Navigation Head Unit, Center Fascia Switch Panel
MODULE5 10  Front Air Ventilation/Seat Heater Seat Control Module, AMP, A/V & Navigation Head Unit, A/C Control Panel, PTC Heater, A/C Control Module, Electro Chromic Mirror, Rear Seat Heater
WIPER (RR) 15 ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor
DOOR LOCK 20 Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Door Unlock Relay)
IBU1 15 IBU
BRAKE SWITCH 10 IBU, Stop Lamp Switch
P/SEAT PASS 25 Passenger Seat Manual Switch
A/C 7,5 A/C Control Module, Incar Temperature Sensor, A/C Control Panel, Cluster Ionizer, A/C Compressor, PE Room Junction Block (Blower Relay)
AIR BAG2 10 SRS Control Module
WASHER 15 Multifunction Switch
MDPS 7,5 MDPS Unit
MODULE7 7,5 Front Air Ventilation/Seat Heater Seat Control Module, AC Inverter, Rear Seat Heater, Surround View Monitor Unit, Rear Power Outlet
SUNROOF2 20 Sunroof Unit
SUNROOF1 20 Sunroof Unit
CLUSTER 7,5 Instrument Cluster
MODULE3 7,5 SCU, Shift Selection Switch (SBW), IDC, VPD Sensor, Stop Lamp Switch, HMU, BMS Control Module
START 7,5 FCU, IBU
IBU2 7,5 IBU
A/BAG IND 7,5 Instrument Cluster, A/C Control Panel
MODULE6 7,5 IBU
MODULE2 10 BMS Control Module, Wireless Charger, USB Charger LH/RH, A/V & Navigation Head Unit, Center Fascia Switch Panel, AMP, Surround View Monitor Unit, Power Outside Mirror Switch, IBU
AIR BAG1 15 SRS Control Module, Passenger Occupant Detection Sensor

Fuel cell power module compartment fuse panel

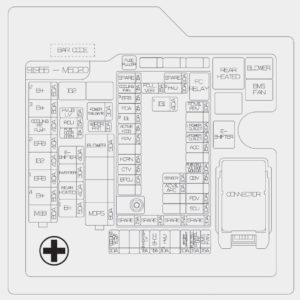

Hyundai Nexo - fuse box diagram - engine compartment
Hyundai Nexo – fuse box diagram – engine compartment
Type Fuse name [A] Circuit protected
MULTI FUSE-1 B+2 60 ICU Junction Block (IPS Control Module, IPS1)
B+3 60 ICU Junction Block (IPS Control Module)
COOLING PE PUMP 40 PE Room Coolant Pump (CPP)
EPB2 40 Electronic Brake Control Module
IG2 40 PE Room Junction Block (IG2 Relay)
EPB1 40 Electronic Brake Control Module, PE Room Junction Block (Multipurpose Check Connector)
B+4 60 ICU Junction Block (Fuse – SUNROOF1, SUNROOF2, AMP, P/SEAT DRV, P/SEAT PASS, S/HEATER FRT, P/WINDOW LH, P/WINDOW RH, TAIL GATE OPEN)
IMEB 80 Electronic Brake Control Module
MULTI FUSE-2 BLOWER 50 PE Room Junction Block (Blower Relay)
MDPS 80 MDPS Unit
FUSE HVJB LV 15 HV Junction Block
RCU 15 Driver / Passenger Auto Flush Door Handle Module, Rear Auto Flush Door Handle Module LH/RH
FUEL DOOR OPEN 7,5 ICM Relay Box (Fuel Filler Door Relay)
E-SHIFTER 40 PE Room Junction Block (E-Shifter Relay)
INVERTER 30 AC Inverter
REAR HEATED 40 PE Room Junction Block (Rear Heated Relay)
B+1 50 ICU Junction Block ((Fuse – MODULE1, AIR BAG2, MODULE8, S/HEATER RR, DOOR LOCK, IBU1, BRAKE SWITCH), Leak Current Autocut Relay)
POWER TAIL GATE 30 Power Tail Gate Module
WIPER FRT 30 Front Wiper Motor
COOLING STACK PUMP 10 Stack Coolant Pump (CSP)
INVERTER LV 7,5 Inverter
BHDC 7,5 IDC
HMU1 10 HMU
BATTERY MANAGEMENT 10 BMS Control Module
FUEL CELL CONTROL UNIT 15 FCU
BMS FAN 15 PE Room Junction Block (BMS FAN Relay)
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
