Hyundai Tucson (2015) – fuse box diagram
Year of production: 2015

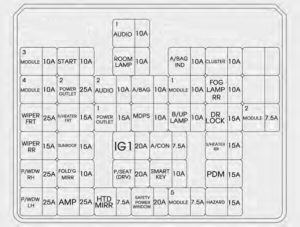

Instrument panel
| Fuse name | Ampere rating [A] | Protected component | |
| POWER CONNECTOR | AUDIO 1 | 10 | Audio, A/V & Navigation Head Unit, MTS Module |
| ROOM LAMP | 10 | BCM, Auto Light & Photo Sensor, Date Link Connector, Ignition Key Illumination & Door Warning Switch, A/C Control Module, Luggage Lamp, IPS Control Module, Instrument Cluster (Indicator), Electro Chromic Mirror, Engine Room Fuse & Relay Box (Interior Lamp Relay) | |
| MODULE 3 | 10 | IPS Control Module, BCM, Electro Chromic Mirror, Smart Key Control Module, ICM Relay Box (Rear Seat Heater Left/Right Relay) | |
| START | 10 | [W/O Immobilizer] Burglar Alarm Relay [With Immobilizer] Engine Room Fuse & Relay Box (Start Relay) |
|
| AIR BAG IND. | 10 | Instrument Cluster (Air Bag Indicator) | |
| CLUSTER | 10 | Audio, Console Switch, Instrument Cluster (Indicator), BCM, Alternator, A/V & Navigation Head Unit, MTS Module, Electro Chromic Mirror, A/C Control Module | |
| MODULE 4 | 10 | Engine Room Fuse & Relay Box (Blower Relay, Head Lamp High Relay), Cluster Ionizer, A/C Control Module, Sunroof Motor | |
| POWER OUTLET 2 | 25 | Cigarette Lighter & Front Power Outlet, Rear Power Outlet | |
| AUDIO 2 | 10 | Power Outside Mirror Switch, AMP, BCM, A/V & Navigation Head Unit, Audio, MTS Module, Smart Key Control Module | |
| AIR BAG | 10 | SRS Control Module, Passenger Occupant Detection Sensor, Telltale Lamp | |
| MODULE 1 | 10 | IPS Control Module, Tire Pressure Monitoring Module, ESC Off Switch, ATM Shift Lever Indicator, DBC Switch, Multifunction Switch (Light), Stop Lamp Switch, 4WD ECM | |
| FOG LAMP RR | 10 | — | |
| WIPER FRT | 25 | Front Wiper Motor, Multifunction Switch (Wiper), Engine Room Fuse & Relay Box (Wiper Front, Low Relay) | |
| S/HEATER FRT | 15 | Console Switch | |
| POWER OUTLET 1 | 15 | Cigarette Lighter & Front Power Outlet | |
| MDPS | 10 | MDPS Unit | |
| BACK-UP LAMP | 10 | BCM, Audio, Electro Chromic Mirror, Rear Combination Lamp (IN) Left/Right, A/V & Navigation Head Unit | |
| DR LOCK | 15 | Door Lock Relay, Tail Gate Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay) | |
| MODULE 2 | 7,5 | BCM, Smart Key Control Module | |
| WIPER RR | 15 | ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor, Multifunction Switch (Wiper) | |
| SUNROOF | 15 | Sunroof Motor | |
| IG 1 | 20 | Engine Room Fuse & Relay Box(ECU 2 7.5A, ABS 3 7.5A, TCU 2 7.5A) | |
| A/CON | 7,5 | A/C Control Module | |
| S/HEATER RR | 15 | ICM Relay Box (Rear Seat Heater Left/Right Relay) | |
| P/WDW RH | 25 | Power Window Main Switch, Passenger Power Window Switch, Rear Right Power Window Switch | |
| FOLD’G MIRR | 10 | — | |
| P/SEAT DRV | 20 | Driver Seat Manual Switch | |
| SMART KEY | 10 | Smart Key Control Module, Engine Start/Stop Button | |
| PDM | 15 | Smart Key Control Module | |
| P/WDW LH | 25 | Power Window Main Switch, Rear Left Power Window Switch | |
| AMP | 25 | AMP | |
| HTD MIRR | 7,5 | Rear Defogger Switch, Driver/Passenger Power Outside Mirror | |
| SAFETY P/WDW | 20 | Driver Safety Power Window Module | |
| MODULE 5 | 7,5 | ATM Shift Lever, Tire Pressure Monitoring Module | |
| HAZARD | 15 | ICM Relay Box (Flasher Sound Relay), BCM | |
Engine compartment fuse panel
| Fuse name | Ampere rating [A] | Circuit protected | |
| MULTI FUSE | MDPS | 80 | MDPS Unit |
| B+1 | 60 | Smart Junction Box (DR LOCK 15A, HAZARD 15A, PDM 15A, S/HEATER RR 15A) | |
| ABS 2 | 40 | Multipurpose Check Connector, ESC Module | |
| EMS | 40 | EMS Box (TCU 1 15A, ECU 3 30A, A/CON 10A, F/PUMP 15A) | |
| ABS 1 | 40 | Multipurpose Check Connector, ESC Module | |
| BLOWER | 40 | Blower Relay | |
| B+3 | 60 | Smart Junction Box (P/SEAT(DRV) 20A, SAFETY POWER WINDOW 20A, SMART KEY 10A, MODULE 5 7.5A, Power Connector (AUDIO 1 10A, ROOM LAMP 10A), IPS-1CH, IPS-2CH) | |
| B+2 | 80 | Smart Junction Box (Power Window Relay, SUNROOF 15A, AMP 25A, IPS-1CH) | |
| FUSE | C/FAN | 40 | Engine Room Fuse & Relay Box (C/FAN LO Relay, C/FAN HI Relay) |
| RR HTD | 40 | Engine Room Fuse & Relay Box (RR HTD Relay) | |
| B+4 | 30 | Engine Room Fuse & Relay Box (H/LAMP HI 10A) | |
| IG 1 | 30 | Ignition Switch, PDM Relay Box (IGN 1 Relay) | |
| IG 2 | 40 | Engine Room Fuse & Relay Box (Start Relay), Ignition Switch, PDM Relay Box (IGN 2 Relay) | |
| HORN | 15 | Engine Room Fuse & Relay Box (Horn Relay, B/A Horn Relay) | |
| DEICER | 15 | Engine Room Fuse & Relay Box (Deicer Relay) | |
| STOP LAMP | 10 | Stop Lamp Switch, Stop Signal Electric Module, Smart Key Control Module | |
| AMS | 10 | Battery Sensor | |
| 4WD | 20 | 4WD ECU | |
| H/LAMP HI | 10 | Engine Room Fuse & Relay Box (H/LAMP HI Relay) | |
| ECU 2 | 7,5 | PCM/ECM, Clock Spring | |
| ABS 3 | 7,5 | Multipurpose Check Connector, ESC Module | |
| TCU 2 | 15 | Transaxle Range Switch (A/T), Vehicle Speed Sensor (M/T), Back-up Lamp Switch (M/T) | |
| F/PUMP | 15 | EMS Box(F/PUMP Relay) | |
| SENSOR 4 | 15 | E/R Fuse & Relay Box(C/FAN HI, LO Relay), EMS Box(F/PUMP Relay), Oxygen Sensor (Up, Down) | |
| SENSOR 3 | 10 | EMS Box(A/CON Relay) | |
| SENSOR 2 | 10 | — | |
| SENSOR 4 | 10 | PCM | |
| TCU 1 | 15 | EMS Box(A/CON Relay) | |
| A/CON | 10 | Immobilizer Module, Crankshaft Position Sensor, Camshaft Position Sensor #1/2, Oil Control Valve #1/2, Purge Control Solenoid Valve, Variable Intake Manifold Valve, Canister Close Valve | |
| ECU 1 | 20 | Ignition Coil (#1, #2, #3, #4), Condenser | |
| ECU 3 | 30 | EMS Box(Engine Control Relay) | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
