Hyundai Tucson (2016) – fuse box diagram
Year of production: 2016
Instrument panel
| Fuse name | Ampere rating [A] | Protected component |
| A/CON1 | 7,5 | A/C Control Module, Cluster Ionizer (Auto A/C), E/R Junction Block (Blower Relay) |
| WIPER RR | 15 | ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor |
| MODULE6 | 10 | BCM, Smart Key Control Module |
| WASHER | 15 | Multifunction Switch (Washer Switch) |
| MODULE5 | 7,5 | Crash Pad Switch, Parking Assist Buzzer, BCM, ATM Shift Lever, 4WD ECM, AEB Sensor, Console Switch, Blind Spot Detection Radar LH/RH, Lane Departure Warning Control Module, Lane Keeping Assist Control Module |
| AIR BAG | 15 | SRS Control Module, Passenger Occupant Detection Sensor |
| MODULE1 | 10 | BCM, Smart Key Control Module, AUDIO, A/V & Navigation Head Unit, TMU Module, AMP, Power Outside Mirror Switch, PCB Block (Power Outlet Relay) |
| START | 10 | ICM Relay Box (Burglar Alarm Relay), Transaxle Range Switch |
| MODULE7 | 7,5 | Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, Rear Seat Warmer |
| HEATED STEERING | 15 | BCM |
| MODULE8 | 7,5 | Driver/Passenger Power Outside Mirror, Center Facia Switch, Key Solenoid, AEB Sensor |
| MODULE4 | 7,5 | Data Link Connector, A/C Control Module, Head Lamp LH/RH, A/V & Navigation Head Unit, Electro Chromic Mirror, TMU Module, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, Rear Seat Warmer |
| A/BAG IND | 7,5 | Instrument Cluster, Center Facia Switch |
| MODULE3 | 10 | BCM, ATM Shift Lever, IPS Control Module (ON/START Input) |
| SMART KEY1 | 15 | Smart Key Control Module |
| 4WD | 20 | 4WD ECM |
| TAILGATE OPEN | 10 | Tail Gate Open Relay |
| S/HEATER RR | 15 | Rear Seat Warmer |
| S/HEATER RR | 15 | Rear Seat Warmer |
| MDPS | 7,5 | MDPS Unit |
| SMART KEY3 | 7,5 | Smart Key Control Module, Immobilizer Module |
| CLUSTER | 7,5 | Instrument Cluster (IG1 Power), ATM Shift Lever ILL. |
| SMART KEY2 | 10 | Smart Key Control Module, Start/Stop Button Switch, Immobilizer Module |
| MULTIMEDIA | 15 | Audio, A/V & Navigation Head Unit, TMU Module |
| INTERIOR LAMP | 10 | Ignition Key Ill. & Door Warning Switch, Luggage Lamp, Glove Box Lamp, Overhead Console Lamp, Front Vanity Lamp LH/RH, Room Lamp, Rear Personal Lamp LH/RH |
| DOOR LOCK | 20 | Door Lock Relay, Door Unlock Relay, ICM Relay Box (Two Turn Unlock Relay) |
| SUNROOF2 | 20 | Panorama Sunroof |
| POWER OUTLET | 20 | Front Power Outlet & Cigarette Lighter |
| BRAKE SWITCH | 7,5 | Smart Key Control Module, Stop Lamp Switch |
| MEMORY2 | 10 | Data Link Connector, BCM, Instrument Cluster, A/C Control Module, Auto Light & Photo Sensor, Electro Chromic Mirror, ICM Relay Box (Outside Mirror Folding/Unfolding Relay) |
| P/SEAT (PASS) | 30 | Passenger Seat Manual Switch |
| S/HEATER FRT | 20 | Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
| SUNROOF1 | 20 | Panorama Sunroof |
| MODULE2 | 20 | PCB Block (Fuse – ABS3, ECU6, TCU2, MODULE1, MODULE2) |
| A/CON2 | 7,5 | A/C Control Module |
| HEATED MIRROR | 10 | Driver/Passenger Power Outside Mirror, A/C Control Module, ECM (G4FJ) |
| P/SEAT (DRV) | 30 | Driver Seat Manual Switch |
| SAFETY P/WINDOW | 25 | Driver Safety Power Window Module |
| P/WINDOW RH | 25 | Power Window Main Switch, Passenger Power Window Switch |
| P/WINDOW LH | 25 | Power Window Main Switch |
| AMP | 25 | AMP |

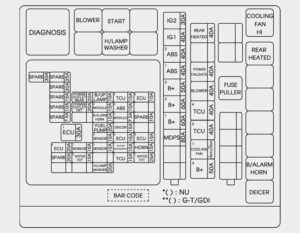

Engine compartment fuse panel
| Fuse name | Ampere rating [A] | Circuit protected | |
| MULTI FUSE | MDPS | 80 | MDPS Unit |
| B+1 | 60 | Smart Junction Block (ARISU-LT IPS 1, IPS 2, IPS 3, IPS 4, Fuse – AMP) | |
| B+2 | 60 | Smart Junction Block (ARISU-LT IPS 5, IPS 6, IPS 7, IPS 8, Fuse – SMART KEY1, SMART KEY2, BRAKE SWITCH) | |
| B+3 | 50 | Smart Junction Block (Fuse – SUNROOF1, SUNROOF2, S/HEATER FRT, S/HEATER RR, SAFETY P/WINDOW, Power Window Relay (Fuse – P/WINDOW LH, P/WINDOW RH) | |
| ABS1 | 40 | ESC Module, Multipurpose Check Connector | |
| ABS 2 | 40 | ESC Module, Multipurpose Check Connector | |
| IG1 | 40 | Ignition Switch (W/O Smart Key), PCB Block (PDM (IG1)/PDM (ACC) Relay – With Smart Key) | |
| IG2 | 30 | Start Relay, Ignition Switch (W/O Smart Key), PCB Block (PDM (IG2) Relay – With Smart Key) | |
| FUSE | B+4 | 50 | Smart Junction Block (Fuse – MODULE8, 4WD, P/SEAT (DRV), P/SEAT (PASS), TAILGATE OPEN, DOOR LOCK, Leak Current Autocut Device – Fuse Switch, INTERIOR LAMP, MULTIMEDIA, MEMORY2) |
| COOLING FAN1 | 40 | [G4NC] Cooling Fan High Relay | |
| 50 | [G4FJ] Cooling Fan High Relay | ||
| TCU3 | 40 | [G4FJ – 7DCT] TCM | |
| TCU4 | 40 | [G4FJ – 7DCT] TCM | |
| BLOWER | 40 | Blower Relay | |
| POWER TAILGATE | 40 | Power Tail Gate Module | |
| REAR HEATED | 40 | Rear Defogger Relay | |
| WIPER FRT1 | 25 | Ignition Switch (W/O Smart Key), PDM (IG2) Relay (With Smart Key) | |
| TCU1 | 15 | [G4FJ] TCM (7DCT) | |
| WIPER FRT2 | 10 | BCM | |
| ECU3 | 20 | PCM (G4NC) / ECM (G4FJ) | |
| HORN | 15 | Horn Relay | |
| BATTERY MANAGEMENT | 10 | Battery Sensor | |
| SENSOR2 | 10 | [G4NC] Oil Control Valve #1/#2, Camshaft Position Sensor #1/#2, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, Canister Close Valve, Fuel Pump Relay [G4FJ] Oil Control Valve #1/#2, Purge Control Solenoid Valve, Canister Close Valve, Fuel Pump Relay |
|
| SENSOR1 | 15 | [G4NC] PCM, Oxygen Sensor (Up)/(Down) [G4FJ] ECM, Oxygen Sensor (Up)/(Down) | |
| ECU2 | 20 | IGNITION COIL #1/#2/#3/#4, Condenser (G4NC) | |
| ECU5 | 15 | PCM (G4NC) / ECM (G4FJ) | |
| ECU4 | 15 | PCM (G4NC) / ECM (G4FJ) | |
| SENSOR3 | 10 | [G4NC] E/R Junction Block (Cooling Fan High Relay) [G4FJ] Brake Vacuum Switch, RCV Control Solenoid Valve, E/R Junction Block (Cooling Fan High Relay) |
|
| DEICER | 15 | E/R Junction Block (Front Deicer Relay) | |
| FUEL PUMP1 | 25 | Fuel Pump Relay | |
| MODULE1 | 7,5 | Adaptive Front Lighting Module | |
| B/ALARM HORN | 10 | E/R Junction Block (B/Alarm Horn Relay) | |
| ABS3 | 10 | ESC Module | |
| MODULE2 | 10 | [G4FJ] Vacuum Pump | |
| POWER OUTLER FRT | 20 | Front Power Outlet & Cigarette Lighter | |
| ECU6 | 10 | PCM (G4NC) / ECM (G4FJ) | |
| TCU2 | 15 | Transaxle Range Switch, TCM (G4FJ – 7DCT) | |
| B/UP LAMP | 10 | PCM (G4NC) / TCM (G4FJ), Transaxle Range Switch, Audio, A/V & Navigation Head Unit, Electro Chromic Mirror, Rear Combination Lamp (IN) LH/RH | |
| POWER OUTLER REAR | 20 | Rear Power Outlet | |
| ECU1 | 30 | Engine Control Relay | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
