Infiniti QX60 (2012 – 2017) – fuse box diagram

Infiniti QX60 (2012 – 2017) – fuse box diagram

Year of  production: 2012, 2013, 2014, 2015, 2016, 2017

Passenger Compartment Fuse Box

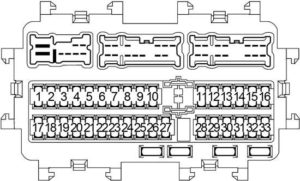

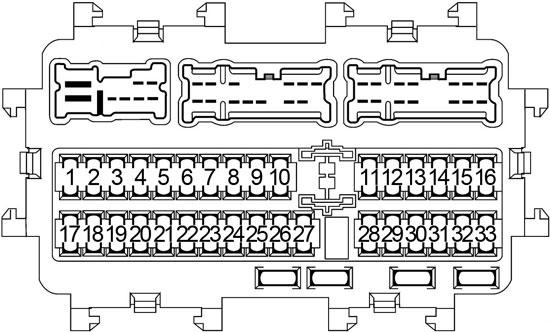

Infiniti QX60 - fuse box diagram - passenger compartment fuse box
Infiniti QX60 – fuse box diagram – passenger compartment fuse box
No. A
Circuit Protected
1 10 Body Control Module (BCM), Warning System Switch, Auto Anti-Dazzling Inside Mirror, Auto Light System, Automatic Drive Positioner Back-Up Lamp, Daytime Light System, Drive Assistance System, Front Fog Lamp, Front Wiper and Washer System, Headlamp, Headlamp Aiming System, Homelink Universal Transceiver, Illumination, Inside Mirror, Intelligent Key System/Engine Start Function, Interior Room Lamp, IVIS, Moonroof System, Parking Lamps, License Plate Lamps, Tail Lamps, Power Door Lock System, Power Seats, Power Window System, Rear Window Defogger, Rear Wiper and Washer System, Tire Pressure Monitoring System, Trailer Tow, Turn Signal and Hazard Warning Lamps, Vehicle Security System, Warning Chime System, Seat Memory Switch
2 15 Body Control Module (BCM)
3 15 Body Control Module (BCM), Power Door Lock System, Intellgent Key System/Engine Start Function, Vehicle Security System
4 15 Body Control Module (BCM), Power Door Lock System, Intellgent Key System/Engine Start Function, Vehicle Security System
5  –
6  –
7  –
8  –
9 20 Rear Cargo Power Socket
10 10 Stop Lamp Switch, Body Control Module (BCM), Intelligent Cruise Control (ICC) Brake Hold Relay, Engine Control Module (ECM)
11 15 Bose Audio Amplifier
12 15 Bose Audio Amplifier
13 10 Combination Meter
14 5 Air Conditioner Control, Drive Mode System, Heated Steering Wheel, Pre-Crash Seat Belt System, Rain Sensor
15 15 Audio System, AV Control Unit, Display Unit, Satellite Radio Tuner, Bluetooth Control Unit, Video Distributor, Rear Auxiliary Input Jacks, Headrest Display Unit, Telematic Control Unit (TCU)
16 5 Body Control Module (BCM)
17 15 Front Blower Motor
18  –
19 20 Cigarette Lighter
20 20 Rear Console Power Socket
21 20 Front Console Power Socket
22 10 Door Mirror Defogger
23 15 Rear Window Defogger
24 15 Rear Window Defogger
25 10 Intelligent Key Warning Buzzer, Push-Button Ignition Switch, All-Wheel Drive (AWD) Control Module, Data Link Connector, Remote Keyless Entry Receiver, Seatback Power Return Control Unit, Transmission Control Module (TCM)
26 5 Headlamp Aiming Switch
27 15 Front Blower Motor
28 15 2nd Row Heated Seat
29 5 Audio System, AV Control Unit, Around View Monitor Control Unit, Telematic Control Unit (TCU), Sonar Control Unit, Auto Anti-Dazzling Inside Mirror, Trailer Tow Relay No.1, Trailer Tow Relay No.2, Trailer Back-Up Relay, Heated Seat Relay, Climate Controlled Seat Relay
30 10 Bluetooth Control Unit, Advanced Driver Assistance Systems (ADAS) Control Unit, Intelligent Cruise Control (ICC) Sensor, ICC Brake Hold Relay, Brake Pedal Position Switch, Engine Control Module (ECM), Warning Buzzer, Side Radar (LH/RH), Lane Camera Unit, Data Link Connector, Electronic Controlled Engine Mount Control Solenoid Valve, Air Conditioner Control, Ionizer, Exhaust Gas/Outside Odor Detecting Sensor, PTC Relay No.1, PTC Relay No.2, A/C 120V Outlet Main Switch, Power Seat
31 5 Combination Meter
32 10 Air Bag Diagnosis Sensor Unit, Occupant Classification System Control Unit
33  –

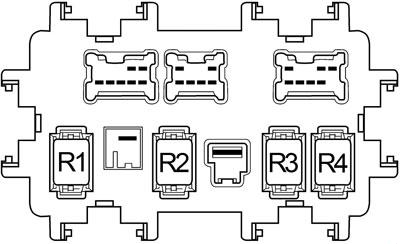

Infiniti QX60 - fuse box diagram - passenger compartment relay box
Infiniti QX60 – fuse box diagram – passenger compartment relay box
No.
Relay
R1 Ignition No.2
R2 Blower Motor
R3 Rear Window Defogger
R4 Accessory No.1

Engine Compartment Fuse Box No. 1

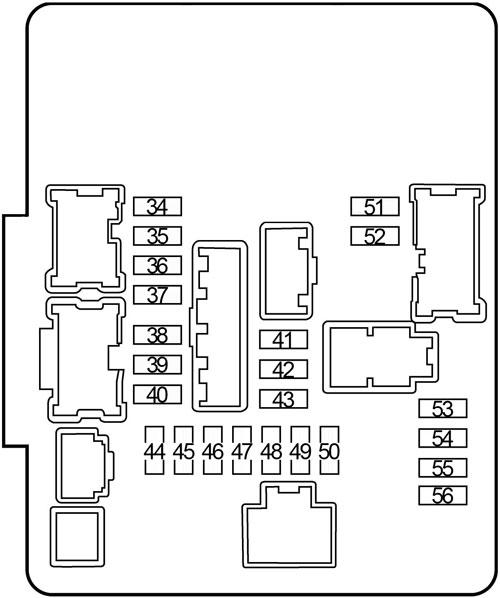

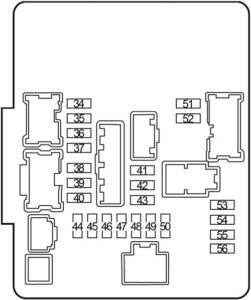

Infiniti QX60 - fuse box diagram - engine compartment fuse box no. 1
Infiniti QX60 – fuse box diagram – engine compartment fuse box no. 1
No.
A
Circuit Protected
34 10 Right Headlamp (High Beam)
35 10 Left Headlamp (High Beam)
36 15 Right Headlamp (Low Beam)
37 15 Left Headlamp (Low Beam)
38 10 Engine Control Module (ECM), VIAS Control Solenoid Valve, EVAP Canister Vent Control Valve, Throttle Control Motor Relay
39 10 Engine Control Module (ECM), EVAP Canister Purge Volume Control Solenoid Valve, Intake Valve Timing Control Solenoid Valve, Intake Valve Timing Intermediate Lock Control Solenoid Valve, Exhaust Valve Timing Control Solenoid Valve, Mass Air Flow Sensor
40 15 Heated Oxygen Sensors, Air Fuel Ratio Sensors
41 30 Front Wiper Relay
42 15 Front Fog Lamp Relay
43 10 Daytime Running Light Relay
44 15 Ignition Coils, Condenser, Engine Control Module (ECM)
45 10 Fuel Injectors, Engine Control Module (ECM)
46 10 Transmission Range Switch, Transmission Control Module (TCM), Primary Speed Sensor, Input Speed Sensor, Output Speed Sensor
47 15 Fuel Pump Relay
48 10 Cooling Fan Relay, Headlamp Aiming Motors, Headlamp Aiming Switch, Transmission Range Sensor
49 10 All-Wheel Drive (AWD) Control Unit, Power Steering Control Module, ABS Solenoid Valve Relay, ABS Motor Relay, Steering Angle Sensor, Yaw Rate/Side/Decel G Sensor
50 10 Front and Rear Washer System, Combination Switch
51 10 Tail Lamps, License Plate Lamps, Trailer Tow Relay No.1, Headlamp Aiming Switch, Glove Box Lamp, Illumination
52 10 Parking Lamps, Side Marker Lamps
53 10 A/C Relay
54  –
55 15 Throttle Control Motor Relay
56 10 Engine Control Module (ECM)

Engine Compartment Fuse Box No.2

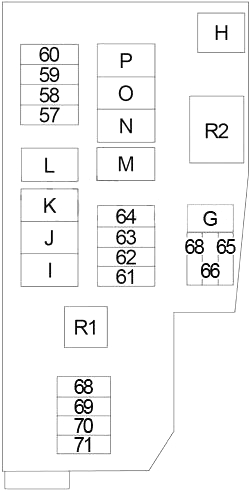

Infiniti QX60 - fuse box diagram - engine compartment fuse box no. 2
Infiniti QX60 – fuse box diagram – engine compartment fuse box no. 2
No.
A
Circuit Protected
57 10 Alternator, Anti Theft Horn Relay
58 10 BOSE Audio System
59 30 PTC Relay No.1 (PTC Heater)
60 30 PTC Relay No.2 (PTC Heater)
61 30 Trailer Tow Relay No.2 (Trailer Receptacle)
62 10 All-Wheel Drive (AWD) Control Unit
63 15 Horn Relay, Intelligent Key System
64 30 Seatback Power Return Control Unit
65 10 Accessory Relay No.2 (AV Control Module, Satellite Radio Tuner, A/C and AV Switch Assembly, Bluetooth Control Unit, Power Seat, Around View Monitor Control Unit, Video Distributor, Rear Auxiliary Input Jacks, Telematic Control Unit (TCU), Telematics Switch, Power Mirror Remote Control Switch, Combination Meter)
66 15 Passenger Side: Climate Controlled Seat, Heated Seat
67 10 Trailer Tow Relay No.1 (Trailer Receptacle)
68 15 Driver Side: Climate Controlled Seat, Heated Seat
69 30 Inverter System
70 20 Rear Blower Motor Relay
71 20 Rear Blower Motor Relay
G 30 Electric Brake (Trailer)
H 60 Cooling Fan Relay
I 50 ABS (Motor Relay)
J 30 ABS (Solenoid Valve Relay)
K 40 Ignition Relay No.2 (Fuse: “28”, “29”, “30”, “31”, “32”), Starter Relay, Starter Control Relay
L 30 Pre-Crash Seat Belt System (Driver Side)
M 30 Pre-Crash Seat Belt System (Passenger Side)
N 40 Automatic Back Door System
O 40 Body Control Module (BCM), Auto Light System, Automatic Back Door System, Back-Up Lamp, CVT Shift Lock System, Daytime Light System, Front Fog Lamp, Front Wiper and Washer System, Headlamp, Headlamp Aiming System, Heated Steering Wheel, Illumination, Intelligent Key System/Engine Start Function, Intelligent Key System, Interior Room Lamp, IVIS, Moonroof System, Parking Lamps, License Plate Lamps, Tail Lamps, Power Door Lock System, Power Seats, Power Window System, Rear Window Defogger, Rear Wiper and Washer System, Tire Pressure Monitoring System, Trailer Tow, Turn Signal and Hazard Warning Lamps, Vehicle Security System, Warning Chime System, Automatic Drive Positioner, Tilt & Telescopic Steering Column
P  –
Relay
R1 Horn
R2 Cooling Fan

Engine Compartment Relay Box No.1



Infiniti QX60 - fuse box diagram - engine compartment relay box no. 1
Infiniti QX60 – fuse box diagram – engine compartment relay box no. 1
No.
A
Circuit Protected
72 10 Trailer Back-Up Relay
73 15 Trailer Tow Turn Relay (LH), Trailer Tow Turn Relay (RH)
74
10
Heated Steering Relay
Relay
R1 PTC No.2
R2 Intelligent Cruise Control (ICC) Brake Hold
R3 Accessory No.2
R4  –
R5 PTC No.1

Engine Compartment Relay Box No.2

Infiniti QX60 - fuse box diagram - engine compartment relay box no. 2
Infiniti QX60 – fuse box diagram – engine compartment relay box no. 2
No.
A
Circuit Protected
75
10
Driver Assistance System
Relay
R1  –
R2  –
R3  –
R4 Daytime Running Light

Fusible Link Block

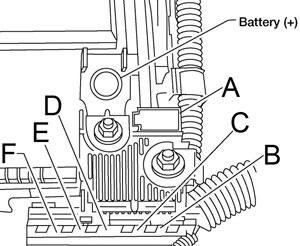

Infiniti QX60 - fuse box diagram - fusible link block
Infiniti QX60 – fuse box diagram – fusible link block
No.
A
Circuit Protected
A 250 Generator, Starter, Fuse: “B”, “C”, “D”
B 100 Fuse: “57”, “58”, “59”, “60”, “61”, “62”, “63”, “64”, “72”, “73”, “H”, “I”, “J”, “K”, “L”, “M”, “N”, “O”
C 80 Headlamp High Relay (Fuse: “34”, “35”), Headlamp Low Relay (Fuse: “36”, “37”), Tail Lamp Relay (Fuse: “51”, “52”), Fuse: “41”, “42”, “43”, “68”, “69”, “70”, “71”
D 100 Power Steering Control Module
E 80 Engine Control Module Relay (Fuse: “38”, “39”, “40”), Ignition Relay No.1 (Fuse: “44”, “45”, “46”, “47”, “48”, “49”, “50”) Fuse: “53”, “55”, “56”
F 100 Accessory Relay No.1 (Fuse: “19”, “20”, “21”), Rear Window Defogger Relay (Fuse: “22”, “23”, “24”), Blower Motor Relay (Fuse: “17”, “27”), Fuse: “1”, “2”, “3”, “4”, “9”, “10”, “11”, “12”, “13”, “14”, “15”, “16”, “25”, “65”, “66”, “67”, “G”

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
