Iran Khodro (IKCO) Samand- fuse box diagram
Year of production:

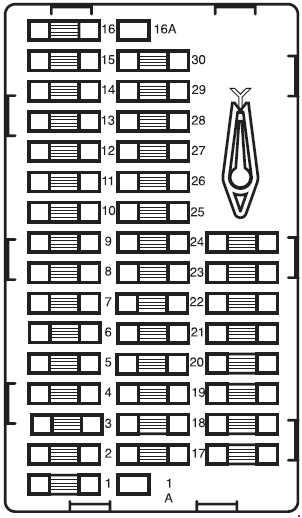

Fuse Box (type 1)
The fuse box locates in left rear of the engine compartment near to the wiper electromotor.
| Number | Ampere ratting [A] | Description |
| F1 | 10 | Radio & Handsfree |
| F2 | 5 | Control Unit |
| F3 | 5 | Anti-Lock Brake |
| F4 | 5 | Beep Sound, Right Indicators & Lamps |
| F5 | 5 | Air Conditioner |
| F6 | 10 | Air Bag / Cruise Control |
| 30 | ABS | |
| F7 | 20 | Horn |
| F8 | — | Shunt: To disconnect all fuses |
| F9 | 5 | Left Indicator Lamps, Number Plate Light |
| F10 | 30 | Electric Rear Window Regulator |
| F11 | 30 | Front Headlights |
| F12 | 5 | Reverse Gear Lights, Rear Sensors |
| F13 | 20 | Front Fog Tails |
| F14 | 30 | ABS |
| F15 | 15 | Door Lights, Courtesy Lights & Electrical Aerial |
| F16 | 20 | Cigarette Lighter |
| F17 | 10 | Alarm, Anti-Theft, Audio System Memory |
| F18 | 10 | Rear Fog Tails |
| F19 | 5 | Heater/ Display / Radio/ Switch Lights |
| F20 | 30 | Automatic Backrest of Front Seat |
| F21 | 30 | Blower Relay |
| F22 | 10 | — |
| F23 | 5 | Rear Window Heater Switch |
| F24 | 20 | Wiper Engine/ Wiper Timer / Washer Pump |
| F25 | 5 | Radio/ Clock Memory, Water Ampere (Coolant Temperature Unit) |
| F26 | 15 | Flashers |
| F27 | 30 | Rear Window Heater, Mirror Heater |
| F28 | 10 | Instrument Panel Screen/Digital Clock/ Brake Warning Light |
| F29 | 30 | Electrical Front Window Regulator |
| F30 | 10 | Map Reading Light/ Glove Box/ Vanity Mirror/Electric Mirror |
Engine Compartment Fuse Box
The fuse box locates in the right of the engine compartment.
| Fuse | Ampere ratting [A] | Description |
| F31 | 30 | Fan 1 |
| F32 | 30 | Fan 2 |
| — | — | Spare Fuse |
| — | — | Spare Fuse |
| F33 | — | Shunt:Ignition Switch |
| F34 | — | Shunt:Main Lamp / Dipped Beam |
| F35 | 30 | ABS |
| F36 | 30 | ABS |

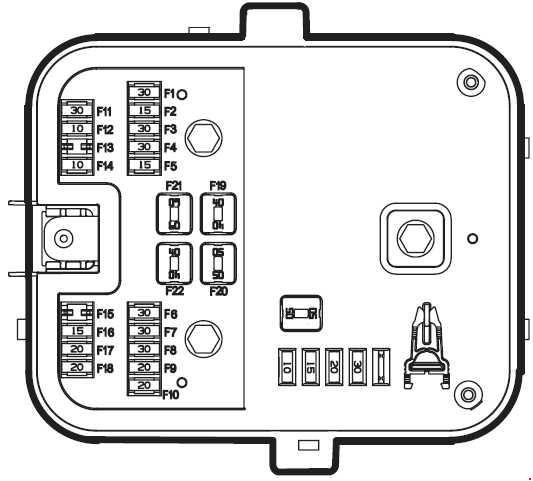

Fuse Box (type 2)
The fuse box locates in the right of the engine compartment.
| Fuse | Ampere ratting [A] | Description |
| F1 | 30 | Wiper motor |
| F2 | 15 | AC compressor Wiper washer |
| F3 | 30 | Double relay 2 |
| F4 | 30 | Double relay 1 |
| F6 | 30 | ABS brake 2 |
| F7 | 30 | ABS brake 1 |
| F8 | 30 | Fan 1 |
| F9 | 20 | Right mirror heater Right front mirror indicator Right front window regulator Right front door functioning motor Right mirror motor Right folding mirror Right front door light Map reading light key Door feeding node |
| F10 | 20 | Left mirror heater Left front mirror indicator Left front window regulator Left front door functioning motor Left mirror motor Left folding mirror Left front door light Door feeding node |
| F11 | 30 | Horn |
| F12 | 10 | Door feeding node Alarm feeding |
| F14 | 10 | ECU |
| F16 | 15 | Right front fog lamp Left front fog lamp |
| F17 | 20 | Left front indicator Left main beam lamps Left Night warning lamp Right dipped head lamps |
| F18 | 20 | Right front indicator Right main beam lamps Right Night warning lamp Left dipped head lamps |
| F19 | 40 | Central node feeding 2 |
| F20 | 50 | Start feeding |
| F21 | 60 | Central node feeding 2 |
| F22 | 40 | Fan 2 |

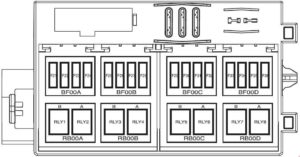

The location of this node is under the steering wheel.
| Fuse | Ampere ratting [A] | Description |
| F1 | 20 | Front seat electricity |
| F2 | 10 | Ignition switch 1, 2 Cruise control electricity Brake switch electricity Raining sensor electricity Radio electricity |
| F3 | 20 | Lighter electricity |
| F4 | 10 | — |
| F5 | 30 | Ventilation fan |
| F6 | 20 | Starter |
| F7 | 10 | — |
| F8 | 5 | CCN electricity Immobilizer electricity |
| F9 | 15 | Right rear indicator Left rear fog lamp Right rear gear lamp Left brake lamp Plate lamp Right rear night warning lamp Rear window key regulator lamp RN electricity |
| F10 | 15 | Left rear indicator Right rear fog lamp Left rear gear lamp Right brake lamp Rear & front roof lamp controlled by doors Left rear night warning lamp RN electricity |
| F11 | 30 | Electrical motivator of boot Electrical motivator of rear doors Electrical motivator of petrol tank Rear door & boot lamp Rear & front roof lamp in permanent position |
| F12 | 20 | — |
| F13 | 20 | Rear window & mirror heater Left rear electrical window regulator Right rear electrical window regulator |
| F14 | 15 | Radio & memory of radio Diagnostic connector electricity |
| F15 | 5 | Raining sensor Instrument panel light & central consul Map reading lamp Glove box lamp vanity mirror & electrical mirror CCN electricity Rear window heater &mirror heater key lamp Flasher key lamp Central lock key lamp Electrical motivator of boot key lamp FN electricity ICN electricity ICN memory |
| F16 | 5 | Diagnostic connector electricity after switch Ignition switch 2,3 ABS electricity |
| F17 | 10 | Air bag |
| F21 | 20 | Electric Seat Supply |
| F22 | 10 | Main switch supply (position 2) air bag unit and air conditioning system |
| F23 | 10 | Main switch supply (position 1) lighter |
| F24 | 10 | Main switch supply – position 1 (motivation of heater relay • Radio, brake, light, front node, central node and instrument panel), Motivation of Glass Heater Relay |
| F25 | 10 | Radio permanent supply |
| F26 | 20 | Central node supply |
| F27 | 20 | Central node supply |
| F28 | 30 | Central node supply and motivation of rear door motive relay |
| F29 | 30 | Rear Lifting Window |
| F30 | 30 | Central node supply (Front lifting window) |
| F31 | 30 | Rear window heater |
| F32 | 30 | Heater fan supply |
| F33 | 30 | Engine ignition |
| F34 | 10 | Main switch supply (position 2) immobilizer, diagnostic connector, instrument panel, cooler gas pressure sensor, engine unit |
| F35 | 5 | Main switch supply (position 2), Anti-brake system (ABS) |
| F36 | 10 | Immobilizer permanent supply, diagnostic connector, instrument panel |
| Relay | ||
| RLY1 | — | |
| RLY2 | Trunk Lid Electric Actuator | |
| RLY3 | Mirrors and rear window heater | |
| RLY4 | Ventilation Fan Relay | |
| RLY5 | Rear Lifting Window (Left) | |
| RLY6 | Rear Lifting Window (Left) | |
| RLY7 | Rear Lifting Window (Right | |
| RLY8 | Rear Lifting Window (Right | |

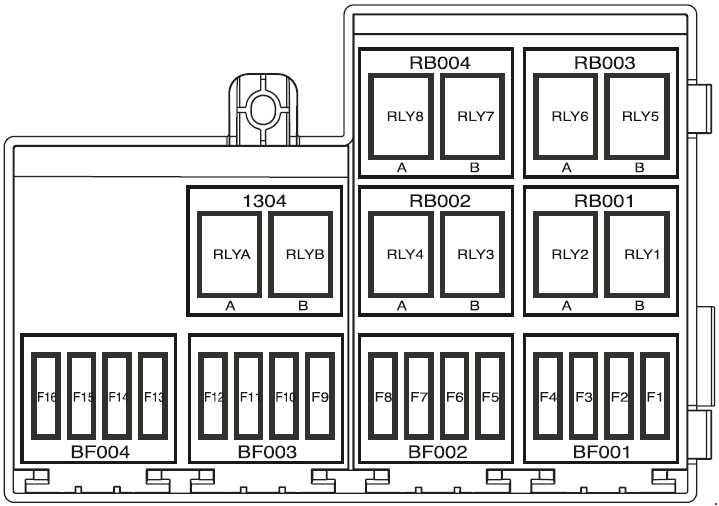

Engine Compartment Fuse Box
| Fuse | Ampere ratting [A] | Description |
| 1 | 40 | Electric supply for ignition switch |
| 2 | 30 | Relay switch for fog lamp/horn |
| 3 | 40 | BCM Inside systems electric connection supply |
| 4 | 30 | BCM Inside systems electric connection supply |
| 5 | 40 | Fan (High speed) |
| 6 | 30 | Fan (Low speed) |
| 7 | 30 | Brake (ABS) |
| 8 | 40 | Brake (ABS) |
| 9 | — | Reserve |
| 10 | 20 | Front node supply |
| 11 | 15 | Front node supply |
| 12 | 30 | Front node supply windshield wiper and relay for windshield washer pump |
| 13 | — | Spare |
| 14 | 30 | Double relay supply |
| 15 | 10 | Fuel pump supply |
| 16 | 10 | Engine unit supply |
| 17 | — | Reserve |
| 18 | — | Reserve |
| 19 | — | Reserve |
| 20 | — | Reserve |
| Relay | ||
| RLYa | Relay switch for engine control | |
| RLYb | Relay switch for fuel pump | |
| RLY1 | Relay switch for fog lamp | |
| RLY2 | Relay switch for horn | |
| RLY3 | Relay switch for windshield wiper | |
| RLY4 | Relay switch for windshield wiper | |
| RLY5 | Relay switch for fan (high speed) | |
| RLY6 | Relay switch for fan (low speed) | |
| RLY7 | Relay for fan | |
| RLY8 | Relay for windshield washer pump | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
