Isuzu Hombre (1996) – fuse box diagram
Year of production: 1996
Fuse box diagram

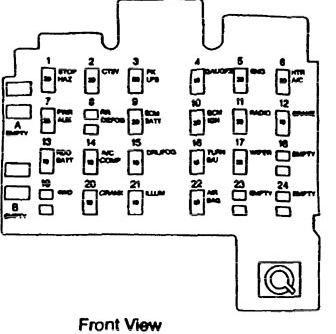

Front View

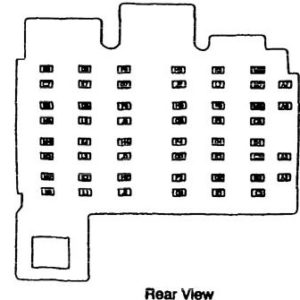

Rear View
| Number | Fuse name | Function | A | |
| 1 | STOP HAZ | 140 | AUDIO ALARM MODULE, STOPLAMP SWITCH | 20 |
| 2 | CTSY | 40 | LH COURTESY LAMP, CIGAREITE LIGHTER, I/P COMPARMENT BOX LAMP, HORN RELAY, RH COURTESY LAMP, DOME LAMP |
20 |
| 3 | PK LPS | 240 | HEADLAMP SWITCH, UNDERHOOD LAMP | 20 |
| 4 | GAUGES | 39 | INSTRUMENT CLUSTER, AUDIO ALARM MODULE, A/C COMPRESSOR CLUTCH RELAY, DERM, DRL RELAY, DRL MODULE |
10 |
| 5 | ENG | 539 | LINEAR EGR SOLENOID VALVE, EVAPORATIVE EMISSIONS CANSI’TER PURGE SOLENOID, EVAPORTIVE EMISSIONS CANISTER VENT VALVE, POST CONVERTER OXYGEN SENSOR HEATER, POWERTRAIN CONTROL MODULE (PCM) | 20 |
| 6 | HTR A/C | 141 | HVAC SELECT SWITCH, OUTSIDE AIR VALVE AC’TUATOR | 20 |
| 7 | PWR AUX | 840 | DATA LINK CONNECTOR (DLC), CIGARETTE LIGHTER |
25 |
| 8 | EMPTY | — | — | — |
| 9 | ECM | 440 | FUEL PUMP OIL PRESSURE SWITCH, POWERTRAIN CONTROL MODULE (PCM) | 20 |
| 10 | ECM IGN | 439 | POWERTRAIN CONTROL MODULE (PCM), DISTRIBUTORLESS IGNITION CONTROL MODULE, FUEL INJECTORS | 20 |
| 11 | RADIO | 43 | RADIO | 20 |
| 12 | BRAKE | 441 | BRAKE PRESSURE MODULATOR VALVE, STOPLAMP SWITCH | 10 |
| 13 | RDO BATT | 1140 | RADIO | 10 |
| 14 | AC COMP | 1240 | A/C COMPRESSOR CLUTCH RELAY | 10 |
| 15 | FOG-DRL | 340 | DAYTIME RUNNING LAMPS RELAY | 10 |
| 16 | TURN B/U | 139 | TURN SIGNAL FLASHER, BACKUP LAMP SWITCH | 15 |
| 17 | WIPER | 143 | WINDSHIELD WIPER/WASHER SWITCH, WINDSHIELD WIPER MOTOR AND MODULE | 25 |
| 18 | EMPTY | — | — | — |
| 19 | EMPTY | — | — | — |
| 20 | CRANK | 806 | CLUTCH PEDAL POSITION SWITCH | 10 |
| 21 | ILLUM | 8 | AUDIO ALARM MODULE, INSTREUMENT CLUSTER, HVAC CONTROL ILLUMINATION LAMP, RADIO | 10 |
| 22 | AIR BAG | 1139 | ARMING SENSOR. DERM | 10 |
| 23 | EMPTY | — | — | — |
| 24 | EMPTY | — | — | — |
| A | EMPTY | — | — | — |
| B | EMPTY | — | — | — |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
