Isuzu Rodeo (2000 – 2001) – fuse box diagram
Year of production: 2000, 2001
Dash fuse box
Number | A | Function |
1 | Fuse/Relay Box | |
2 | Diode | |
3 | Diode | |
4 | Tail Relay | |
5 | — | — |
6 | ACC Socket Relay | |
7 | Power Window Relay | |
8 | — | — |
9 | Rear Defogger Relay | |
10 | 20 | Fuse ACC Socket |
11 | 15 | Fuse Audio (ACC) |
12 | 10 | Fuse Starter |
13 | 15 | Fuse Tail |
14 | 10 | Fuse Room lamp |
15 | 15 | Fuse Stop lamp |
16 | 20 | Fuse Door Lock |
17 | 10 | Fuse Mirror Defogger |
18 | 15 | Fuse Rear Defogger |
19 | 15 | Fuse Rear Defogger |
20 | 15 | Fuse Meter |
21 | 15 | Fuse ENG |
22 | 15 | Fuse IG. Coil |
23 | 15 | Fuse Back Up |
24 | 15 | Fuse ELEC. IG. |
25 | 10 | Fuse RR Wiper |
26 | 20 | Fuse FRT Wiper |
27 | 10 | Fuse Audio |
28 | 15 | Fuse Cigar Lighter |
29 | 10 | Fuse Anti-theft |
30 | 10 | Fuse SRS |
31 | — | — |
32 | 30 | Circuit Breaker Power Window |
33 | 20 | Spare Fuse |
34 | 15 | Spare Fuse |
35 | 10 | Spare Fuse |

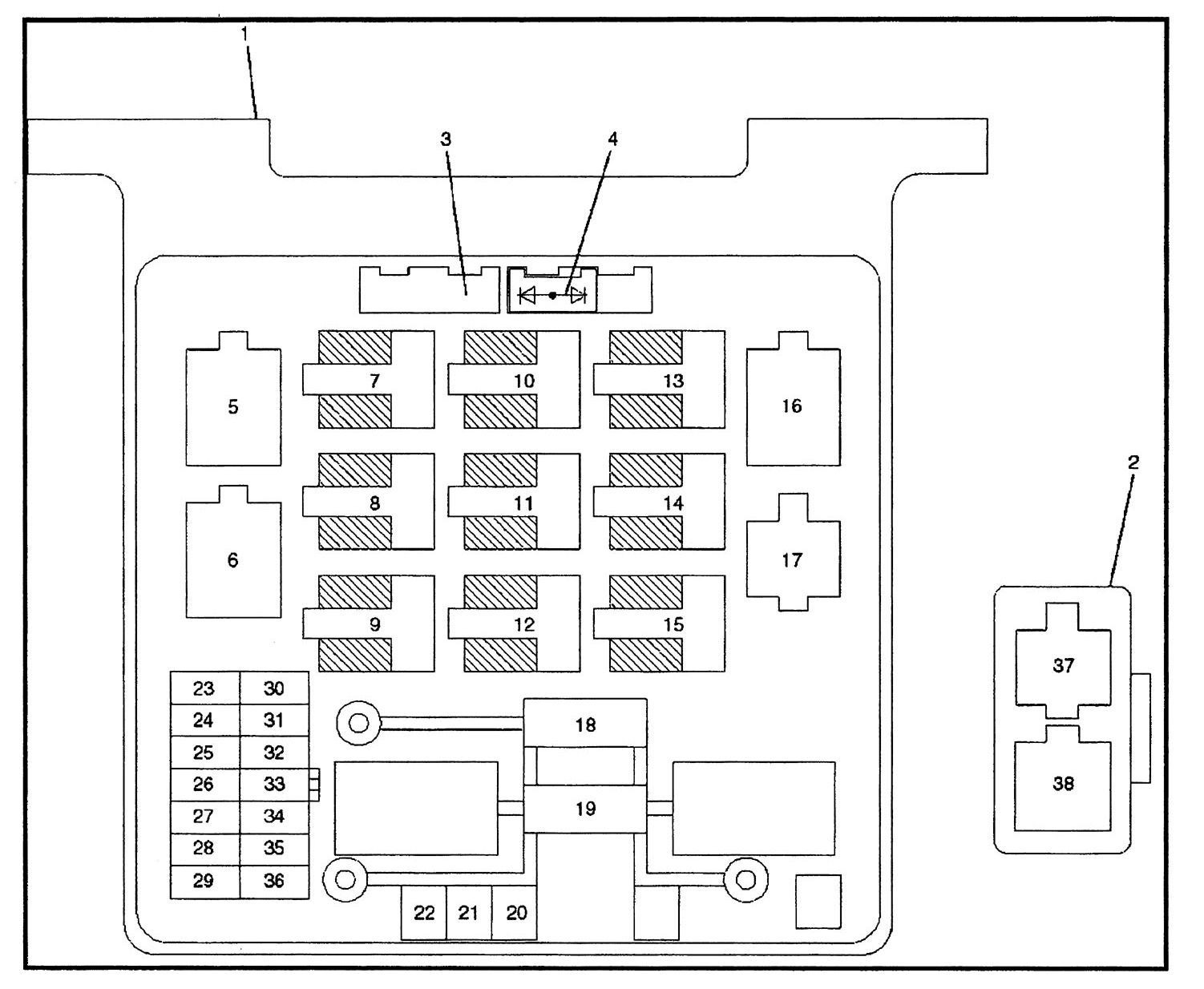

Engine compartment
Number | A | Function |
1 | Fuse/Relay Box | |
2 | Option Box | |
3 | Diode | |
4 | Diode | |
5 | Heater Relay | |
6 | A/C Compressor Relay | |
7 | — | |
8 | ECM Main Relay | |
9 | Fog Lamp Relay | |
10 | — | — |
11 | — | — |
12 | Thermo Relay | |
13 | Headlam p Relay | |
14 | Starter Relay | |
15 | — | — |
16 | Fuel Pump Relay | |
17 | Electric Fan (LO} Relay | |
18 | 60 | IG.1 (+B.1 60A) |
19 | 100 | Main |
20 | 50 | ABS |
21 | 50 | IG.2 (+B.2 60A) |
22 | 40 | Electric Fan |
23 | 15 | Hazard |
24 | 10 | Horn |
25 | 10 | ACG-S |
26 | — | — |
27 | 15 | Blower |
28 | 15 | Blower |
29 | 10 | AJC |
30 | 10 | Headlamp-LH |
31 | 10 | Headlamp-RH |
32 | 15 | Fog Lamp |
33 | 10 | 02 Sensor |
34 | 20 | Fuel Pump |
35 | 15 | ECM |
36 | — | — |
37 | Electric Fan (H1) Relay | |
38 | Electric Fan (H1) Relay (AJT Only} |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
