Jaguar X-Type (2001 – 2003)- fuse box diagram
Year of production: 2001, 2002, 2003

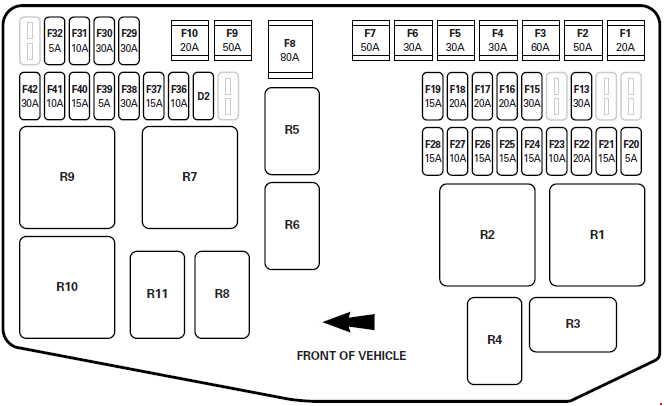

Engine compartment fuse box
| Number | Ampere ratting [A] | Protected circuit |
| F1 | 20 | Dip beam, High Intensity Discharge(HID) light relay |
| F2 | 50 | Ignition relay feed |
| F3 | 60 | ABS |
| F4 | 30 | Rear window heater relay, heated mirrors |
| F5 | 30 | Auxiliary vacuum pump, transmission control module |
| F6 | 30 | Heater blower relay |
| F7 | 50 | Power supply to passenger compartment fuse box |
| F8 | 80 | Fan module |
| F9 | 50 | Engine management system power relay, headlight power wash |
| F10 | 20 | Headlight power wash relay |
| F11 | — | — |
| F12 | — | — |
| F13 | 30 | Heated front screen right-hand side |
| F14 | — | — |
| F15 | 30 | Heated front screen left-hand side |
| F16 | 20 | Left-hand dip beam, day time running lights (DTRL), autolights |
| F17 | 20 | Right-hand dip beam, HID lights |
| F18 | 20 | Throttle motor supply (2.5L and 3.0L), fuel pump (2.0L) |
| F19 | 15 | 2002-2003: Screenwash pump, rain sensing system |
| F20 | 5 | Navigation display |
| F21 | 15 | Side (Parking) lights |
| F22 | 20 | Accessory relay |
| F23 | 10 | Air conditioning compressor clutch relay |
| F24 | 15 | Door lock power |
| F25 | 15 | Direction indicators (GEM) |
| F26 | 15 | Horns relay |
| F27 | 10 | Transmission control module, transit relay |
| F28 | 30 | 2001-2002: Ignition switch |
| 15 | 2002-2003: Ignition switch | |
| F29 | 30 | Starter motor |
| F30 | 30 | Accessory sockets |
| F31 | 10 | Engine management relay coil |
| F32 | 5 | Engine management control |
| F33 | 20 | 2001: Throttle motor relay |
| F34 | — | — |
| F35 | — | Diode EMS relay |
| F36 | 10 | Canister purge valve, canister close valve, airflow meter, throttle motor relay, power wash relay coil, air conditioning relay coil, cruise control module |
| F37 | 15 | Engine management system, fan speed controller, speed controller |
| F38 | 30 | Oxygen sensor heaters |
| F39 | 5 | Variable intake valves |
| F40 | 15 | 2002-2003: Automatic transmission control module |
| F41 | 10 | Injectors |
| F42 | 30 | Oxygen sensor heaters B |
| Relay | ||
| R1 | 40 | Windscreen wipers |
| R2 | 70 | Heated front windscreen |
| R3 | 20 | Horn |
| R4 | 20 | Accessories |
| R5 | 20 | Headlight powerwash |
| R6 | 20 | Air conditioning compressor clutch |
| R7 | 70 | Engine management system |
| R8 | 20 | Transmission control module |
| R9 | 40 | Dip beam/HID |
| R10 | 40 | Starter motor |
| R11 | 20 | Throttle motor (2.5/3.0L), fuel pump (2.0L) |

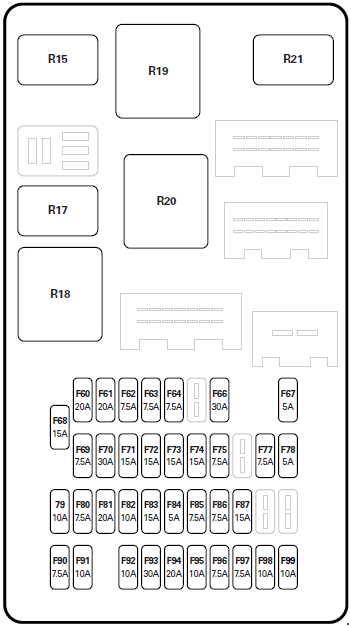

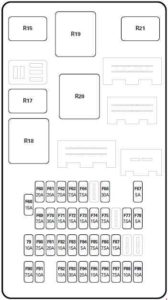

Passenger compartment fuse box
| Number | Ampere ratting [A] | Protected circuit |
| F60 | 20 | Power windows left-hand |
| F61 | 20 | Power windows right-hand |
| F62 | 10 | 2001: Rear fog lights |
| 7,5 | 2002-2003: Rear fog lights | |
| F63 | 10 | 2001: Right-hand- front side light, side markers, rear tail lights |
| 7,5 | 2002-2003: Right-hand- front side light, side markers, rear tail lights | |
| F64 | 10 | 2001: Left-hand – front side light, side markers, rear tail lights |
| 7,5 | 2002-2003: Left-hand – front side light, side markers, rear tail lights | |
| F65 | — | — |
| F66 | 30 | Left-hand power seat switches, heater module, lumbar pump (2002-2003) |
| F67 | 5 | Battery back-up sounder, transit relay, HID/dip relay, auxiliary vacuum pump control, automatic transmission control module (2002-2003) |
| F68 | 15 | Cigar lighter |
| F69 | 10 | Telematics display (2002-2003), In-car entertainment head unit, antenna module, navigation module, VICS (Japan), tuner (2001), voice module (2001-2002), parking aid, amplifier premium 1 system, phone handset, phone power supply module, instrument cluster, PATS module. |
| F70 | 30 | Right-hand power seat switches, heater module, lumbar pump (2002-2003) |
| F71 | 15 | VICS (Japan), voice module, telephone transceiver, telephone handset |
| F72 | 15 | Radio head unit, CD player, navigation electronic control module, Jaguardiagnosticconnector/OBD2 connector |
| F73 | 15 | Sunroof unit/module |
| F74 | 15 | Instrument cluster, Premium ICE amplifier unit |
| F75 | 10 | 2001: Mirror fold-back module, battery back-up sounder, air conditioning ECU |
| 7,5 | 2002-2003: Mirror fold-back module, battery back-up sounder, air conditioning EC | |
| F76 | — | — |
| F77 | 10 | 2001: Screenwash pump, rain sense |
| 7,5 | 2002-2003: Left-hand and right-hand heated seats modules | |
| F78 | 5 | Phone power supply, Jaguar Telematics (2001-2002) |
| F79 | 10 | Reverse lights, reverse light switch, reverse park aid, electrochromic mirror, instrument cluster |
| F80 | 10 | 2001: Park interlock, heater switch, OBD2, blower relay |
| 7,5 | 2002-2003: Park interlock, heater switch, OBD2, blower relay | |
| F81 | 20 | Fuel pump control module (2.5/3.0L), fuel pump relay (2.0L) |
| F82 | 20 | 2001: Manual transmission reverse lights, variable power steering, alternator, TCM |
| 10 | 2002-2003: Variable power steering, alternator. Manual transmission only: (Reverse lights, reverse light switch reverse park aid, electrochromic mirror, instrument cluster) | |
| F83 | 10 | 2001: Left-hand and right-hand heated seats modules |
| F84 | 5 | Instrument cluster, passenger airbag fascia light, seat weight sensor |
| F85 | 10 | 2001: Right-hand high beam light |
| 7,5 | 2002-2003: Right-hand high beam light | |
| F86 | 10 | 2001: Left-hand high beam light |
| 7,5 | 2002-2003: Left-hand high beam light | |
| F87 | 15 | Front fog lights, master light switch |
| F88 | — | — |
| F89 | — | — |
| F90 | 15 | 2001: Stop lights, cruise control |
| 7,5 | 2002-2003: Stop lights, cruise control | |
| F91 | 10 | Sunroof, electrochromic mirror, power windows, power mirrors (2002-2003) |
| F92 | 10 | Manual transmission cruise control switch, ignition coils, automatic transmission rotary switch |
| F93 | 30 | Windscreen wipers |
| F94 | 20 | HID module |
| F95 | 10 | Airbag restraints module |
| F96 | 10 | 2001: ABS module |
| 7,5 | 2002-2003: ABS module | |
| F97 | 10 | 2001: Glove compartment light, instrument cluster lights, licence plate lights |
| 7,5 | 2002-2003: Glove compartment light, instrument cluster lights, licence plate lights | |
| F98 | 10 | Mirror heaters |
| F99 | 10 | Luggage compartment light, footwell lights, puddle lights, vanity mirror lights, interior lights, aircon control unit, roof console unit. |
| Relay | ||
| R15 | 20 | High beam/front fog lights relay |
| R16 | 20 | — |
| R17 | 20 | Reverse lights |
| R18 | 70 | Ignition relay |
| R19 | 40 | Heated rear window relay |
| R20 | 40 | Blower relay |
| R21 | 20 | Battery saver relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
