Jeep Cherokee (2004) – fuse box diagram

Year of production: 2000

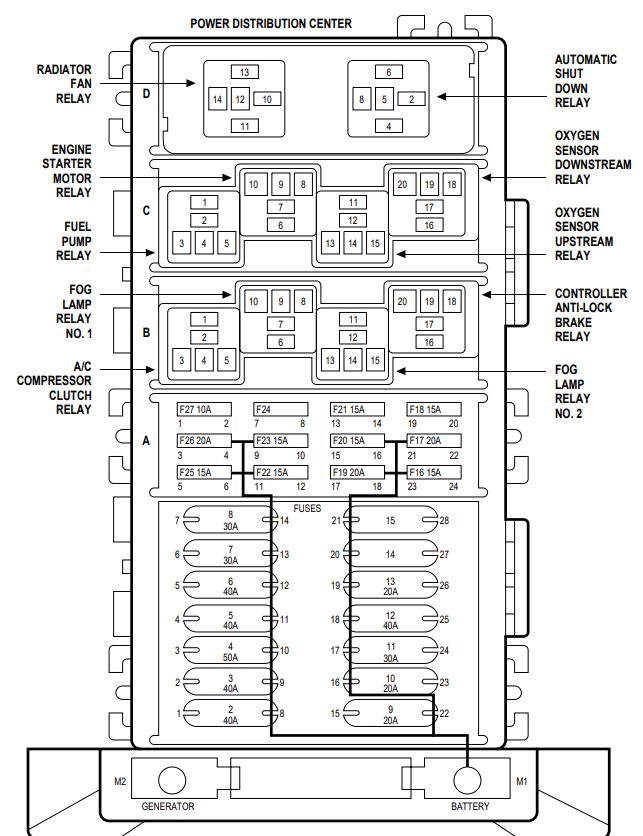

Power distribution box

Jeep Cherokee – fuse box diagram – power distribution
Jeep Cherokee – fuse box diagram – power distribution

Fuses

No.
 A Circuit Protected
1 — — —
2 40 A1 12RD A0 6RD
3 40 A2 12PK/BK A0 6RD
4 50 A7 10RD/BK A0 6RD
5 40 F141 12LG/RD A0 6RD
6 40 A111 12RD/LG A0 6RD
7 30 A3 14RD/WT A0 6RD
A3 14RD/WT
8 30 A16 14RD/LG A0 6RD
9 20 A17 16RD/BK A0 6RD
A17 16RD/BK A0 6RD
10 20 A41 16YL A0 6RD
11 30 A4 12BK/PK A0 6RD
12 (ABS) 40 A10 12RD/DG A0 6RD
13 (ABS) 20 A20 12RD/DB A0 6RD
14 — — A0 6RD
15 — — A0 6RD
16 15 M1 20PK A0 6RD
17 (4.0L) 20 F99 18RD A0 6RD
18 15 A142 18DG/OR A999 16RD
19 20 F34 18TN/BK A0 6RD
20 15 L9 20BK/PK A0 6RD
21 15 F142 18DG/WT A999 16RD
22 15 A61 14DG/BK A0 6RD
23 15 F32 20PK/DB
24 — — —
25 15 F61 20WT/OR A0 6RD
26 20 F75 16VT A0 6RD
27 10 F1 20DB/GY A17 16RD/BK

A/C Compressor clutch relay

Cavity
 Circuit Function
B1 A17 16RD/BK FUSED B(+)
B2 C3 16DB/BK A/C COMPRESSOR CLUTCH RELAY OUTPUT
B3 C13 18DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
B4 — —
B5 F20 18WT FUSED IGNITION SWITCH OUTPUT (ST-RUN)

Automatic shut down relay

Cavity
 Circuit Function
D2 A16 14RD/LG FUSED B(+)
D4 F12 18DB/WT FUSED IGNITION SWITCH OUTPUT (ST-RUN)
D5 — —
D6 K51 18DB/YL AUTOMATIC SHUT DOWN RELAY CONTROL
D8 A999 16RD AUTOMATIC SHUT DOWN RELAY OUTPUT
A999 16RD

Controller anti-lock brake relay

Cavity
 Circuit Function
B16 G19 20LG/OR ABS WARNING INDICATOR DRIVER
B17 — —
B18 G83 18GY/BK ABS RELAY CONTROL
B19 Z1 20BK GROUND
B19 Z1 20BK  (4.0L ABS EXCEPT DRL) GROUND
B20 F15 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN)

Engine starter motor relay

Cavity
 Circuit Function
C6 A41 16YL FUSED B(+)
C7 T40 16BR ENGINE STARTER MOTOR RELAY OUTPUT
C8 F45 20YL/RD (LHD 4.0 A/T) FUSED B(+) ENGINE STARTER MOTOR RELAY
C8 T141 20YL (2.5L, 4.0L M/T, RHD 4.0L A/T) IGNITION SWITCH OUTPUT (START)
C9 — —
C10 Z1 20BK (4.0L M/T) GROUND
C10 Z1 20BK (LHD 4.0L M/T EXCEPT ABS EXCEPT DRL) GROUND
C10 T41 20BK/WT (EXCEPT 4.0L M/T) PARK/NEUTRAL POSITION SWITCH SENSE
C10 T41 20BK/WT  (4.0L A/T) PARK/NEUTRAL POSITION SWITCH SENSE

Fog lamp relay No.1

Cavity
 Circuit Function
B6 L77 20BR/YL FUSED HEADLAMP SWITCH OUTPUT
L77 20BR/YL FUSED HEADLAMP SWITCH OUTPUT
B7 — —
B8 Z1 20BK GROUND
Z1 20BK GROUND
B9 L139 20VT FOG LAMP RELAY OUTPUT NO. 1
B10 L33 20RD/WT (EXCEPT DR) FUSED B(+)
B10 G34 16RD/GY (DRL) HIGH BEAM INDICATOR DRIVER
G34 16RD/GY (DRL) HIGH BEAM INDICATOR DRIVER

Fog lamp relay no.2

Cavity
 Circuit Function
B11 F61 20WT/OR FUSED B(+)
B12 L39 20LB FOG LAMP RELAY OUTPUT
B13 Z1 20BK GROUND
B14 — —
B15 L92 20PK FOG LAMP SWITCH OUTPUT

Fuel pump relay

Cavity
 Circuit Function
C1 A61 14DG/BK FUSED B(+
A61 16DG/BK FUSED B(+
C2 A141 14DG/WT FUEL PUMP RELAY OUTPUT
C3 K31 18BR FUEL PUMP RELAY CONTROL
C4 — —
C5 F12 18DB/WT FUSED IGNITION SWITCH OUTPUT (ST-RUN)

Oxygen sensor downstream relay (gas)

Cavity
 Circuit Function
C16 F99 18RD FUSED B(+)
F99 18RD FUSED B(+)
C17 A242 18VT/OR OXYGEN SENSOR 1/2 DOWNSTREAM
C18 F20 18WT (2.5L, 4.0L A/T FOG EXCEPT DRL) FUSED IGNITION SWITCH OUTPUT (ST-RUN)
F20 18WT (2.5L, 4.0L A/T FOG EXCEPT DRL) FUSED IGNITION SWITCH OUTPUT (ST-RUN)
C18 F26 18PK/OR 4.0L (A/T DRL), (A/T EXCEPT FOG), (M/T) FUSED IGNITION SWITCH OUTPUT (ST-RUN)
F26 18PK/OR 4.0L (A/T DRL), (A/T EXCEPT FOG), (M/T FUSED IGNITION SWITCH OUTPUT (ST-RUN)
C19 — —
C20 K74 18BR/VT OXYGEN SENSOR DOWNSTREAM RELAY CONTROL

Oxygen sensor upstream relay (gas)

Cavity
 Circuit Function
C11 F99 18RD FUSED B(+)
C12 A42 18DG OXYGEN SENSOR 1/1 UPSTREAM
C13 F20 18WT (2.5L, 4.0L A/T FOG EXCEPT DRL) FUSED IGNITION SWITCH OUTPUT (ST-RUN)
F20 18WT (2.5L, 4.0L A/T FOG EXCEPT DRL) FUSED IGNITION SWITCH OUTPUT (ST-RUN)
C13 F26 18PK/OR (4.0L (A/T DRL), (A/T EXCEPT FOG), (M/T)) FUSED IGNITION SWITCH OUTPUT (ST-RUN)
C14 — —
C15 K73 18BR/OR KNOCK SENSOR SIGNAL (-)

Radiator fan relay

Cavity
 Circuit Function
D10 F141 12LG/RD FUSED B(+)
D11 F20 18WT FUSED IGNITION SWITCH OUTPUT (ST-RUN)
F20 18WT FUSED IGNITION SWITCH OUTPUT (ST-RUN)
D12 — —
D13 C27 18DB/PK RADIATOR FAN RELAY CONTROL
D14 C25 12LB RADIATOR FAN RELAY OUTPUT

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
