Jeep Wrangler (JK) – fuse box diagram
Year of production:
Fuse panel

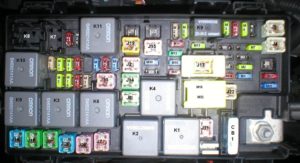

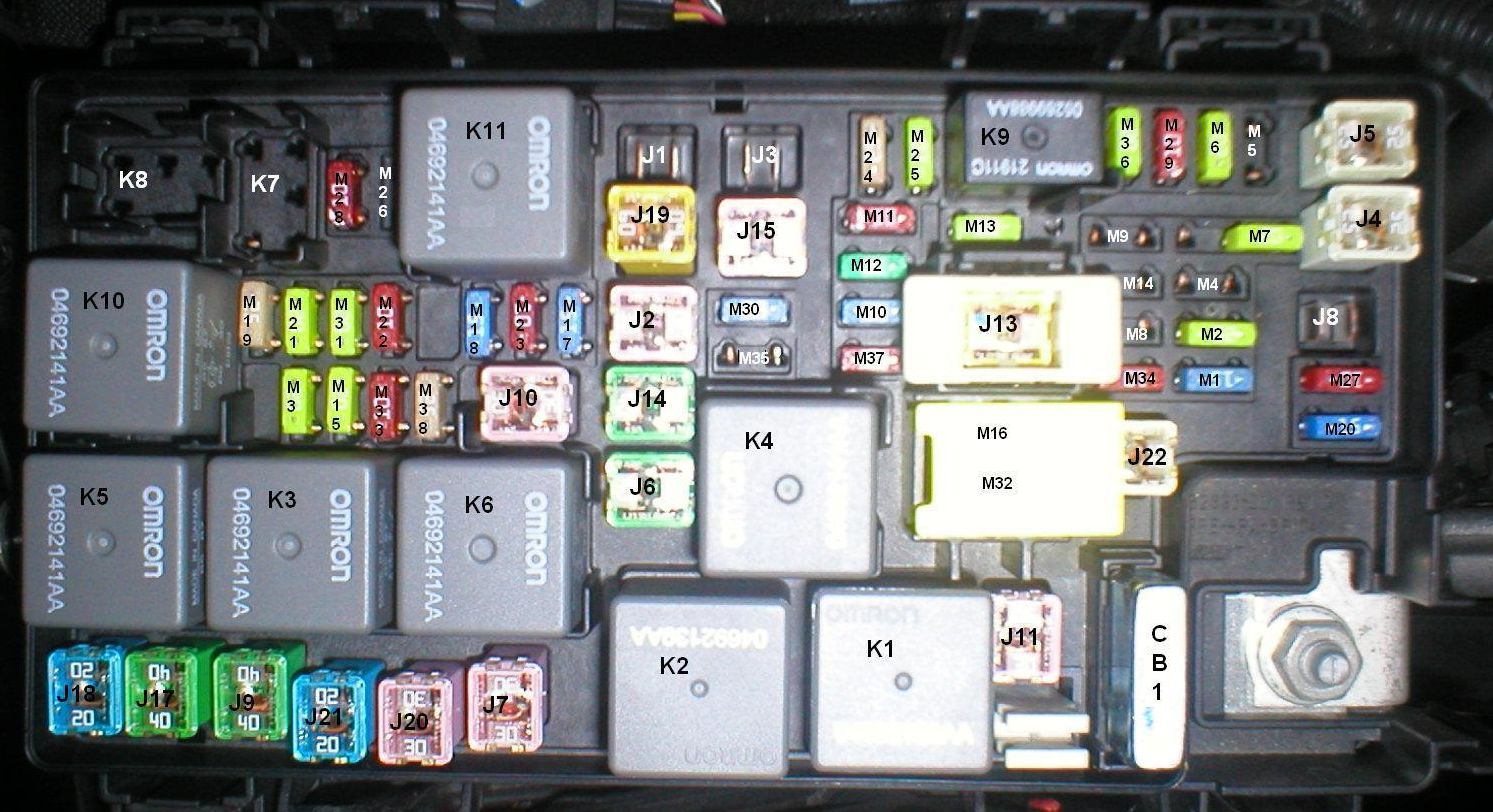

The Totally Integrated Power Module is located in the engine compartment near the battery. This center contains cartridge fuses, mini fuses and relays.
| № |
A |
Description |
| J1 | 40 | Power Folding Seat |
| J2 | 30 | Transfer Case Module |
| J3 | 40 | Rear Door Module (RR DOOR NODE) |
| J4 | 25 | Driver Door Node |
| J5 | 25 | Passenger Door Node |
| J6 | 40 | Anti-Lock Brake System (ABS) Pump/Stability Control System |
| J7 | 30 | Anti-Lock Brake System (ABS) Pump/Stability Control System |
| J8 | 40 | – |
| J9 | 40 | PZEV Sec Motor/Flex Fuel – If Equipped |
| J10 | 30 | Headlamp Wash Relay/Manifold Tuning Valve |
| J11 | 30 | Sway Bar |
| J12 | 30 | Rear Blower Motor/Radiator Fan |
| J13 | 60 | Ignition Off Draw (IOD) – Main |
| J14 | 40 | Rear Defroster |
| J15 | 40 | Front Blower |
| J16 | ||
| J17 | 40 | Starter Solenoid |
| J18 | 20 | Powertrain Control Module (PCM) Trans Range |
| J19 | 60 | Radiator Fan |
| J20 | 30 | Front Wiper LO/HI |
| J21 | 20 | Front/Rear Washer |
| J22 | 25 | Sunroof Module |
| M1 | 15 | Center High-Mounted Stop Light (CHMSL)/Switch Stop Lamp Feed |
| M2 | 20 | Relay Trailer Lighting (Stop lamp) |
| M3 | 20 | Front/Rear Axle Locker Relay |
| M4 | 10 2 |
Trailer Tow Clock Spring |
| M5 | 25 | Power Inverter – If Equipped |
| M6 | 20 | Power Outlet #1/Rain Sensor |
| M7 | 20 | Power Outlet #2 (BATT/ACC SELECT) |
| M8 | 20 | Front Heated Seat |
| M9 | 20 | Rear Heated Seat – If Equipped |
| M10 | 15 | Ignition Off Draw – Vehicle Entertainment System, Satellite Digital Audio Receiver (SDARS), DVD, Hands-Free Module, RADIO, Antenna, Universal Garage Door Opener, Vanity Lamp |
| M11 | 10 | (Ignition Off Draw) Climate Control System, Underhood Lamp |
| M12 | 30 | Amplifier |
| M13 | 20 | Ignition Off Draw – Cabin Compartment Node, Wireless Control Module, SIREN, Multifunction Control Switch |
| M14 | 20 | Trailer Tow (Export Only) |
| M15 | 20 | Climate Control System, Rear View Mirror, Cabin Compartment Node, Transfer Case Switch, Multi-Function Control Switch, Tire Pressure Monitor, Glow Plug Module – Export Diesel Only |
| M16 | 10 | Airbag Module |
| M17 | 15 | Left Tail/License/Park Lamp |
| M18 | 15 | Right Tail/Park/Run Lamp |
| M19 | 25 | Auto Shut Down (ASD #1 and #2) |
| M20 | 15 | Cabin Compartment Node Interior Light, Switch Bank |
| M21 | 20 | Auto Shut Down (ASD #3) |
| M22 | 10 | Right Horn (HI/LOW) |
| M23 | 10 | Left Horn (HI/LOW) |
| M24 | 25 | Rear Wiper |
| M25 | 20 | Fuel Pump, Diesel Lift Pump – Export Only |
| M26 | 10 | Power Window Switch, Driver Window Switch |
| M27 | 10 | Ignition Switch Feed, Wireless Module |
| M28 | 10 | Powertrain Control Module |
| M29 | 10 | Powertrain |
| M30 | 15 | Wiper Motor Frt, J1962 Diagnostic Feed |
| M31 | 20 | Backup Lamps |
| M32 | 10 | Airbag Controller, TT EUROPE |
| M33 | 10 | Powertrain Controller |
| M34 | 10 | Park Assist, Climate Control System, Headlamp Wash, Compass |
| M35 | 10 | Heated Mirrors |
| M36 | 20 | Power Outlet |
| M37 | 10 | Anti-Lock Brake System, Electronic Stability Control, Stop Lamp Switch, Fuel Pump Relay |
| M38 | 25 | Lock/Unlock Motors |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
