Jeep Wrangler YJ (1987 – 1996) – fuse box diagram
Year of production: 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

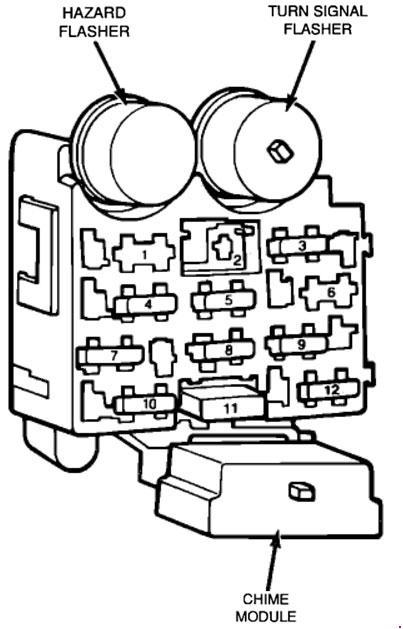

Compartment Fuse Box
| No. |
A |
Circuit Protected |
| 1 | 20 | Rear Window Wiper |
| 2 | – | Not used |
| 3 | 15 | Hazard Flasher, Underhood Lamp Stop Lamp Switch, Cruise Control |
| 4 | 15 | Turn Signal Flasher, Backup Lamps |
| 5 | 20 | Courtesy Lamps, Dome Lamp Gauge Package, Radio |
| 10 | Automatic Shut-Down Relay, Fuel Pump Relay, P.C.M. | |
| 6 | 25 | Rear Window Defogger Relay |
| 7 | 20 | Cigar Lighter, Radio, Cruise Control, Illumination Lamps |
| 8 | 20 | Headlamp Switch, Key Warning Switch, Panel Lamp Dimmer Switch, Rear Park/marker Lamps, Front Park/marker Lamps, Radio |
| 9 | 15 | Buzzer Module, Defogger Switch, Gauge Package, Tachometer, Emission Maintenance Timer, Warning Lamps, Gauges, Heated Rear Window Relay, Back-Up Lamps, A/C Compressor Clutch Relay |
| 10 | 5 | Instrument Panel Illumination Lamps |
| 11 | 5.3 | Wiper Switch, Wiper Motor |
| 12 | 25 | Blower Motor, A/C Compressor Clutch |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | – | Not used |
| 16 | – | Not used |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
