KIA Carnival GQ(1998 – 2006) – fuse box diagram
Year of production: 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

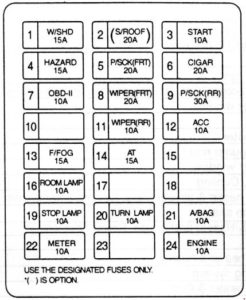

Compartment Fuse Box
| No. |
Fuse | A |
Circuit Protected |
| 1 | W/SHD | 15 | Defroster |
| 2 | S/ROOF | 20 | Sunroof |
| 3 | START | 10 | Starting system, PCM, ACC |
| 4 | HAZARD | 15 | Turn & Hazard flasher unit |
| 5 | P/SCK(FRT) | 20 | Front Power Socket |
| 6 | CIGAR | 20 | Cigar lighter |
| 7 | OBD-II | 10 | Check connector |
| 8 | WIPER (FRT) | 20 | Wiper & Washer, Head light, Front heater & Aircon. Coolina system, Defroster |
| 9 | P/SCK (RR) | 30 | Rear power socket |
| 10 | – | – | – |
| 11 | WIPER (RR) | 10 | Wiper & Washer, ETWIS, Heater & Aircon, Trip computer, sunroof |
| 12 | ACC | 10 | Power mirror, Cigar lighter, Power Socket, Clock. Keyless entry, Audio |
| 13 | F/FOG | 15 | Front fog lamp |
| 14 | AT | 15 | PCM (Powertrain control system) |
| 15 | – | – | – |
| 16 | ROOM LAMP | 10 | Instrument cluster, ETWIS, Head light, DRL, Keyless entry, Room lamp, Sunvior lamp, Clock |
| 17 | – | – | – |
| 18 | – | – | – |
| 19 | STOP LAMP | 20 | Stop light |
| 20 | TURN LAMP | 10 | Turn & Hazard flasher unit |
| 21 | A/BAG | 10 | Airbag |
| 22 | METER | 10 | PCM, ACC, Trip computer, Stop light, DRL, ETWIS, Instrument cluster, Front heater & Aircon |
| 23 | – | – | – |
| 24 | ENGINE | 10 | PCM, Cooling, Speed sensor, Diagnosis connection ACC, Instrument cluster, ABS |

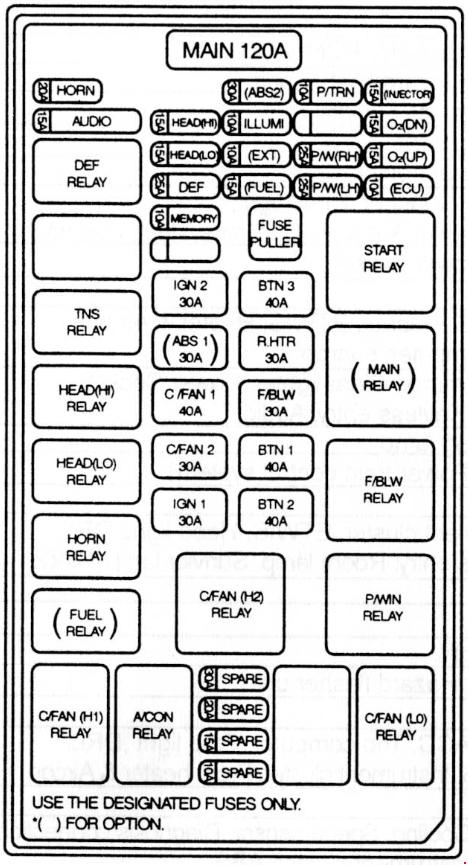

Engine compartment fuse box
| Fuse | A |
Circuit Protected |
| HORN | 20 | Horn |
| ABS2 | 30 | ABS |
| P/TRN | 10 | PCM, Main relay |
| INJECTOR | 15 | PCM |
| AUDIO | 15 | Audio |
| HEAD (HI) | 15 | Head Light |
| ILLUMI | 10 | Key hole illumination |
| 02 (DN) | 15 | PCM |
| HEAD (LO) | 15 | Head light |
| EXT | 10 | DRL, License lamp, Tail lamp, Position lamp, Turn lamp |
| P/W (RH) | 25 | Power window |
| 02 (UP) | 15 | PCM |
| DEF | 25 | Defroster |
| FUEL | 15 | Fuel pump relay |
| P/W (LH) | 25 | Power window |
| ECU | 10 | PCM, Cooling |
| MEMORY | 10 | Front heater & aircon, Etwis, Keyless entry system |
| IGN 2 | 30 | Ignition switch |
| BTN 3 | 30 | Turn & Hazard flasher unit, Power door lock |
| ABS 1 | 30 | ABS |
| R.HTR | 30 | Rear heater & Aircon |
| C/FAN 1 | 40 | Cooling system |
| F/BLW | 30 | Front heater & Aircon |
| C/FAN 2 | 30 | Cooling system |
| BTN 1 | 40 | Cigar lighter, Power socket |
| IGN 1 | 30 | Ignition switch |
| BTN 2 | 40 | Power seat, PCM |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
