Kia Ceed (2013) – fuse box diagram

18 July 2019 admin Ceed, KIA 0

Kia Ceed (2013) – fuse box diagram

Year of production: 2013

Instrument fuse panel

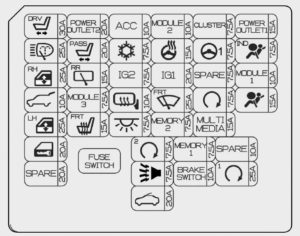

KIA Ceed - fuse box diagram - instrument panel
KIA Ceed – fuse box diagram – instrument panel
No.  [A] Symbol Fuse name Protected component
1 30 P/SEAT DRV 4WAY : Driver Lumbar Support Switch
6WAY : Driver Seat Manual Switch, Driver IMS Module
2 25 H/LP WASHER ICM Relay Box (Head Lamp Washer Relay)
3 25 P/WDW RH Power Window Relay RH, Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module RH
4 10 T/GATE OPEN Tail Gate Relay
5 25 P/WDW LH Power Window Relay LH, Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module LH
6 20 DR LOCK Door Lock/Unlock Relay, Dead Lock Relay
7 20 SPARE SPARE —
8 20 POWER OUTLET 2 Cigarette Lighter, Rear Power Outlet
9 20 P/SEAT ASS Passenger Lumbar Support Switch
10 15 RR WIPER ICM Relay Box (Rear Wiper Relay), Rear Wiper Motor
11 7,5 MODULE 3 Auto Light & Photo Sensor, AT lever (Shift Lock), Hazard Switch
12 15 S/HEATER FRT Driver/Passenger Seat Warmer Module
13 10 ACC ACC A/V & Navigation Head Unit (W/O ISG), Audio (W/O ISG), DC-DC Convertor (With ISG), Digital Clock, Smart Key Control Module, BCM, Outside Mirror Switch, Outside Mirror
14 7,5 A/CON Cluster Ionizer, A/C Control Module, Blower Relay, PTC Relay
15 7,5 IG2 IG2 ICM Relay Box (Head Lamp Washer Relay), Rain Sensor, BCM, Electro Chromic Mirror, Panorama Sunroof, Smart, Key Control Module, Passenger Seat Warmer Module, Driver Seat Warmer Module
16 10 HTD MIRR Driver/Passenger Outside Mirror, ECU, A/C Control Module
17 7,5 INTERIOR LAMP Glove Box Lamp, Luggage Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp
18 7,5 PDM 2 Smart Key Control Module, Start/Stop Button Switch
19 7,5 B/HORN ICM Relay Box (Burglar Alarm Horn Relay)
20 20 SUNROOF Panorama Sunroof
21 10 MODULE 2 MODULE 2 Electric Parking Brake Module, DC-DC Convertor (With ISG), Head Lamp Leveling Device Switch, A/C Control Module, Rear Parking Assist Sensor, Smart Parking Assist Control Module, Head Lamp LH/RH, ATM Shift Lever IND., Center Facia Switch, Crash Pad Lower Switch,  river/Passenger Seat Warmer Module,
Driver IMS Module
22 15 HTD STRG Steering Wheel Heater
23 20 IG1 IG1 E/R Fuse & Relay Box (ECU4, B/UP LAMP, ABS3, TCU2 FUSE)
24 25 WIPER Wiper Relay , ICM Relay Box (Rain Sensor Relay), Front Wiper Motor
25 7,5 MEMORY 2 MEMORY 2 Immobilizer Module (W/O Smart Key)
26 7,5 MEMORY 1 MEMORY 1 Driver/Passenger Outside Mirror (Folding), Driver/Passenger Smart Key Outside Handle, Driver IMS Module, Center Facia Switch, Instrument Cluster, Tire Pressure Monitoring Module, BCM, A/C Control Module, ICM Relay Box (Outside Mirror Folding/Unfolding Relay), Ignition Key ILL. & Door Warning Switch, Rear Parking Assist Switch, Data Link Connector, Buzzer
27 10 BRAKE SWITCH Smart Key Control Module, Stop Lamp Switch
28 7,5 CLUSTER CLUSTER Instrument Cluster, Digital Clock
29 7,5 POWER STEERING EPS Unit
30 7,5 SPARE SPARE —
31 7,5 START Start Relay, ECU, Ignition Lock Switch, Transaxle Range Switch, TCU, Smart Key Control Module
32 15 MULTI MEDIA MULTI MEDIA A/V & Navigation Head Unit (W/O ISG), Audio (W/O ISG), DC-DC Convertor (With ISG), Digital Clock
33 10 SPARE SPARE —
34 25 PDM1 Smart Key Control Module
35 15 POWER OUTLET1 P/OUTLET 1 Front Power Outlet
36 7,5 A/BAG IND Instrument Cluster
37 10 MODULE 1 MODULE 1 BCM, Tire Pressure Monitoring Module, AT Lever, Audio, Adaptive Front Lighting Module, LDWS Unit
38 15 A/BAG SRS Control Module



Engine compartment fuse panel

Gasoline engine

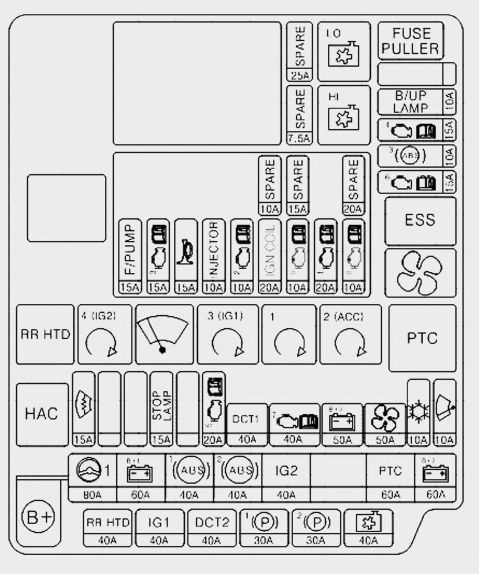

KIA Ceed - fuse box diagram - engine compartment (gasoline)
KIA Ceed – fuse box diagram – engine compartment (gasoline)
Fuse [A] Symbol Fuse name Protected component
MULTI FUSE 80 POWER STEERING EPS Unit
60 B+1 Inner Fuse Panel, IPS1 (H/LAMP HI LH,H/LAMP LOW LH, FRT TURN LH, POSITION LAMP LH), IPS2 (STATIC BENDING LAMP LH/RH, DRL LH/RH)
40 ABS1 ESC Control Module, ABS Control Module
40 ABS2 ESC Control Module, ABS Control Module, Multipurpose Check Connector
40 IG2 IG2 W/O Smart Key : Ignition Switch, START RELAY
With Smart Key : IG2 RELAY, START RELAY
60 PTC PTC PTC Relay
60 B+2 Inner Fuse Panel, IPS3 (H/LAMP HI RH,H/LAMP LOW RH, FRT TURN RH,POSITION LAMP RH), IPS4 (FRT FOG LAMP LH/RH, REAR TURN LH/RH), IPS5 (REAR FOG LAMP, INT TAIL LAMP)
FUSE 40 RR HTD RR HTD RR HTD RELAY , RR HTD
40 IG1 IG1 W/O Smart Key : Ignition Switch
With Smart Key : IG1 RELAY, ACC RELAY, INNER FUSE PANEL (FUSE No. – 8/13/21/23/28/29/35/36/37/38)
40 DCT2 DCT2 TCU (DCT)
30 EPB1 Electric Parking Brake Module
30 EPB2 Electric Parking Brake Module
40 C/FAN C/FAN LO RELAY, C/FAN HI RELAY
15 DEICER ICM Relay Box (Front Deicer Relay)
15 STOP LAMP STOP LAMP Stop Signal Electronic Relay , HAC RELAY
20 TCU1 TCU
40 DCT1 DCT1 TCU (DCT)
50 B+3 Inner Fuse Panel (Leak Current Autocut Device, Fuse No. – 6/19/20/17/32/26/25)
50 BLOWER BLOWER RELAY
10 A/CON A/C Control Module
10 WIPER FRT ECU, Rain Sensor
10 B/UP LAMP B/UP LP M/T : Back-up Lamp Switch, A/T : Transaxle Range Switch, TCU
15 ECU4 Smart Key Control Module, Immobilizer Module, ECU
10 ABS3 ESC Control Module, ABS Control Module, Yaw Rate Sensor, HAC, ESS RELAY
15 TCU2 Transaxle Range Switch, TCU, Stop Lamp Switch



Symbol Relay name Type
COOLING FAN LOW RELAY PLUG MICRO
COOLING FAN HIGH RELAY PLUG MICRO
ESS ESS RELAY PLUG MICRO
BLOWER RELAY PLUG MICRO
RR HTD REAR DEFOGGER RELAY PLUG MICRO
IG2 RELAY PLUG MICRO
FRT WIPER RELAY PLUG MICRO
IG1 RELAY PLUG MICRO
START RELAY PLUG MICRO
ACC RELAY PLUG MICRO
PTC PTC RELAY PLUG MINI
HAC HAC RELAY PLUG MICRO





[A] Symbol Fuse name Relay name
15 F/PUMP FUEL PUMP RELAY
15 ECU3 ECU
15 HORN Horn Relay
10 INJECTOR INJECTOR INJECTOR, ECU, FUEL PUMP RELAY
10 ECU2 ECU
20 IGN COIL IGN COIL Ignition Coil #1/#2/#3/#4, Condenser
10 SENSOR2 E/R Fuse & Relay Box (COOLING LOW RELAY), Oil Control Valve #1/#2
20 ECU1 ECU
10 SENSOR1 Oxygen Sensor (UP/DOWN), Variable Intake Solenoid Valve, Purge Control Solenoid Valve

Diesel engine

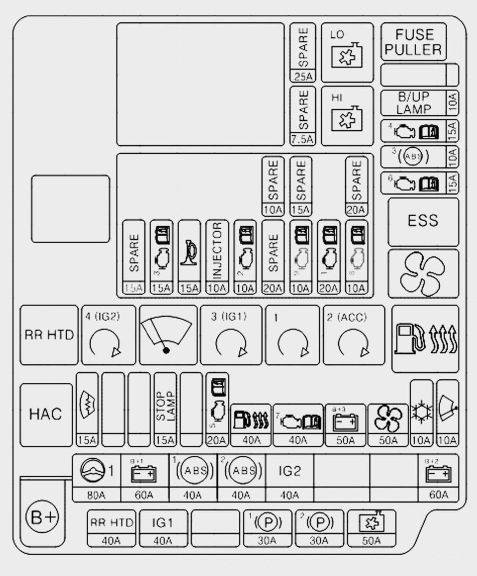

KIA Ceed - fuse box diagram - engine compartment (diesel)
KIA Ceed – fuse box diagram – engine compartment (diesel)
Fuse [A] Symbol Fuse name Protected component
MULTI FUSE 80 POWER STEERING EPS Unit
60 B+1 Inner Fuse Panel, IPS1 (H/LAMP HI LH,H/LAMP LOW LH, FRT TURN LH, POSITION LAMP LH), IPS2 (STATIC BENDING LAMP LH/RH, DRL LH/RH)
40 ABS1 ESC Control Module, ABS Control Module
40 ABS2 ESC Control Module, ABS Control Module, Multipurpose Check Connector
40 IG2 IG2 W/O Smart Key : Ignition Switch, START RELAY
With Smart Key : IG2 RELAY, START RELAY
60 B+2 Inner Fuse Panel, IPS3 (H/LAMP HI RH,H/LAMP LOW RH, FRT TURN RH,POSITION LAMP RH), IPS4 (FRT FOG LAMP LH/RH, REAR TURN LH/RH), IPS5 (REAR FOG LAMP, INT TAIL LAMP)
FUSE 40 RR HTD RR HTD RR HTD RELAY , RR HTD
40 IG1 IG1 W/O Smart Key : Ignition Switch
With Smart Key : IG1 RELAY, ACC RELAY, INNER FUSE PANEL (Fuse No. – 38/36/21/37/23/29/28, Fuse No. – 13/8/35)
30 EPB1 Electric Parking Brake Module
30 EPB2 Electric Parking Brake Module
50 C/FAN C/FAN LO RELAY, C/FAN HI RELAY
15 DEICER ICM Relay Box (Front Deicer Relay)
15 STOP LAMP STOP LAMP Stop Signal Electronic Relay , HAC RELAY
20 TCU1 TCU
40 FUEL HEATER FUEL HEATER RELAY
40 EMS EMS BOX (Fuse No. – 1/2/3/4/5/6/7/8/9)
50 B+3 Inner Fuse Panel (Leak Current Autocut Device, Fuse No. – 6/19/20/17/32/26/25)
50 BLOWER BLOWER RELAY
10 A/CON A/C Control Module
10 WIPER FRT ECU, Rain Sensor
10 B/UP LAMP B/UP LP M/T : Back-up Lamp Switch, A/T : Transaxle Range Switch, TCU
15 ECU4 Smart Key Control Module, Immobilizer Module, ECU
10 ABS3 ESC Control Module, ABS Control Module, Yaw Rate Sensor, HAC, ESS RELAY
15 TCU2 Transaxle Range Switch, TCU



Symbol Relay name Type
COOLING FAN LOW RELAY PLUG MICRO
COOLING FAN HIGH RELAY PLUG MICRO
ESS ESS RELAY PLUG MICRO
BLOWER RELAY PLUG MICRO
RR HTD REAR DEFOGGER RELAY PLUG MICRO
IG2 RELAY PLUG MICRO
FRT WIPER RELAY PLUG MICRO
IG1 RELAY PLUG MICRO
START RELAY PLUG MICRO
ACC RELAY PLUG MICRO
FUEL HEATER RELAY PLUG MINI
HAC HAC RELAY PLUG MICRO



[A] Symbol Fuse name Relay name
15 SPARE SPARE —
15 HORN Horn Relay
10 ECU2 ECU
20 SPARE SPARE —
10 SENSOR2 E/R Fuse & Relay Box (COOLING FAN LOW RELAY), Lambda Sensor (D4FB), Stop Lamp Switch
20 ECU1 ECU
10 SENSOR1 DSL Box (PTC1 RELAY, GLOW RELAY), VGT Control Sensor, Camshaft Position Sensor, Electrical EGR Valve

Multi fuse box (diesel)

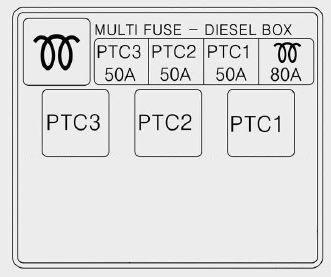

KIA Ceed - fuse box diagram - multi fuse (diesel)
KIA Ceed – fuse box diagram – multi fuse (diesel)
Description [A] Protrcted component
80 Glow Relay
PTC 1 50 PTC 1 Relay
PTC 2 50 PTC 2 Relay
PTC 3 50 PTC 3 Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
