KIA Forte (2017 – 2018) – fuse box diagram
Year of production: 2017, 2018

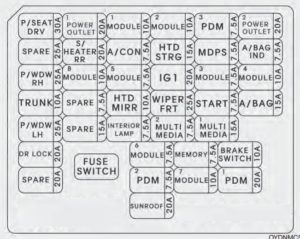

Instrument panel fuse panel
| Fuse name | Fuse rating [A] | Circuit protected |
| P/SEAT DRV | 30 | Driver IMS Module, Driver Seat Manual Switch |
| SPARE 4 | 25 | — |
| P/WDW RH | 25 | Smart Junction Box (Power Window RH Relay), Passenger Safety Power Window Module |
| TRUNK | 10 | Smart Junction Box (Trunk Relay) |
| P/WDW LH | 25 | Smart Junction Box (Power Window LH Relay), Driver Safety Power Window Module |
| DR LOCK | 20 | Smart Junction Box (Door Lock Relay, Door Unlock Relay), ICM Relay Box (Two Turn Unlock Relay) |
| SPARE 3 | 20 | — |
| POWER OUTLET 1 | 20 | Cigarette Lighter & Power Outlet (Cigarette Lighter) |
| S/HEATER RR | 20 | Rear Seat Warmer LH/RH |
| MODULE 8 | 10 | BCM, Smart Key Control Module |
| SPARE 2 | 7,5 | — |
| MODULE 9 | 15 | Driver/Passenger Smart Key Outside Handle, Driver/Passenger Power Outside Handle |
| MODULE 1 | 10 | Smart Key Control Module, BCM, Digital Clock, Audio, A/V & Navigation Head Unit, Power Outside Mirror Switch |
| A/CON | 7,5 | A/C Control Module, Cluster Ionizer, E/R Junction Block (Blower Relay, GSL PTC Heater Relay) |
| MODULE 5 | 7,5 | Driver/Passenger Seat Warmer Module, Driver Passenger Air Ventilation Seat Control Module, Rear Seat Warmer LH/RH, Sunroof |
| HTD MIRR | 10 | ECM/PCM, A/C Control Module, Driver/Passenger Power Outside Mirror |
| INTERIOR LAMP | 7,5 | Trunk Room Lamp, Glove Box Lamp, Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Ignition Key ILL. & Door Warning Switch, Luggage Lamp |
| MODULE 6 | 7,5 | Key Solenoid |
| PDM 2 | 7,5 | [With Smart Key] Smart Key Control Module [W/O Smart Key] Immobilizer Module |
| SUNROOF | 20 | Sunroof |
| MODULE 2 | 10 | Electro Chromic Mirror, Multipurpose Check Connector, A/C Control Module, Driver CCS Switch, Driver/Passenger Air Ventilation Seat Control Module, Driver/Passenger Seat Warmer Module, Driver IMS Module, A/V & Navigation Head Unit, ATM Lever Indicator, Rear Seat Warmer LH/RH, Rear Power Window Switch LH/RH, Rear Seat Warmer LH/RH, Audio, Dynamic Bending Light Module, Console Switch LH/RH |
| HTD STRG | 15 | Steering Wheel Heater |
| IG 1 | 20 | W/O Smart Key : E/R Fuse & Relay Box (Fuse – TCU, ECU 3, ABS 3) |
| WIPER FRT | 25 | Wiper Motor, E/R Fuse & Relay Box (Wiper Relay), Multifunction Switch (Wiper) |
| MULTIMEDIA 2 | 7,5 | — |
| MEMORY | 7,5 | Driver IMS Module, BCM, Tire Pressure Monitoring Module, Auto Light & Photo Sensor, Instrument Cluster, Data Link Connector, Digital Clock, A/C Control Module, Electro Chromic Mirror |
| MODULE 7 | 10 | ICM Relay Box (Turn Signal Lamp Sound Relay, Folding Relay, Unfolding Relay) |
| PDM 3 | 7,5 | [With Smart Key] Smart Key Control Module [W/O Smart Key] Immobilizer Module |
| MDPS | 7,5 | MDPS Unit |
| MODULE 3 | 7,5 | Instrument Cluster |
| START | 7,5 | [With Burglar Alarm & W/O Smart Key & W/O IMMO.] ICM Relay Box (Burglar Alarm Relay) [W/O Burglar Alarm or With Smart Key or With IMMO.] Transaxle Range Switch, Ignition Lock Switch |
| MULTIMEDIA 1 | 15 | Audio, A/V & Navigation Head Unit |
| BRAKE SWITCH | 10 | Stop Lamp Switch, Smart Key Control Module |
| PDM 1 | 20 | Smart Key Control Module |
| POWER OUTLET FRT | 20 | Cigarette Lighter & Power Outlet (Power Outlet) |
| A/BAG ING | 7,5 | Instrument Cluster (Air Bag IND.) |
| MODULE 4 | 10 | Crash Pad Switch, Tire Pressure Monitoring Module, Stop Lamp Switch, Digital Clock, BCM, Blind Spot Detection Radar LH/RH, MDPS Unit, AEB Module, Sport Mode Switch, AEB Radar |
| A/BAG | 15 | SRS Control Module, Weight Classification Module |

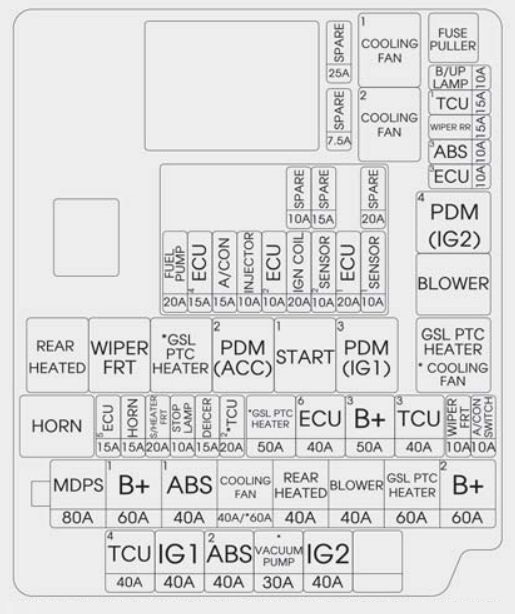

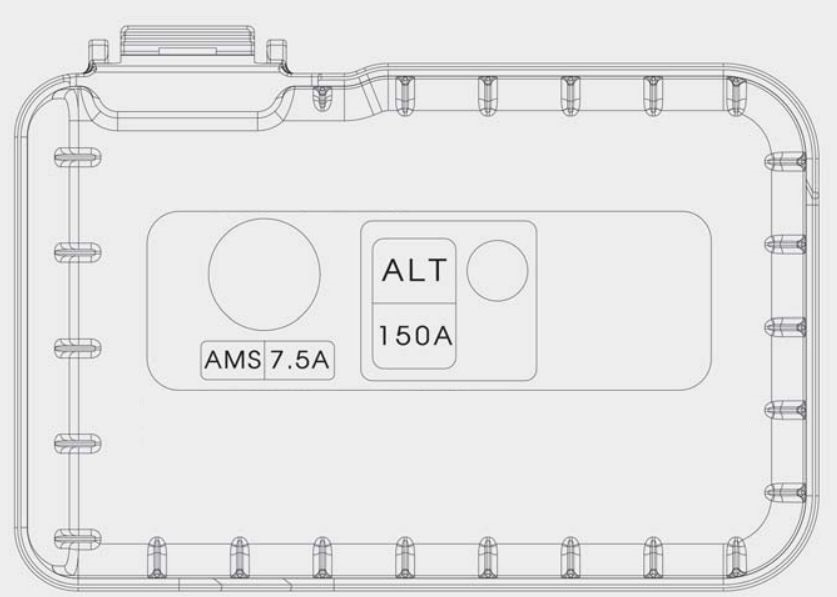

Engine compartment fuse panel
| Description | Fuse name | Fuse rating [A] | Circuit protected |
| MULTI FUSE | MDPS | 80 | MDPS Unit |
| B+1 | 60 | Smart Junction Box (ARISU-LT IPS 1 (4CH), Fuse – MODULE 6, MODULE 7, P/WDW LH, P/WDW RH, TRUNK) | |
| ABS 1 | 40 | ESC Module | |
| C/FAN | 40 | C/Fan Relay | |
| RR HTD | 40 | RR HTD Relay | |
| BLOWER | 40 | Blower Relay | |
| GSL PTC | 60 | GSL PTC Relay | |
| B+2 | 60 | Smart Junction Block (ARISU-LT IPS 3 (4CH), ARISU-LT IPS 4 (4CH), IPS 5 (2CH), Fuse – PDM 1, P/SEAT DRV BRAKE SWITCH, S/HEATER RR) | |
| FUSE | B/UP LAMP | 10 | A/T,DCT : Electro Chromic Mirror, Audio, A/V & Navigation Head Unit, Rear Combination Lamp (In) LH/RH M/T : Back-Up Lamp Switch |
| TCU1 | 15 | A/T : Transaxle Range Switch, DCT : Transaxle Range Switch, TCM | |
| ABS 3 | 10 | ESC Module | |
| ECU 3 | 10 | ECM/PCM, Vacuum Pump | |
| A/CON SWITCH | 10 | A/C Control Module, Blower Motor, Blower Relay, ECM/PCM, Blower Resistor | |
| WIPER FRT | 10 | ECM/PCM, Wiper Motor, E/R Junction Block (Wiper FRT Relay) | |
| B+3 | 50 | Smart Junction Box (Leak Current Autocut Device, Fuse – PDM 2, DR LOCK, SUNROOF) | |
| ECU 6 | 40 | EMS Block (Engine Control Relay, Fuse – ECU 4, A/CON, F/PUMP) | |
| GSL PTC HEATER | 50 | GSL PTC HEATER RELAY | |
| DEICER | 15 | ICM Relay Box (Front Deicer Relay) | |
| STOP LAMP | 15 | Stop Signal Electronic Module | |
| S/HEATER FRT | 20 | Driver/Passenger Air Ventilation Seat Control Module, Driver/Passenger Seat Warmer Module | |
| HORN | 15 | Horn Relay, ICM Relay Box (Burglar Alarm Horn Relay) | |
| ECU 5 | 15 | ECM/PCM | |
| IG 2 | 40 | W/O Smart Key : Ignition Switch, Start 1 Relay, With Smart Key : PDM 4 (IG2) Relay, Start 1 Relay | |
| ABS 2 | 40 | ESC Module | |
| IG 1 | 40 | W/O Smart Key : Ignition Switch, With Smart Key : PDM 3 (IG1) Relay, PDM 2 (ACC) Relay | |
| WIPER RR | 15 | Multifunction Switch, Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay), Ignition Switch, PDM 4 (IG2) Relay | |
| TCU 3 | 40 | TCM | |
| TCU 2 | 20 | TCM | |
| TCU 4 | 40 | TCM |
Fuse & Relay Box( NU 2.0L MPI/ NU 2.0 GDI)
| Relay No. | Relay name | Type |
| E41 | RR HTD RELAY | PLUG MICRO |
| E42 | WIPER RELAY | PLUG MICRO |
| E43 | WIPER RELAY | PLUG MICRO |
| E44 | PDM 2 (ACC) RELAY | PLUG MICRO |
| E45 | START 1 RELAY | PLUG MICRO |
| E46 | PDM 3 (IG1) RELAY | PLUG MICRO |
| E47 | C/FAN RELAY | PLUG MINI |
| E48 | HORN RELAY | PLUG MICRO |
| E49 | PDM 4 (IG2) RELAY | PLUG MICRO |
| E50 | BLOWER RELAY | PLUG MICRO |
| E52 | C/FAN 2 RELAY | PLUG MICRO |
Junction Block (GAMMA 1.6L T-GDI)
| Relay No. | Relay name | Type |
| E41 | RR HTD RELAY | PLUG MICRO |
| E42 | WIPER RELAY | PLUG MICRO |
| E43 | GSL PTC RELAY | PLUG MICRO |
| E44 | PDM 2 (ACC) RELAY | PLUG MICRO |
| E45 | START 1 RELAY | PLUG MICRO |
| E46 | PDM 3 (IG1) RELAY | PLUG MICRO |
| E47 | C/FAN RELAY | PLUG MINI |
| E48 | HORN RELAY | PLUG MICRO |
| E49 | PDM 4 (IG2) RELAY | PLUG MICRO |
| E50 | BLOWER RELAY | PLUG MICRO |
| E52 | C/FAN 2 RELAY | PLUG MICRO |
EMS Block (NU 2.0L MPI)
| Fuse name | Fuse rating | Circuit protected |
| F/PUMP | 15 | F/Pump Relay |
| ECU 4 | 15 | PCM |
| A/CON | 10 | A/CON COMP Relay |
| INJECTOR | 10 | EMS Block (F/Pump Relay) |
| SPARE | 10 | — |
| IGN COIL 1 | 20 | Ignition Coil #1/#2/#3/#4, EMS Block (F/PUMP Relay) |
| ECU 1 | 20 | ECM/PCM |
| SENSOR 2 | 10 | Oxygen Sensor (Up), Oxygen Sensor (Down), Variable Intake Solenoid Valve, EMS Block (A/CON COMP Relay) Purge Control Solenoid Valve, Canister Close Valve, E/R Junction Block (C/Fan 2 Relay) |
| SENSOR 1 | 10 | Oil Control Valve #1 (Intake), Oil Control Valve #2 (Exhaust), Oil Control Valve #3 (Signal), Electronic Thermostat |
| SPARE | 10 | — |
| SPARE | 15 | — |
| SPARE | 20 | — |
| Relay name | Type |
| ENGINE CONTROL RELAY | PCB |
| A/CON COMP RELAY | PLUG MICRO |
| F/PUMP RELAY | PLUG MICRO |
EMS Block (NU 2.0L MPI)
| Fuse name | Fuse rating | Circuit protected |
| F/PUMP | 15 | F/Pump Relay |
| ECU 4 | 15 | PCM/ECM |
| A/CON | 10 | A/CON COMP Relay |
| INJECTOR | 10 | EMS Block (F/Pump Relay) |
| ECU 2 | 10 | PCM/ECM |
| IGN COIL 1 | 20 | Ignition Coil #1/#2/#3/#4, Condenser |
| ECU 1 | 20 | PCM/ECM |
| SENSOR 2 | 10 | Oxygen Sensor (Up), Oxygen Sensor (Down), Variable Intake Solenoid Valve, EMS Block (A/CON COMP Relay) Purge Control Solenoid Valve, Canister Close Valve, E/R Junction Block (C/Fan 2 Relay)Oil Control Valve #1 (Intake), Oil Control Valve #2 (Exhaust) |
| SPARE | 10 | — |
| SPARE | 10 | — |
| SPARE | 15 | — |
| SPARE | 20 | — |
| Relay name | Type |
| ENGINE CONTROL RELAY | PCB |
| A/CON COMP RELAY | PCB |
| F/PUMP RELAY | PCB |
EMS Block GAMMA 1.6L T-GDI
| Fuse name | Fuse rating | Circuit protected |
| F/PUMP | 15 | F/Pump Relay |
| ECU 4 | 15 | PCM/ECM |
| A/CON | 10 | A/CON COMP Relay |
| INJECTOR | 10 | EMS Block (F/Pump Relay) |
| ECU 2 | 10 | PCM/ECM |
| IGN COIL 1 | 20 | Ignition Coil #1/#2/#3/#4, Condenser |
| ECU 1 | 20 | PCM/ECM |
| SENSOR 2 | 10 | Oxygen Sensor (Up), Oxygen Sensor (Down), Variable Intake Solenoid Valve, EMS Block (A/CON COMP Relay) Purge Control Solenoid Valve, Canister Close Valve, E/R Junction Block (C/Fan 2 Relay)Oil Control Valve #1 (Intake), Oil Control Valve #2 (Exhaust) |
| SPARE | 10 | — |
| SPARE | 10 | — |
| SPARE | 15 | — |
| SPARE | 20 | — |
| Relay name | Type |
| ENGINE CONTROL RELAY | PCB |
| A/CON COMP RELAY | PCB |
| F/PUMP RELAY | PCB |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
