Kia Rio (2000 – 2005) – fuse box diagram
Year of production: 2000, 2001, 2002, 2003, 2004, 2005

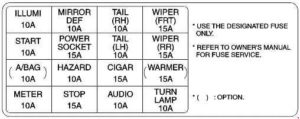

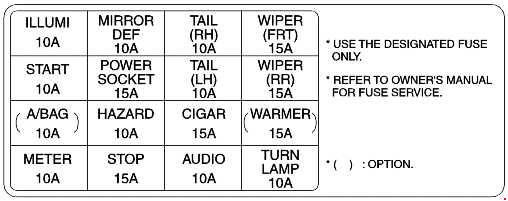

The instrument panel fuse panel
| Fuse |
A |
Function |
| A/BAG | 10 | Airbag |
| TURN LAMP | 10 | Turn signal lamp |
| METER | 10 | Meterset, Backup lamp, Warning sound |
| ILLUMi | 10 | Illumination |
| POWER SOCKET | 15 | Trunk room lamp. Power socket |
| HAZARD | 10 | Hazard lamp |
| STOP | 15 | Stop lamp, ABS |
| TAEL (RH) | 10 | Tail lamp (Right-Rear/Left-Front), Switch illumination |
| TAIL (LH) | 10 | Tail lamp (Left-Rear/Right-Front) |
| CIGAR | 15 | Cigarette lighter |
| AUDIO | 10 | Audio, Electric rearview mirror |
| WIPER(FRT) | 15 | Wiper(front), Washer(front). Sunroof |
| WIPER(RR) | 15 | Wiper(Rear), Washer(Rear) |
| WARMER | 15 | Seat warmer |
| MIRROR DEF | 10 | Mirror defroster |
| START | 10 | Engine control unit, ECAT unit |

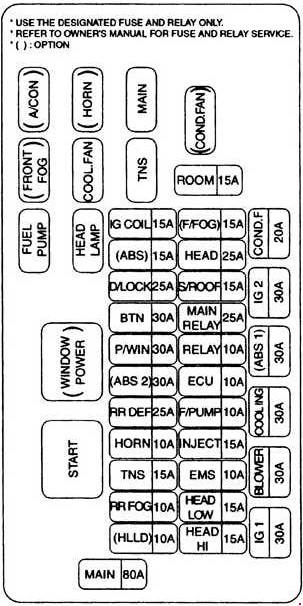

Engine compartment fuse box
| Fuse |
A |
Function |
| ABS | 15 | ABS |
| RR FOG | 10 | Rear fog light |
| F/FOG | 15 | Front fog light |
| MAIN | 80 | Battery is not rechargeable |
| IG 1 | 30 | CIGAR 10А, AUDIO 10A, IGCOIL 15A, TURN LAMP 10A, A/BAG 10A, WIPER(RR) 15A, WIPER(FRT) I5A, RELAY 10A, START 10A |
| BLOWER | 30 | Heater |
| COOLING | 30 | Cooling fan |
| ABS 1 | 30 | ABS |
| COND. FAN | 20 | Condenser fan |
| HEAD-HI | 15 | Head lamp high |
| HEAD-LOW | 15 | Head lamp low |
| EMS | 10 | Engine sensors |
| INJECTOR | 15 | Injector, O2 sensor |
| F/PUMP | 10 | Fuel pump |
| ECU | 10 | Engine control unit. ECAT unit. Main relay |
| RELAY | 10 | Blower motor, Power window, Rear window defroster, Head Iamp |
| HLLD | 10 | – |
| MAIN RELAY | 25 | EMS 10A, INJECTOR 15A, F/PUMP 10A, ECU 10A |
| S/ROOF | 15 | Sunroof |
| HEAD | 25 | HEAD-HI 15A, HEAD-LOW 15A, FOG LAMP(RR) 10A |
| IG 2 | 30 | – |
| TNS | 15 | TAIL (LH) 10A, TAIL(RH) 10A |
| HORN | 10 | Horn |
| RR DEF | 25 | Rear window defroster |
| ABS 2 | 20 | ABS |
| P/WIN | 30 | Power window |
| BTN | 30 | MEMORY/ROOM 10A, STOP 15A, HAZARD 15A |
| D/LOCK | 25 | Power door lock |
| IG COIL | 15 | Ignition coil |
| ROOM | 15 | Room LAMP, Audio, Meterset, Warning sound |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
