KIA Rio (2001) – fuse box diagram
Year of production: 2001

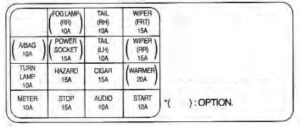

Driver’s side kick panel
| Description | Fuse rating [A] | Protected component |
| (A/BAG) | 10 | Airbag |
| TURN LAMP | 10 | Turn signal lamp |
| METER | 10 | Meterset, Backup lamp, Warning sound |
| (FOG LAMP (RR)) | 10 | Rear Fog lamp |
| POWER SOCKET | 15 | Trunk room lamp, power socket |
| HAZARD | 15 | Hazard lamp |
| STOP | 15 | Stop lamp, ABS |
| TAIL (RH) | 10 | Tail lamp (Right-Rear/Left-Front), Switch illumination |
| TAIL (LH) | 10 | Tail lamp (Left-Rear/Right-Front) |
| CIGAR | 15 | Cigarette lighter |
| AUDIO | 10 | Audio, Electric reaview mirror |
| WIPER (FRT) | 15 | Wiper (front), Washer (front), Sunroof |
| (WIPER (RR)) | 15 | Wiper (Rear), Washer (Rear) |
| START | 10 | Engine control unit, ECAT unit |
| (): Optional | ||
Engine compartment
| Description | Fuse rating [A] | Protected component | |
| 1 | MAIN | 80 | Battery is not rechargeable |
| 2 | IG KEY1 | 30 | (It will be automatically connected to the secondary fuse)
CIGAR – 10 A AUDIO – 10 A IG COIL – 15 A TURN LAMP – 10 A A/BAG – 10 A WIPER (RR) – 15 A WIPER (FRT) – 15 A RELAY – 10 A START – 10 A |
| 3 | BLOWER | 30 | Heater |
| 4 | C/FAN | 20 | Cooling fan |
| 5 | (ABS 1) | 30 | ABS |
| 6 | — | — | — |
| 7 | (COND. FAN) | 20 | Condenser fan |
| 8 | HEAD-HI | 15 | Head lamp high |
| 9 | HEAD-LOW | 15 | Head lamp low |
| 10 | EMS | 10 | Engine sensors |
| 11 | INJECTOR | 15 | Injector; O2 sensor |
| 12 | F/PUMP | 10 | Fuel pump |
| 13 | ECU | 10 | Engine control unit; ECAT unit, Main relay |
| 14 | RELAY | 10 | Blower motor, Power window, Rear window defroster, Head lamp (Airbag equipped vehicle) |
| 15 | MAIN RELAY | 25 | (It will be automatically connected to the secondary fuse)
EMS – 10 A INJECTOR – 15 A F/PUMP – 10 A ECU – 10 A |
| 16 | S/ROOF | 15 | Sunroof |
| 17 | HEAD | 25 | (It will be automatically connected to the secondary fuse)
HEAD-HI – 15 A HEAD -LOW – 15 A FOG LAMP (RR) – 10 A |
| 18 | — | — | — |
| 19 | — | — | — |
| 20 | (HLLD) | 10 | |
| 21 | IG KEY2 | 25 | |
| 22 | TNS | 15 | (It will be automatically connected to the secondary fuse)
TAIL (LH) – 10 A TAIL (RH) – 10A |
| 23 | HORN | 10 | Horn |
| 24 | RR DEF | 20 | Rear window defroster |
| 25 | (ABS 2) | 20 | ABS |
| 26 | (P/WIN) | 30 | Power window |
| 27 | BTN | 30 | (It will be automatically connected to the secondary fuse)
MEMORY/ROOM – 10 A STOP – 15 A HAZARD – 15 A |
| 28 | (D/LOCK) | 25 | Power door lock |
| 29 | IG COIL | 15 | Ignition coil |
| 30 | MEMORY/ROOM | 15 | Room LAMP, Audio, Meterset Warring sound |
| (): Optional | |||
Relays
| Relays | Description | |
| MINI RELAYS | 31 | BLOWER |
| 32 | P?WIN | |
| MICRO RELAYS | 33 | COND FAN |
| 34 | TNS | |
| 35 | MAIN | |
| 36 | H/LAMP | |
| 37 | C/FAN | |
| 38 | HORN | |
| 39 | F/PUMP | |
| 40 | RR DEF | |
| 41 | A/CON | |
| (): Optional | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
