KIA Spectra (2005 – 2009) – fuse box diagram
Year of production: 2005, 2006, 2007, 2008, 2009

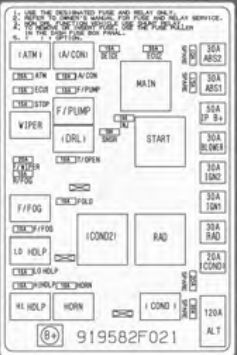

Engine compartment
| Description | Fuse rating [A] | Protected component |
| ATM | 20 | Automatic transaxle control |
| ECU1 | 10 | Engine control unit |
| STOP | 15 | Stop light |
| F/WIPER | 20 | Front wiper |
| R/FOG | 10 | Rear fog light |
| F/FOG | 15 | Front fog light |
| LO HDLP | 15 | Headlight (low |
| HI HDLP | 15 | Headlight (high) |
| A/CON | 10 | Air conditioner |
| F/PUMP | 15 | Fuel pump |
| T/OPEN | 10 | Trunk lid opener |
| FOLD | 10 | Outside rearview mirror folding |
| HORN | 10 | Horn |
| DEICE | 15 | Deicer |
| INJ | 15 | Injection |
| SNSR | 10 | O2 sensor |
| ECU2 | 30 | Engine control unit |
| SPARE | 10 | Spare fuse |
| SPARE | 15 | Spare fuse |
| SPARE | 20 | Spare fuse |
| SPARE | 30 | Spare fuse |
| ABS2 | 30 | Anti-lock brake system |
| ABS1 | 30 | Anti-lock brake system |
| IP B+ | 50 | In panel B+ |
| BLOWER | 30 | Blower |
| IGN2 | 30 | Ignition |
| IGN1 | 30 | Ignition |
| RAD | 30 | Condenser fan |
| COND | 20 | Condenser fan |
| ALT | 120 | Alternator |
| ATM | — | Automatic transaxle control relay |
| WIPER | — | Wiper relay |
| F/FOG | — | Front fog light relay |
| LO HDLP | — | Headlight relay (low) |
| HI HDLP | — | Headlight relay (high) |
| A/CON | — | Air conditioner relay |
| F/PUMP | — | Fuel pump |
| DRL | — | Daytime running light relay |
| COND2 | — | Condenser fan relay |
| HORN | — | Horn relay |
| MAIN | — | Main relay |
| START | — | Start motor relay |
| RAD | — | Radiator fan relay |
| COND | — | Condenser fan relay |

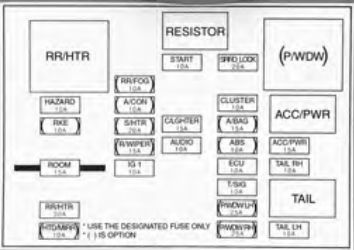

Driver-side knee bolster
| Description | Fuse rating [A] | Circuit protected |
| START | 10 | Start motor |
| SRF/D_LOCK | 20 | Sunroof, Door lock |
| RR FOG | 10 | Rear fog light |
| HAZARD | 10 | Hazard warning flasher |
| A/CON | 10 | Air conditioner |
| CLUSTER | 10 | Cluster |
| RKE | 10 | Remote keyless entry |
| S/HTR | 20 | Seat warmer |
| C/LIGHTER | 15 | Cigar lighter |
| A/BAG | 15 | Airbag |
| R/WIPER | 15 | Rear wiper |
| AUDIO | 10 | Audio |
| ABS | 10 | Anti-lock brake system |
| ACC/PWR | 15 | Accessory / Power socket |
| ROOM | 15 | Room lamp |
| IGN | 10 | Ignition |
| ECU | 10 | Engine control unit |
| TAIL RH | 10 | Tail light (right |
| T/SIG | 10 | Turn signal light |
| RR/HTR | 30 | Rear window defroster |
| P/WDW LH | 25 | Power window (left) |
| HTD/MIRR | 10 | Outside rearview mirror heater |
| P/WDW RH | 25 | Power window (right) |
| TAIL LH | 10 | Tail light (left) |
| RR/HTR | — | Rear window defroster relay |
| RESISTOR | — | Resistor |
| P/WDW | — | Power window relay |
| ACC/PWR | — | Accessory / Power socket relay |
| TAIL | — | Tail light relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
