KIA Sportage (2017 – 2018) – fuse box diagram
Year of production: 2017, 2018

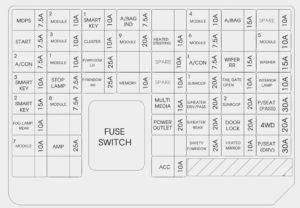

Instrument panel (driver’s side fuse panel)
| Fuse name | Ampere rating [A] | Protected component |
| MDPS | 7,5 | MDPS Unit |
| MODULE 2 | 10 | Headlamp LH/RH |
| SMART KEY 1 | 10 | Smart Key Control Module/Immobilizer Module |
| A/BAG IND | 7,5 | Instrument Cluster [Audio & Manual A/C] Hazard Switch [Audio & Auto A/C] A/C Control Module [Navigation] Center Facia Lamp |
| MODULE 4 | 10 | Console Switch, Blind Spot Detection Radar LH/RH, AWD ECM, Crash Pad Switch, BCM, Lane Departure Warning Control Module |
| A/BAG | 15 | SRS Control Module |
| START | 7,5 | [W/O Smart Key & IMMO.] ICM Relay Box (Burglar Alarm Relay), Ignition Switch [With Smart Key / IMMO.] Transaxle Range Switch, ECM, Smart Key Control Module |
| MODULE 3 | 10 | Front/Rear Seat Warmer Control Module, ATM Shift Lever ILL., Front Air Ventilation Seat Control Module, A/V & Navigation Head Unit, Electro Chromic Mirror, Audio, A/C Control Module, Multipurpose Check Connector, Adaptive Front Lighting Module |
| CLUSTER | 10 | Instrument Cluster |
| MODULE 9 | 20 | PCB Block (Fuse – ABS 3, VACUUM PUMP 2, ECU 6, AEB, TCU 2, MODULE) |
| HEATED STEERING |
15 | BCM |
| MODULE 6 | 7,5 | Front/Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| MODULE 5 | 10 | BCM, Smart Key Control Module |
| A/CON 2 | 7,5 | A/C Control Module |
| MODULE 1 | 10 | BCM, ATM Shift Lever |
| P/ WINDOW LH | 25 | Power Window Main Switch |
| A/CON 1 | 7,5 | A/C Control Module, Cluster Ionizer, E/R Junction Block (Blower Relay) |
| WIPER RR | 15 | Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay) |
| WASHER | 15 | Multifunction Switch |
| SMART KEY 3 | 10 | [W/O Smart Key] Immobilizer Module [With Smart Key] Smart Key Control Module, Start/Stop Button Switch |
| STOP LAMP | 7,5 | Smart Key Control Module, Stop Lamp Switch |
| P/ WINDOW RH | 25 | Power Window Main Switch, Passenger Power Window Switch |
| MEMORY | 10 | Wireless Charger, Instrument Cluster, Data Link Connector, BCM, ICM Relay Box (Outside Mirror Folding/Unfolding Relay), Electro Chromic Mirror, A/C Control Module, Console Switch |
| SUN ROOF 1 | 20 | Panorama Sunroof |
| TAIL GATE OPEN |
10 | Tail Gate Relay |
| INTERIOR LAMP | 10 | Ignition Key Ill.& Door Warning Switch, Room Lamp, Overhead Console Lamp, Front Vanity Lamp LH/RH, Rear Personal Lamp LH/RH, Luggage Lamp, Glove Box Lamp |
| SMART KEY 2 | 15 | Smart Key Control Module |
| MODULE 8 | 7,5 | Key Solenoid |
| MULTI MEDIA | 15 | Audio, A/V & Navigation Head Unit, Rear USB Charger |
| S/HEATER DRV/PASS |
20 | Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module |
| SUN ROOF 2 | 20 | Panorama Sunroof |
| P/SEAT (PASS) | 30 | Passenger Seat Manual Switch |
| POWER OUTLET | 20 | Front Power Outlet #1 (Front Cigarette Lighter) |
| S/HEATER REAR |
20 | Rear Seat Warmer Control Module |
| DOOR LOCK | 20 | Door Lock/Unlock Relay |
| 4WD | 20 | AWD ECM |
| MODULE 7 | 10 | Hazard Switch, Driver/Passenger Smart Key Outside Handle, AEB Sensor |
| AMP | 25 | AMP |
| SAFETY P/ WINDOW |
25 | Driver Safety Power Window Module |
| HEATED MIRROR |
10 | Driver/Passenger Power Outside Mirror, A/C Control Module |
| P/SEAT (DRV) | 30 | Driver Seat Manual Switch |
| ACC | 10 | Rear USB Charger, AMP, Power Outside Mirror Switch, PCB Block(Power Outlet Relay), Smart Key Control Module, Audio, A/V & Navigation Head Unit, BCM, Wireless Charger |

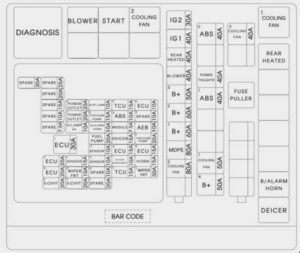

Engine compartment fuse panel
| Fuse name | Ampere rating [A] | Protected component | |
| MULTI FUSE | COOLING FAN 2 | 80 | Cooling Fan Motor |
| MDPS | 80 | MDPS Unit | |
| B+ 1 | 60 | Smart Junction Block (IPS 2 (5CH), IPS 3 (2CH), IPS 4 (2CH), IPS 5 (2CH), IPS 6 (1CH), Fuse – AMP) | |
| B+ 2 | 60 | Smart Junction Block (IPS 1 (5CH), Fuse – MODULE 7, SMART KEY 2, SMART KET 3, MODULE 8, STOP LAMP) | |
| B+ 3 | 50 | Smart Junction Block (Fuse – SUNROOF 1, SUNROOF 2, S/HEATER DRV/PASS, S/HEATER REAR, SAFETY P/WINDOW, Power Window Relay | |
| BLOWER | 40 | Blower Relay | |
| REAR HEATED | 40 | Rear Heated Relay | |
| IG1 | 40 | [W/O Smart Key] Ignition Switch, [With Smart Key] PCB Block (PDM (IG1)/PDM (ACC) Relay) | |
| IG2 | 30 | Start Relay, [W/O Smart Key] Ignition Switch, [With Smart Key] PCB Block (PDM (IG2) Relay) | |
| FUSE | B+ 4 | 50 | Smart Junction Block (Fuse – AWD, P/SEAT (DRV), P/SEAT (PASS), TAIL GATE OPEN, DOOR LOCK, Leak Current Autocut Device Relay) |
| COOLING FAN 1 | 50 | Cooling Fan 1 Relay | |
| ABS 1 | 40 | ESC Control Module, Multipurpose Check Connector | |
| POWER TAIL GATE |
40 | Power Tail Gate Module | |
| ABS 2 | 40 | ESC Module | |
| COOLING FAN 3 | 40 | Cooling Fan 1 Relay | |
| E-CVVT 1 | 20 | PCM | |
| E-CVVT 2 | 20 | PCM | |
| WIPER FRT 1 | 30 | [W/O Smart Key] Ignition Switch, [With Smart Key] PDM (IG2) Relay | |
| TCU 1 | 15 | PCM | |
| WIPER FRT 2 | 10 | BCM, PCM | |
| ECU 3 | 20 | PCM | |
| HORN | 15 | A Horn Relay | |
| BATTERY MANAGEMENT |
10 | Battery Sensor | |
| SENSOR 2 | 10 | Fuel Pump Relay, Oil Control Valve, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, RCV Control Solenoid Valve | |
| SENSOR 1 | 15 | Oxygen Sensor (Up/Down) | |
| ECU 2 | 20 | Ignition Coil #1/#2/#3/#4 | |
| ECU 4 | 15 | PCM | |
| SENSOR 3 | 10 | E/R Junction Block (Cooling Fan 1 Relay), Canister Close Valve | |
| FUEL PUMP | 20 | Fuel Pump Relay | |
| AEB | 10 | AEB Sensor | |
| MODULE | 7,5 | Stop Lamp Switch | |
| B/ALARM HORN |
10 | E/R Junction Block (B/Alarm Horn Relay) | |
| H/LAMP HI | 10 | BI-Function H/LP Relay | |
| ABS 3 | 10 | ESC Module | |
| POWER OUTLET 1 |
20 | Front Power Outlet #2 | |
| ECU 6 | 10 | PCM | |
| TCU 2 | 15 | Transaxle Range Switch | |
| B/UP LAMP | 10 | Rear Bumper Lamp LH/RH, Electro Chromic Mirror | |
| POWER OUTLET 2 |
20 | Rear Power Outlet | |
| ECU 1 | 30 | Engine Control Relay | |
| DEICER | 15 | E/R Junction Block (Deicer Relay) | |
| VACUUM PUMP 1 |
20 | Vacuum Pump | |
| VACUUM PUMP 2 |
15 | Vacuum Pump, Cooling Fan Motor, Vacuum Switch | |
Relay
| Relay name | Type |
| Cooling Fan 1 Relay | MINI |
| Rear Defogger Relay | MICRO |
| B/A Horn Relay | MICRO |
| Deicer Relay | MICRO |
| Cooling Fan 2 Relay | MICRO |
| Start Relay | MICRO |
| Blower Relay | MICRO |

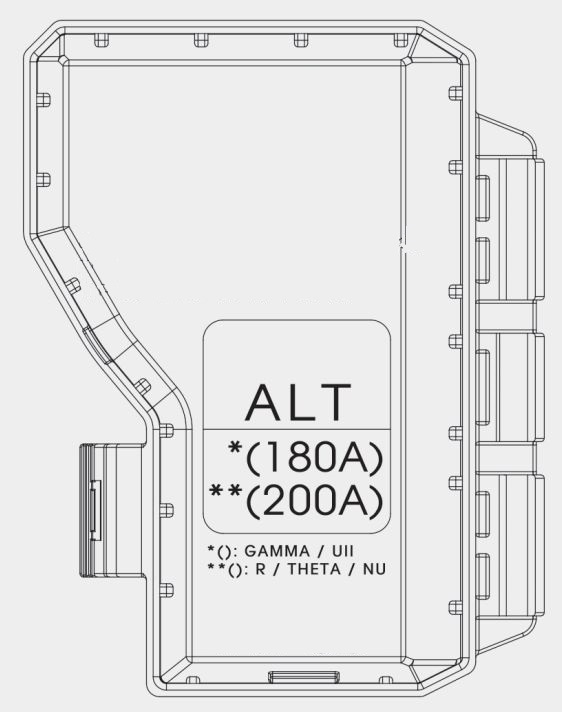

Engine compartment fuse panel (Battery terminal cover)
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
