Year of production:

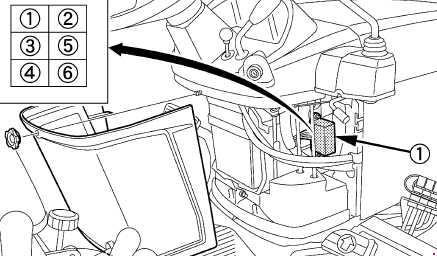

| Number | Ampere ratting [A] | Protected circuit |
| 1 | 15 | Solenoid |
| 2 | 15 | Hazard |
| 3 | 15 | ACC |
| 4 | 20 | Working Light |
| 5 | 10 | DC Outlet |
| 6 | 10 | Timer Relay |

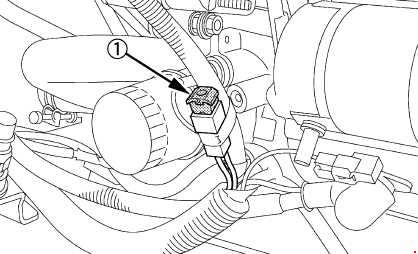

| Number | Ampere ratting [A] | Protected circuit |
| 1 | 50 | Check circuit against wrong battery connection |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
