Kubota Power Krawler M8540 Narrow – fuse box diagram
Year of production:

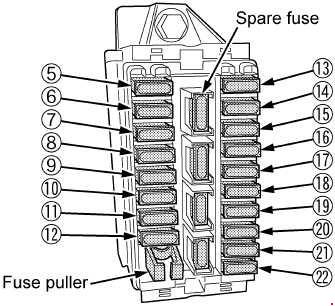

Fuse box
Number | Ampere ratting [A] | Protected circuit |
1 | 20 | Side Window Defogger |
2 | 20 | Rear Window Defogger |
3 | 10 | 4WD / Bi-Speed Turn |
4 | 10 | 45WD brake |
5 | 15 | Work Light (Rear) |
6 | 15 | Work Light (Front) |
7 | 15 | Cigarette Lighter |
8 | 20 | Air Conditioner (Fan Motor) |
9 | 10 | Air Conditioner (Compressor) |
10 | 15 | Work Light (Front, Side) |
11 | 15 | Auxiliary Power |
12 | 5 | Starter Relay |
13 | 5 | Radio |
14 | 5 | Air Conditioner (Control) |
15 | 15 | Wiper |
16 | 5 | Alternator, Engine, PTO, Heater |
17 | 5 | Meter Panel, OPC |
18 | 10 | Turn Signal, Stop Lamp |
19 | 10 | Meter, Radio (Back Up) |
20 | 20 | Head Light, Position Lamp |
21 | 20 | Flasher (Hazard) |
22 | 20 | Spare Fuse |

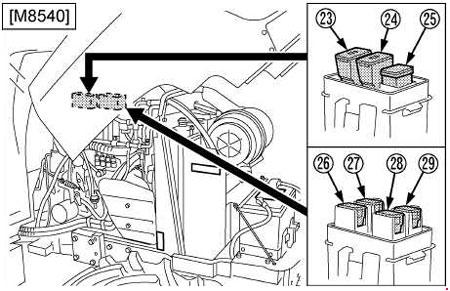

Number | Ampere ratting [A] | Protected circuit |
23 | 50 | Head Light, Hazard |
24 | 50 | Air Heater |
25 | 100 | Charge |
26 | 30 | Electrical Outlet |
27 | 40 | Air Conditioner |
28 | 30 | Work Light, Fuel Cut Solenoid |
29 | 30 | Key Switch |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
