Lada Granta – fuse box diagram

20 July 2019 admin Granta, Lada 0

Lada Granta – fuse box diagram

Year of production:

Passenger compartment diagram

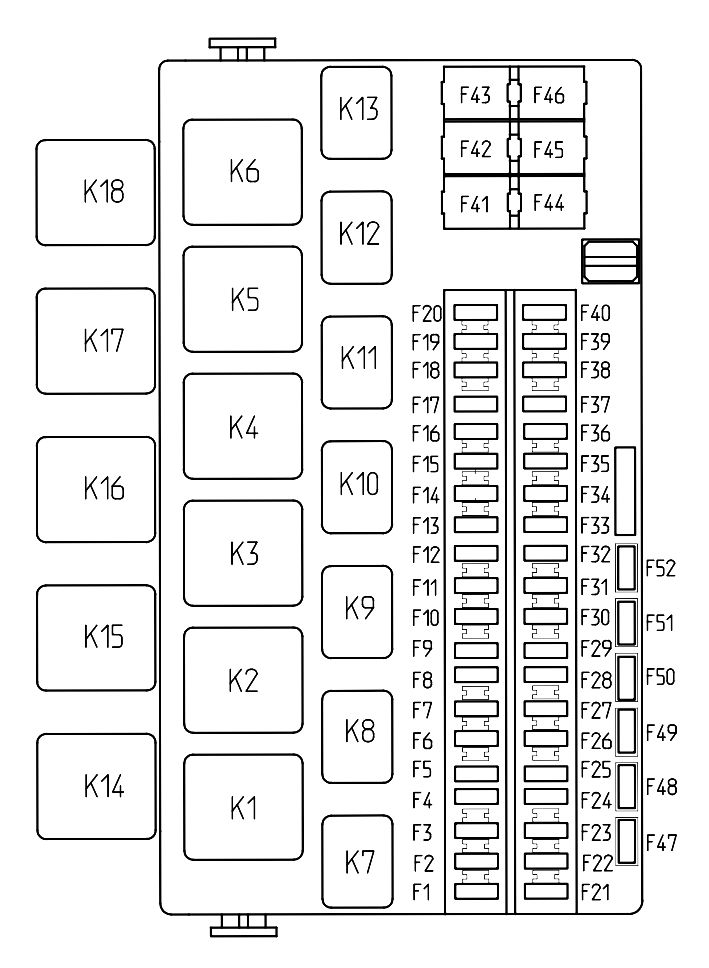

Lada Granta - fuse box diagram - passenger compartment
Lada Granta – fuse box diagram – passenger compartment

Passenger compartment (Luxe version)

Fuse [A] Circuit protected
F1 15 Ignition coil, Nozzles, EMS control unit
F2 30 Body electronics mainframe
F3 10 Body electronics mainframe, Warning light switch
F4 15 Air bags controller, Rain sensor
F5 7,5 Terminal clamp – 15 devices
F6 7,5 Backup light, Backup light relay, Parking Assist System control unit
F7 7,5 Adsorber blowdown valve, Mass airflow sensor/pressure sensor, Phase sensor, Oxygen sensor, Tire Pressure Monitoring System control unit
F8 — Reserve
F9 5 Right side parking lights
F10 5 Left side parking lights, Instrument panel and buttons illumination, License plate lamp, Trunk compartment lamp, Glove box lamp
F11 5 Rear fog light
F12 10 Low beam, RH lamp
F13 10 Low beam, LH lamp
F14 15 Socket to connect additional devices in the trunk
F15 10 Rear window wiper, Rear window washer
F16 5 Driver door module
F17 — Reserve
F18 — Reserve
F19 — Reserve
F20 — Reserve
F21 10 High beam, RH lamp
F22 10 High beam, LH lamp
F23 10 RH fog light
F24 10 LH fog light
F25 15 FR seats heating
F26 5 ABS control unit/ESP control unit
F27 15 Cigar lighter
F28 15 Fuel pump
F29 20 Body electronics mainframe, Windshield wiper, Windshield washer
F30 — Reserve
F31 7,5 Air conditioner compressor clutch
F32 7,5 Stop signal, Automatic gearbox controller
F33 25 ABS control unit/ESP control unit
F34 5 Instrument cluster, Diagnostic connector
F35 — Reserve
F36 10 Audio signal (horn)
F37 10 Multimedia system
F38 — Reserve
F39 — Reserve
F40 — Reserve
F41 50 Windshield heater
F42 — Reserve
F43 50 Windshield heater
F44 30 Heater electric fan, Climate control system controller
F45 25 Rear window defroster, Outside mirrors defroster
F46 — Reserve


Passenger compartment (Standard version)

Fuse [A] Circuit protected
F1 15 Ignition coil, Nozzles, EMS control unit
F2 — Reserve
F3 10 Alarm signaling
F4 20 Windshield washer, Windshield wiper
F5 7,5 Terminal clamp – 15 devices
F6 7,5 Backup light/Backup light relay*, Turn indicators
F7 7,5 Adsorber blowdown valve, Mass airflow sensor/pressure sensor, Phase sensor, Oxygen sensor, Tire Pressure Monitoring System control unit*
F8 — Reserve
F9 5 Right side parking lights
F10 5 Left side parking lights, Instrument panel and buttons illumination, License plate lamp, Trunk compartment lamp
F11 5 Rear fog light
F12 10 Low beam, RH lamp
F13 10 Low beam, LH lamp
F14 15 Socket to connect additional devices in the trunk
F15 10 Rear window wiper*, Rear window washer*
F16 — Reserve
F17 — Reserve
F18 — Reserve
F19 — Reserve
F20 — Reserve
F21 10 High beam, RH lamp
F22 10 High beam, LH lamp
F23 10 RH fog light
F24 10 LH fog light
F25 15 FR seats heating*
F26 5 ABS control unit/ESP control unit
F27 15 Cigar lighter
F28 15 Fuel pump
F29 15 Door lock blocking motor-reducer, Trunk lock blocking motor-reducer
F30 10 Day time running lights
F31 7,5 Air conditioner compressor clutch*
F32 7,5 Stop signal, Automatic gearbox controller*, Passenger compartment lamp
F33 25 ABS control unit/ESP control unit
F34 5 Instrument cluster, Diagnostic connector
F35 15 Air bags control unit
F36 10 Audio signal (horn)
F37 10 Multimedia system
F38 — Reserve
F39 — Reserve
F40 — Reserve
F41 50 Windshield heater *
F42 30 FR door electric window lifters *
F43 50 Robotized gearbox controller *
F44 30 Heater electric fan, Climate control system controller *
F45 25 Rear window defroster, Outside mirrors defroster*
F46 — Reserve
* For «Norm» version of equipment with options.


Relay located within fuse block and passenger compartment relay in «Luxe» version*

Fuse [A] Circuit protected
K1 50 Load reduction relay of the ignition switch
K2 30 Starter relay
K3 40 Radiator electric cooling fans relay
K4 30 Radiator electric cooling fans relay
K5 30 Air conditioner compressor clutch relay
K6 30 Rear window and outside mirrors defroster relay
K7 20 High beam relay
K8 20 Audio signal (horn) relay
K9 20 Low beam relay
K10 20 Backup light relay
K11 20 Electronic engine management system main relay
K12 20 Fuel pump relay
K13 20 Seats heating relay
K14 70 Windshield heating relay
K15 — Reserve
K16 — Reserve
K17 — Reserve
K18 — Reserve
* It is specified the set of relays for the top level of equipment – «Luxe» (depending on the set of options selected some fuses of this set in other versions may not be used)


Relay located within fuse block and passenger compartment relay in «Norm» and «Standard» versions

Fuse [A] Circuit protected
K1 50 Load reduction relay of the ignition switch
K2 30 Starter relay
K3 Wiper relay
K4 30 Radiator electric cooling fans relay
K5 Turn indicators and alarm signaling relay
K6 30 FR electric window lifters relay*
K7 20 High beam relay
K8 20 Audio signal (horn) relay
K9 20 Low beam relay
K10 20 Backup light relay
K11 20 Electronic engine management system main relay
K12 20 Fuel pump relay
K13 20 Seats heating relay*
K14 70 Windshield heating relay*
K15 30 Rear window and outside mirrors defroster relay
K16 30 Air conditioner compressor clutch relay *
K17 — Reserve
K18 40 Radiator electric cooling fans relay *
* For «Norm» version of equipment with options.
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
