Land Rover Freelander L359 (2006 – 2016) – fuse box diagram
Year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016

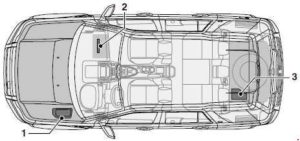

Fuse box locations
- Engine compartment fuse box
- Passenger compartment fuse box
- Luggage compartment fuse box

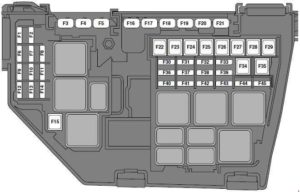

Engine compartment fuse box
| No. |
A |
Circuits protected |
| F1 | 5 | up to 2011: Glow plugs from 2012: Auxiliary water pump from 2013: – |
| F2 | 15 | up to 2012: Automatic transmission |
| F2 | 5 | from 2013: Voltage module |
| F3 | 80 | Cooling fans |
| F4 | 60 | Glow plugs |
| F5 | – | – |
| F6 | 10 | up to 2012; diesel: Engine management |
| F6 | 15 | up to 2012; petrol: Engine management |
| F6 | 15 | from 2013: Engine management. Oxygen sensors |
| F7 | 5 | Relays |
| F8 | 10 | up to 2012; diesel: Engine management |
| F8 | 15 | up to 2012; petrol: Engine management |
| F8 | 20 | from 2013: Engine management |
| F9 | 10 | up to 2012; diesel: Engine management |
| F9 | 15 | up to 2012; petrol: Engine management |
| F9 | 10 | from 2013: Engine management |
| F10 | 10 | up to 2012; petrol: Engine management |
| F10 | 15 | from 2013: Automatic transmission |
| F11 | 10 | Engine management |
| F12 | 10 | up to 2012; diesel: Engine management |
| F12 | 20 | up to 2012; petrol: Engine management |
| F12 | 15 | from 2013: Engine management |
| F13 | 15 | up to 2012: Air Conditioning |
| F13 | 10 | from 2013: Air Conditioning |
| F14 | 15 | up to 2012; diesel: Engine management |
| F14 | 15 | from 2013: Engine management. Air conditioning |
| F15 | 40 | Starter motor |
| F16 | 100 | Diesel PTC heater |
| F17 | 60 | Passenger compartment fuse box supply |
| F18 | 60 | Passenger compartment fuse box supply |
| F19 | 60 | up to 2012: Luggage compartment fuse box supply |
| F19 | 60 | from 2013: Luggage compartment fuse box supply. Audio system |
| F20 | 60 | Luggage compartment fuse box supply |
| F21 | 60 | up to 2012: Luggage compartment fuse box supply – Audio unit |
| F21 | 60 | from 2013: Luggage compartment fuse box supply |
| F22 | 30 | Windscreen wipers |
| F23 | 40 | up to 2012: – from 2013: Passenger compartment fuse box supply |
| F24 | 30 | up to 2012: Headlamp washers from 2013: – |
| F25 | 30 | ABS |
| F26 | 40 | ABS |
| F27 | 40 | up to 2012: – from 2013: Passenger compartment fuse box supply |
| F28 | 40 | Heater blower |
| F29 | – | – |
| F30 | 15 | up to 2012: – from 2013: Headlamp washer |
| F31 | 15 | Horns |
| F32 | 20 | Diesel auxiliary heater |
| F33 | 5 | Relays |
| F34 | 40 | Heated windscreen(LH) |
| F35 | 40 | Heated windscreen (RH) |
| F36 | 5 | up to 2012: – from 2013: Auxiliary heater water pump (diesel only) |
| F37 | 10 | up to 2012: Heated washer jets |
| F37 | 20 | from 2013: Fuel pump |
| F38 | 10 | up to 2012: AFS (RH lamp motors) |
| F38 | 10 | from 2013: Parking aid module |
| F39 | 10 | up to 2012: Climate control from 2013: – |
| F40 | 10 | up to 2010: – up to 2012: Auxiliary water pump from 2013: – |
| F41 | 20 | up to 2012: Passenger compartment fuse box supply from 2013: – |
| F42 | 15 | up to 2012: Engine management |
| F42 | 5 | from 2013: Headlamp levelling control |
| F43 | 5 | up to 2012: Headlamp levelling control -AFS |
| F43 | 5 | from 2013: Automatic high beam. Rear view camera |
| F44 | 10 | up to 2012: AFS (LH lamp motors) |
| F44 | 10 | from 2013: Heated steering wheel |
| F45 | 15 | up to 2012: Cigar lighter |
| F45 | 5 | from 2013: Auxiliary heater water pump (diesel only) |

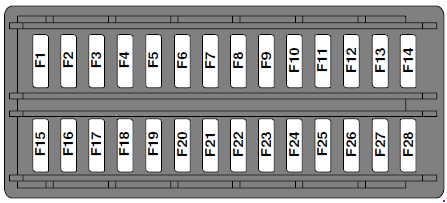

Passenger compartment fuse box (up to 2012)
| No. |
A |
Circuits protected |
| F1 | 5 | Rain sensor |
| F2 | 10 | SRS |
| F3 | 5 | ABS |
| F4 | 5 | Instrument pack – Accelerator pedal – Light Switch Module |
| F5 | 5 | – |
| F6 | 15 | Audio unit |
| F7 | 7.5 | Steering wheel controls |
| F8 | 5 | Instrument pack |
| F9 | 15 | Headlamp main beam |
| F10 | 15 | Sunroof |
| F11 | 7.5 | Reverse lights and interior mirror dip |
| F12 | – | – |
| F13 | 15 | Front fog lamps |
| F14 | 15 | Screen wash |
| F15 | – | – |
| F16 | – | – |
| F17 | 7.5 | Interior lighting |
| F18 | – | – |
| F19 | 5 | Electric seat adjustment |
| F20 | 15 | Rear wiper |
| F21 | 5 | Alarm |
| F22 | 20 | Fuel pump |
| F23 | 20 | Steering column lock |
| F24 | – | – |
| F25 | 10 | Tailgate – Fuel filler flap |
| F26 | 5 | Diagnostic socket and alarm |
| F27 | 5 | Start button and climate control |
| F28 | 5 | Brake lights |
| F29 | 15 | Voltage module |

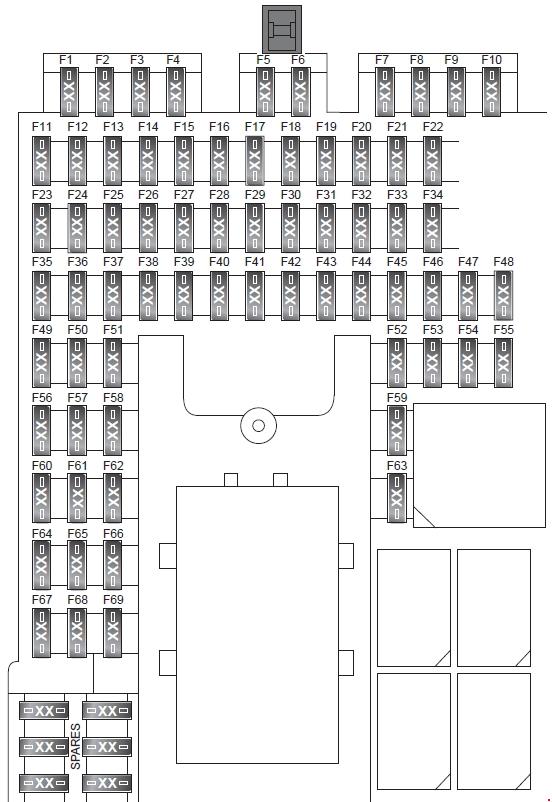

Passenger compartment fuse box (from 2013)
| No. |
A |
Circuits protected |
| F1 | 5 | RF receiver. Interior motion sensor. Tyre Pressure Monitoring System (TPMS) |
| F2 | – | – |
| F3 | 15 | Front fog lamps |
| F4 | – | – |
| F5 | 5 | Slip control module |
| F6 | 5 | Ignition supply for engine compartment fuse box and luggage compartment fuse box relays. |
| F7 | – | – |
| F8 | 25 | Front passenger door module |
| F9 | 5 | EPB |
| F10 | 5 | Heated washer jets |
| F11 | 10 | Reverse light trailer |
| F12 | 10 | Reverse lights. Mirror control |
| F13 | – | – |
| F14 | 5 | Brake pedal switch |
| F15 | 30 | Heated rear screen |
| F16 | – | – |
| F17 | 5 | Keyless Vehicle Module (KVM) |
| F18 | – | – |
| F19 | 5 | Power-train Control Module (PCM) |
| F20 | 5 | Accelerator pedal |
| F21 | 5 | Instrument panel. Centre console. Electric booster heater |
| F22 | 5 | Transmission Control Module (TCM) |
| F23 | – | – |
| F24 | 5 | Rear fog lamp (right side) |
| F25 | 5 | Rear fog lamp (left side) |
| F26 | – | – |
| F27 | – | – |
| F28 | – | – |
| F29 | – | – |
| F30 | – | – |
| F31 | 5 | Voltage module. Rain sensor. Passenger Airbag Deactivation (PAD) lamp |
| F32 | 25 | Driver door module |
| F33 | – | – |
| F34 | 10 | Fuel flap |
| F35 | – | – |
| F36 | 5 | Battery backed sounder |
| F37 | 5 | Road pricing (Singapore only) |
| F38 | 15 | Front screen washer |
| F39 | 25 | Rear door module (left side) |
| F40 | 5 | Clock. Door memory switch |
| F41 | – | – |
| F42 | 30 | Driver seat |
| F43 | 15 | Rear screen washer |
| F44 | 25 | Rear door module (right side) |
| F45 | 30 | Front passenger seat |
| F46 | – | – |
| F47 | 20 | Sunroof and sunblind module |
| F48 | 15 | Trailer connector |
| F49 | – | – |
| F50 | – | – |
| F51 | 5 | Steering wheel switches |
| F52 | 20 | Cigar lighter (front) |
| F53 | – | – |
| F54 | – | – |
| F55 | 20 | Auxiliary socket (rear console) |
| F56 | 10 | Restraints Control Module (RCM) |
| F57 | 10 | Battery saver circuits. Vanity mirror lamp. Glove box lamp. Upper console lamp |
| F58 | – | – |
| F59 | – | – |
| F60 | 5 | Occupant Classification Sensor Control Module (OCSCM) |
| F61 | 5 | Immobiliser Antenna Unit (IAU) |
| F62 | 10 | Climate control module |
| F63 | 20 | Auxiliary socket (luggage compartment) |
| F64 | – | – |
| F65 | – | – |
| F66 | 5 | On Board Diagnostic (OBD) connector |
| F67 | – | – |

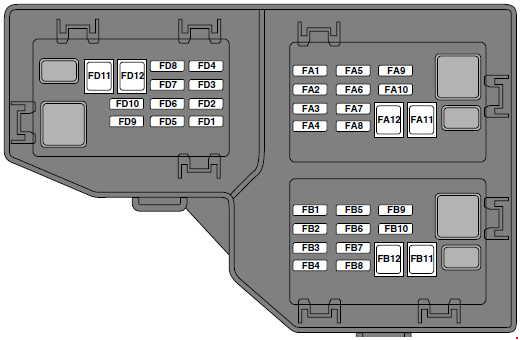

Luggage compartment fuse box (up to 2012)
| No. |
A |
Circuits protected |
| FA1 | 25 | Driver door controls |
| FA2 | 25 | Passenger door controls |
| FA3 | 25 | Rear left door controls |
| FA4 | 25 | Rear right door controls |
| FA5 | – | – |
| FA6 | 15 | Rear accessory socket |
| FA7 | 30 | Heated rear screen |
| FA8 | – | – |
| FA9 | 15 | Trailer power |
| FA10 | 30 | Driver electric seat |
| FA11 | 40 | Trailer power |
| FA12 | – | – |
| FB1 | 10 | Park distance control |
| FB2 | – | – |
| FB3 | 15 | Driver’s seat heater |
| FB4 | 15 | Front passenger’s seat heater |
| FB5 | 15 | Caravan fridge |
| FB6 | 15 | Electronic centre differential |
| FB7 | – | – |
| FB8 | – | – |
| FB9 | 30 | Passenger electric seat |
| FB10 | – | – |
| FB11 | – | – |
| FB12 | – | – |
| FD1 | 10 | Audio system and touch screen |
| FD2 | – | – |
| FD3 | 10 | DAB |
| FD4 | 5 | Bluetooth telephone |
| FD5 | – | – |
| FD6 | 10 | Audio unit |
| FD7 | – | – |
| FD8 | – | – |
| FD9 | 30 | Audio amplifier |
| FD10 | – | – |
| FD11 | – | – |
| FD12 | – | – |
Luggage compartment fuse box (from 2013)
| No. |
A |
Circuits protected |
| FB1 | 15 | Electronic centre differential |
| FB2 | 15 | Caravan fridge |
| FB3 | 15 | Driver seat heater |
| FB4 | 15 | Front passenger seat heater |
| FB5 | 5 | Auxiliary heater control |
| FB6 | – | – |
| FB7 | – | – |
| FB8 | 10 | Instrument panel |
| FB9 | 5 | Heating and ventilation system |
| FB10 | – | – |
| FB11 | – | – |
| FB12 | – | – |
| FD1 | 10 | Audio system. Touch screen |
| FD2 | 15 | Audio system |
| FD3 | 10 | Digital radio |
| FD4 | – | – |
| FD5 | 5 | Electric seat switches |
| FD6 | 30 | Electric Park Brake (EPB) |
| FD7 | 15 | Rear wiper |
| FD8 | 30 | EPB |
| FD9 | – | – |
| FD10 | 5 | Audio amplifier |
| FD11 | 40 | Audio amplifier |
| FD12 | – | – |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
