Lincoln Blackwood (2002) – fuse box diagram
Year of production: 2002

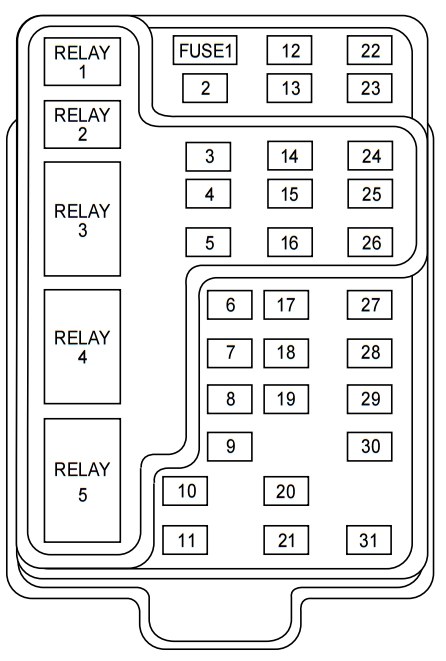

Passenger compartment fuse panel
| Fuse/relay | Ampere rating [A] | Description |
| 1 | 15 | Audio |
| 2 | 5 | Powertrain Control Module (PCM), Cluster |
| 3 | 20 | Cigar lighter, Data link connector |
| 4 | 5 | Power mirror switch, Mirror turn signal relays |
| 5 | 15 | Speed control module, Reverse lamp, Climate mode switch, Daytime Running Lamps (DRL) relay, Digital Transmission Range (DTR) sensor |
| 6 | 5 | Cluster, Brake shift interlock solenoid, GEM |
| 7 | — | Not used |
| 8 | 5 | Radio, Remote entry module, GEM, In-vehicle entertainment system (SuperCrew only) |
| 9 | — | Not used |
| 10 | — | Not used |
| 11 | 30 | Front washer pump relay, Wiper run/park relay, Wiper HI/LO relay, Windshield wiper motor |
| 12 | — | Not used |
| 13 | 20 | Stop lamp switch (Lamps), Turn/Hazard flasher |
| 14 | 15 | Battery saver relay, Interior lamp relay |
| 15 | 5 | Stop lamp switch (speed control, brake shift interlock), GEM, Rear Anti-lock Brake System (RABS) module |
| 16 | 20 | Headlamps (hi beams), Cluster (hi beam indicator) |
| 17 | — | Not used |
| 18 | 5 | Instrument illumination (dimmer switch power) |
| 19 | — | Not used |
| 20 | 5 | Audio, GEM, PCM, Transmission range sensor |
| 21 | 15 | DTR sensor, Clutch switch, Starter relay, I/P fuse 20 |
| 22 | 10 | Air bag module, Passenger air bag deactivation module |
| 23 | 10 | Trailer tow battery Charge relay, Turn/Hazard flasher, 4×4 solenoids, 4×4 relays, Overhead console, 4–Wheel Anti-lock Brake System (4WABS) module, EC mirror, Heated seats |
| 24 | 10 | Function selector switch assembly |
| 25 | 10 | Heated mirrors |
| 26 | 10 | Right-hand low beam headlamp |
| 27 | 5 | Foglamp relay and foglamp indicator, Main light switch (upstream) |
| 28 | 10 | Left-hand low beam headlamp |
| 29 | 5 | Autolamp module, Transmission overdrive control switch, Central security module, Beltminder |
| 30 | 30 | Passive Anti-theft transceiver, Cluster, Ignition coils, PCM relay, Coil on plugs, Radio noise capacitor, ECC diode |
| 31 | — | Not used |
| Relay 1 | — | Interior lamp relay |
| Relay 2 | — | Battery saver relay |
| Relay 3 | — | Not used |
| Relay 4 | — | One-touch down window relay |
| Relay 5 | — | Accessory delay relay |

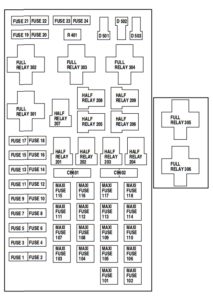

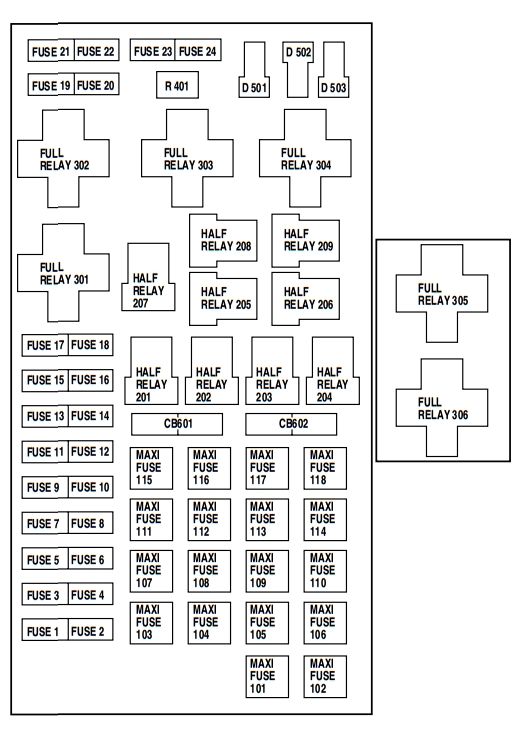

Power distribution box
| Fuse/relay | Ampere rating [A] | Description |
| 1 | 20* | Power Point |
| 2 | 30* | Powertrain Control Module |
| 3 | 30* | Main light switch, Headlamp relay, Multifunction switch |
| 4 | 20* | Console power point (Harley Davidson only) |
| 5 | 20* | Trailer tow back-up/park lamps |
| 6 | 15 | Main light switch, Park lamp relay |
| 7 | 20* | Horn |
| 8 | 15* | Power door locks, Central Security Module (CSM), Lock relays (not used on SuperCrew) |
| 9 | 15* | Daytime Running Lamps (DRL), Fog lamps |
| 10 | 20* | Fuel pump |
| 11 | 20* | Alternator field |
| 12 | 20* | Rear auxiliary power point (SuperCrew only) |
| 13 | 15* | A/C clutch |
| 14 | — | Not used |
| 15 | 10* | Running board lamps |
| 16 | 15* | Bi-fuel injector module, fuel selector switch and alternative fuel injectors (Bi-fuel vehicles only) |
| 17 | — | Not used |
| 18 | 15* | PCM, Fuel injectors, Fuel pump relay, Mass air flow sensor |
| 19 | 10* | Trailer/Camper adapter (right stop/turn lamp) |
| 20 | 10* | Trailer/Camper adapter (left stop/turn lamp) |
| 21 | — | Not used |
| 22 | — | Not used |
| 23 | 15* | HEGO sensor, Automatic transmission |
| 24 | — | Not used |
| 101 | 30** | Trailer tow battery charge |
| 102 | 50/20** | Four-wheel Anti-lock Brake System (4WABS) module/Rear-wheel Anti-lock Brake System (RABS) module, Ignition switch |
| 103 | 50** | Central junction box |
| 104 | 30** | 4×4 shift motor & clutch |
| 105 | 40** | Climate control front blower |
| 106 | 20** | Intercooler pump (supercharged engine only) |
| 107 | — | Not used |
| 108 | 30** | Trailer tow electric brake |
| 109 | — | Not used |
| 110 | 30** | Accessory delay relay (Not used on SuperCrew) |
| 111 | 40** | Ignition switch battery feed (start and run circuits) |
| 112 | 30** | Drivers power seat, Adjustable pedal switch |
| 113 | 40** | Ignition switch battery feed (run and accessory circuits) |
| 114 | — | Not used |
| 115 | 20** | Power door locks (SuperCrew only) |
| 116 | 40** | Heated backlight |
| 117 | 40** | Audiophile radio (SuperCrew only) |
| 118 | 30** | Heated seats |
| 201 | — | Trailer tow park lamp relay |
| 202 | — | Front wiper run/park relay |
| 203 | — | Trailer tow backup lamp relay |
| 204 | — | A/C clutch relay |
| 205 | — | Horn relay |
| 206 | — | Fog lamp relay |
| 207 | — | Front washer pump relay |
| 208 | — | Intercooler pump relay (supercharged engine only) |
| 209 | — | Front wiper HI/LO relay |
| 301 | — | Fuel pump relay |
| 302 | — | Trailer tow battery charge relay |
| 303 | — | Heated backlight relay (SuperCrew only) |
| 304 | — | PCM relay |
| 305 | — | Fuel pump HI/LO relay (supercharged engine only) |
| 306 | — | Inertia switch relay (supercharged engine only) |
| 401 | — | Not used |
| 501 | — | PCM diode |
| 502 | — | A/C compressor diode |
| 503 | — | Not used |
| 601 | CB | Power windows, Moonroof (SuperCrew only) |
| 602 | — | Not used |
| *Mini fuses
**Maxi fuses |
||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
