Lincoln Continental (2017 – 2019) – fuse box diagram
Year of production: 2017, 2018, 2019

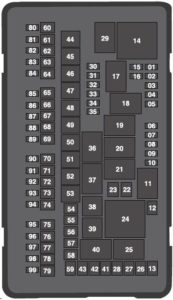

Engine Compartment Fuse Box
| No, | A | Protected components |
| 1 | 20 | Powertrain control module power |
| 2 | 20 | Engine emissions (MIL) |
| 3 | 20 | A/C clutch control relay coil, VACC, Active grill shutters, Cooling fan relays, All-wheel drive module (2,7L and 3.7L engines) |
| 4 | 20 | Ignition coils (3.7L engine) |
| 5 | – | Not used |
| 6 | 15 | Fuel injectors (3.7L engine) |
| 7 | 5 | Rear recline relay box |
| 8 | – | Not used |
| 9 | – | Not used |
| 10 | – | Not used |
| 12 | – | Not used |
| 13 | 40 | Rear seat recline |
| 15 | 20 | Horn |
| 16 | 10 | A/C clutch |
| 22 | 30 | Electric cooling fan |
| 23 | – | Not used |
| 26 | 30 | Anti-lock brake system valves |
| 27 | – | Not used |
| 28 | 30 | Rear climate controlled seats |
| 29 | – | Run/start relay |
| 30 | – | Not used |
| 31 | 10 | Electric power-assisted steering, Electric parking brake |
| 32 | 10 | Anti-lock brake system module |
| 33 | 10 | Powertrain control module |
| 34 | 10 | Blind spot information system, Adaptive cruise control, Front view camera, 360 degree camera module, Rear camera, Transmission range control module |
| 35 | – | Not used |
| 41 | 40 | Right heated windshield |
| 42 | 40 | Blower motor |
| 43 | – | Not used |
| 44 | 50 | Body control module/voltage quality module bus |
| 45 | – | Not used |
| 46 | 50 | Electric cooling fan |
| 47 | 50 | Electric cooling fan |
| 48 | 50 | Body control module RP1 bus |
| 49 | 40 | Torque vectoring (3.0L engine) |
| 50 | 50 | Body control module RP2 bus |
| 51 | – | Not used |
| 52 | 60 | Anti-lock brake system pump |
| 53 | 40 | Adaptive front steering |
| 54 | 40 | Left heated windshield |
| 55 | 40 | Heated rear window |
| 56 | 40 | Power inverter |
| 57 | 30 | Power deck lid module, Manual deck lid latch |
| 58 | – | Not used |
| 59 | – | Not used |
| 60 | 30 | Fuel pump |
| 61 | – | Not used |
| 62 | 20 | Power point 2A |
| 63 | 30 | Power seat control module, Front heated seats |
| 64 | – | Not used |
| 65 | 30 | Fuel pump 2 |
| 66 | 30 | Passenger power seat |
| 67 | 20 | Power point 1B |
| 68 | 15 | Auxiliary blower |
| 69 | 20 | Power point 1A |
| 70 | – | Not used |
| 71 | – | Not used |
| 72 | 30 | Driver power seat module |
| 73 | – | Not used |
| 74 | 25 | Wiper motor |
| 75 | – | Not used |
| 76 | 20 | Not used (spare) |
| 77 | – | Not used |
| 78 | 30 | Starter |
| 79 | 20 | Auxiliary transmission pump (2.0L engine with start-stop) |
| 80 | – | Not used |
| 81 | 5 | USB smart charge – passenger side |
| 82 | 5 | USB smart charge – console |
| 83 | 20 | Electronic door latch (left rear) |
| 84 | 5 | USB smart charge – driver side |
| 85 | 20 | Electronic door latch (right front) |
| 86 | 20 | Electronic door latch (right rear) |
| 87 | 15 | Transmission range control module |
| 88 | 5 | Rear recline |
| 89 | 20 | Electronic door latch (left front) |
| 90 | 10 | Powertrain control module relay keep alive |
| 91 | 10 | Brake on/off switch |
| 92 | 15 | Front multi-contour seat module |
| 93 | 15 | Rear multi-contour seats |
| 94 | 20 | Right hand side high intensity discharge headlamp |
| 95 | 20 | Left hand side high intensity discharge headlamp |
| 96 | 10 | Wiper park heater |
| 97 | 10 | Alternator sense line |
| 98 | 5 | Rain sensor |
| 99 | – | Not used |
| Relay | ||
| 11 | Torque vectoring (3.0L engine) | |
| 14 | Powertrain control module | |
| 17 | Not used | |
| 18 | Not used | |
| 19 | Heated rear window | |
| 20 | Electric cooling fan | |
| 21 | Electric cooling fan | |
| 24 | Not used | |
| 25 | Blower motor | |
| 36 | Electric cooling fan | |
| 37 | Rear seat recline | |
| 38 | A/C compressor clutch | |
| 39 | Horn | |
| 40 | Not used | |

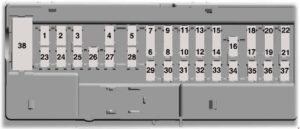

Passenger Compartment Fuse Box
| No, | A | Protected components |
| 1 | – | Not used |
| 2 | 7,5 | Driver seat switch, Passenger seat switch |
| 3 | 20 | Driver unlock relay |
| 4 | 5 | Not used (spare) |
| 5 | 20 | Subwoofer amplifier, Revel digital signal processing amplifier |
| 6 | – | Not used |
| 7 | – | Not used |
| 8 | 10 | Security horn |
| 9 | 10 | Rear seat entertainment module |
| 10 | 5 | Telematics module, Power decklid module |
| 11 | 5 | Keypad, Outside lock switch, Combined security sensor module |
| 12 | 7,5 | Front control interface module (climate control), Gear shift module, Rear climate control module |
| 13 | 7,5 | Instrument cluster, Smart data link, Steering column control module |
| 14 | 10 | Restraints control module |
| 15 | 10 | Smart datalink connector power |
| 16 | – | Decklid release relay |
| 17 | 5 | Not used (spare) |
| 18 | 5 | Push button start switch |
| 19 | 7,5 | LED heads up display |
| 20 | 7,5 | Headlamp control module |
| 21 | 5 | Humidity sensor |
| 22 | 5 | Occupant classification sensor |
| 23 | 10 | Delayed accessory power, Left front window switch, Moonroof, Rear window power sunshade module, DC inverter |
| 24 | 20 | Central lock relay |
| 25 | 30 | Left front door zone module |
| 26 | 30 | Right front door zone module |
| 27 | 30 | Moonroof |
| 28 | 20 | Revel digital signal processing amplifier |
| 29 | 30 | Left rear door zone module |
| 30 | 30 | Right rear door zone module |
| 31 | 15 | Column memory module |
| 32 | 10 | SYNC, Radio frequency receiver |
| 33 | 20 | Radio, Remote CD mechanism |
| 34 | 30 | Run/start relay |
| 35 | 5 | Restraint control module |
| 36 | 15 | Lane keeping system module, Auto high beam, Electrochromic mirrors, Rear heated seats, Vehicle dynamics module |
| 37 | 20 | Heated steering wheel, Steering effort control module, Steering angle control module |
| 38 | 30 | Left hand front window motor, Rear power window motors |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
