Lincoln Continental mk9 (1996 – 1998) – fuse box diagram
Year of production: 1996, 1997, 1998

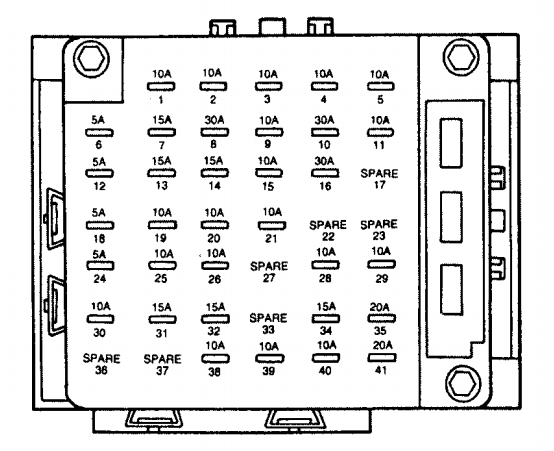

The instrument panel fuse
| Fuse | Ampere rating [A] | Description |
| 1 | 10 | And-theft indicator light, PWM dimming output for microphone illumination, ashtray illumination (R & L rear door),heated seat switches, heated backlight switch, EATC control panel, message center switches, cigar lighter, console shift illumination, navigation display module, and navigation switches |
| 2 | 10 | Luxury radio, Clock (non-navigational), Cellular phone |
| 3 | 10 | Multi-function switch |
| 4 | 10 | Run/Accessory sensor (luxury radio), Cellular phone, Run/Accessory sensor (LCM), Window switches backlight RF, LR, RR)*, Compass, E/C mirror, Stand alone clock, Door lock switches backlight |
| 5 | 10 | Virtual image cluster, Light sensor (Autolamp), Traction Assist OFF switch, Airbag diagnostic, Luxury radio FCU, Run/Start sensor (LCM) |
| 6 | 5 | SCP networ |
| 7 | 15 | Right front turn lamp, Right turn indicator, HI beam switch, Right and left front side marker lamps, Right and left front park lamps, Right and left front tail lamps, Right rear stop/turn lamps |
| 8 | 30 | Fuel filler, Trunk solenoid, Navigation system power |
| 9 | 10 | Blower motor relay coil, EATC control, Airbag diagnostic |
| 10 | 30 | Windshield wiper motor, Windshield wiper control module (washer pump motor) |
| 11 | 10 | PCM power relay coil, Ignition coil |
| 12 | 5 | SCP networ |
| 13 | 15 | Stand alone clock illumination, Right and left rear side marker lamps, License lamps, Right and left tail lamps (on decklid), Left rear stop/turn lamps, Left turn indicator, Left front turn lamp |
| 14 | 15 | Front cigar lighter |
| 15 | 10 | Navigation display, Navigation module, Heated seat control switches |
| 16 | 30 | Power moonroof switch, Moonroof motor |
| 17 | — | Not used |
| 18 | 5 | SCP network |
| 19 | 10 | LH low beam |
| 20 | 10 | Multi-function switch (Flash to pass and hazard signal to LCM), LH & RH cornering lamps |
| 21 | 10 | ABS control module |
| 22 | — | Not used |
| 23 | — | Not used |
| 24 | 5 | SCP network |
| 25 | RH low beam | |
| 26 | 10 | Instrument cluster power, EATC power |
| 27 | — | Not used |
| 28 | 10 | Shift interlock, VDM logic power, Instrument cluster logic power, Rear defrost control |
| 29 | 10 | Luxury RCU station signal, Navigation module signal |
| 30 | 10 | Heated mirror right, Heated mirror left |
| 31 | 15 | Voltage dimming for FCU and stand alone clock, Courtesy lamps in the doors Rear reading lamps, Map lamps, RH & LH I/P courtesy lamps, Engine compartment lamp, Visor lamps, Storage bin lamp (5 passenger only), Luggage compartment lamp, Glove box lamp |
| 32 | 15 | Speed control brake deact switch, Stop lamp switch |
| 33 | — | Not used |
| 34 | 15 | Back-up L & R lamp ext., DRL module (Canada only), EATC clutch, Speed control logic · IMRC |
| 35 | 20 | L & R heated seat module power |
| 36 | — | Not used |
| 37 | — | Not used |
| 38 | 10 | OBD 11 scan tool connection |
| 39 | 10 | DSM logic power, DDM logic power, Door lock switches, Keyless keypad switch, Memory set switch, Driver seat switch, Power mirror switch |
| 40 | 10 | Blend door actuator, LTPS |
| 41 | 20 | Door locks (DDM) |

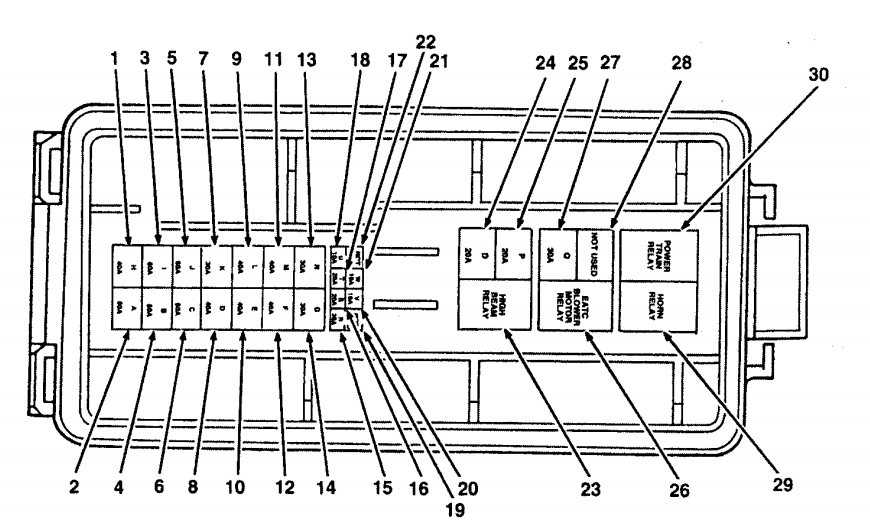

High Current Fuses
| Fuse | Maci-fuse ampere rating [A] | Description |
| 1 | 40 | EATC blower motor |
| 2 | 60 | Engine cooling fans |
| 3 | 60 | Air suspension compressor relay |
| 4 | 60 | ABS module, EVAC and fill |
| 5 | 60 | Fuse panel to LCM, OBD 11 |
| 6 | 60 | Fuse panel to LCM CD player |
| 7 | 30 | VDM |
| 8 | 40 | Heated mirrors, Heated backlight |
| 9 | 40 | DDM, LH power windows, Door locks |
| 10 | 40 | RH power windows |
| 11 | 40 | Ignition switch to fuse panel |
| 12 | 40 | Ignition switch to fuse panel |
| 13 | 30 | DSM, Heated seats, Driver 4-way power lumbar seats |
| 14 | 30 | Passenger power seat, Passenger 4-way power |
| 15 | 30 | Luxury radio, Sub woofer amplifier, CD player |
| 16 | 20 | HI beam |
| 17 | 20 | Horn |
| 18 | 10 | Air bag |
| 19 | — | Not used |
| 20 | 10 | PCM KAPWR |
| 21 | 10 | Alternator sensor, Alternator field supply |
| 22 | — | Not used |
| 23 | Relay | HI beam headlamps relay |
| 24 | 20 | Fuel pump |
| 25 | 20 | Thermactor pump |
| 26 | Relay | EATC blower motor relay |
| 27 | 30 | PCM, STC |
| 28 | — | Not used |
| 29 | Relay | Horns relay |
| 30 | Relay | Powertrain control module relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
