Lincoln MKT (2010 – 2012) – fuse box diagram
Year of peoduction: 2010, 2011, 2012

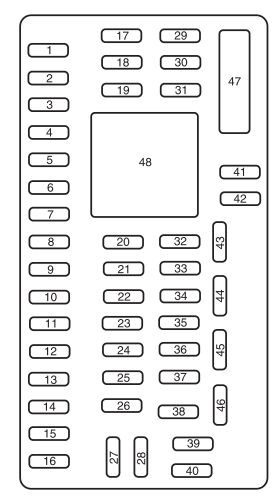

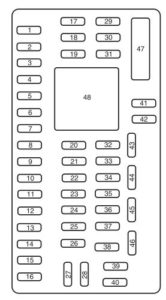

Passenger compartment fuse panel
| No. | A | Protected Components |
| 1 | 30 | Right rear smart window |
| 2 | 15 | Refrigerator |
| 3 | 15 | Driver seat switch, 2nd row lumbar switches |
| 4 | 30 | Right front smart window |
| 5 | 10 | Brake transmission shift interlock, 3rd row power fold module |
| 6 | 20 | Turn signals |
| 7 | 10 | Low beam headlamps (left) |
| 8 | 10 | Low beam headlamps (right) |
| 9 | 15 | Interior lights, Cargo lamps |
| 10 | 15 | Backlighting, Puddle lamps |
| 11 | 10 | All wheel drive (AWD) |
| 12 | 7.5 | Intelligent access (IA) |
| 13 | 5 | IA receiver, Exterior mirror switch, Steering column position switch, Driver seat module, Driver door module, Keypad |
| 14 | 10 | Power liftgate module, SYNC®, Rear entertainment |
| 15 | 10 | Climate control, Electronic finish panel |
| 16 | 15 | Navigation display, ALM, Auxiliary climate control |
| 17 | 20 | Global window open |
| 18 | 20 | Amplifier |
| 19 | 25 | Amplifier |
| 20 | 15 | Data link connector (OBD-2), 2nd row power fold seat motors |
| 21 | 15 | Fog lamps |
| 22 | 15 | Park lamps, License plate lamps, Illuminated liftgate applique |
| 23 | 15 | High beam headlamps, Auto high beam relay, Fog lamp deactivation relay |
| 24 | 20 | Horn |
| 25 | 10 | Demand lamps/interior lamps, 2nd row power fold seats, Powertrain control module (GTDI) wake-up, 3rd row seat relay |
| 26 | 10 | Instrument panel cluster, Heads up display |
| 27 | 20 | Ignition Switch, IA |
| 28 | 5 | Radio mute |
| 29 | 5 | Instrument panel cluster |
| 30 | 5 | Transmission shifter |
| 31 | 10 | Steering angle sensor, Heads up display |
| 32 | 10 | Restraint control module |
| 33 | 10 | Adaptive lighting module |
| 34 | 5 | Front body run/start feeds |
| 35 | 10 | Body module run/start feeds |
| 36 | 5 | Not used (spare) |
| 37 | 10 | Powertrain control module run/start, Fuel relay |
| 38 | 20 | Trailer tow park lamps |
| 39 | 20 | Audio control module |
| 40 | 20 | Cigarette lighter |
| 41 | 15 | Delayed accessory feeds |
| 42 | 10 | Not used (spare) |
| 43 | 10 | Auxiliary blower, Rear wiper, Rain sensor |
| 44 | 10 | Trailer tow backup lamps |
| 45 | 5 | Front wiper, Front blower, Wiper relay |
| 46 | 7.5 | Occupant classification sensor (OCS), Passenger airbag deactivation indicator (PADI), Front control interface module |
| 47 | 30 | Circuit Breaker: Not used |
| Relay | ||
| 48 | Delayed accessory | |

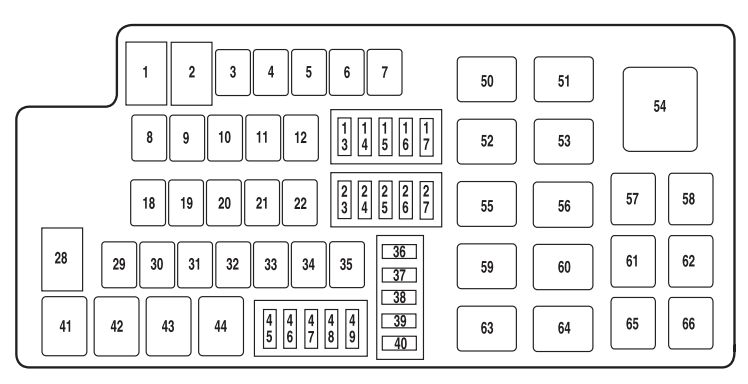

Engine Compartment Fuse Box
| No. | A | Protected Components |
| 1 | – | Not used |
| 2 | – | Not used |
| 3 | 30 | Trailer tow brake controller |
| 4 | 40 | Wiper relay (front and rear) |
| 5 | 30 | Passenger power seat |
| 6 | 30 | 110V AC inverter |
| 7 | 30 | Rear climate control seat module |
| 8 | 30 | Front climate control seat module |
| 9 | 40 | Anti-lock brake system (ABS) pump |
| 10 | 30 | Starter |
| 11 | 30 | Powertrain control module (PCM) vehicle power |
| 12 | 20 | ABS valve |
| 13 | 20 | Right high intensity discharge (HID) headlamp |
| 14 | 10 | Brake on/off (BOO) switch, Adaptive cruise relay |
| 15 | 15 | Automatic high beams, Adaptive cruise control |
| 16 | 20 | Left HID headlamp |
| 17 | 10 | Alternator sensor |
| 18 | 30 | 3rd row power seats |
| 19 | 20 | Front console power point |
| 20 | 40 | Rear defroster, Heated mirrors |
| 21 | 20 | Rear console power point |
| 22 | 40 | Trailer tow battery charge, Trailer tow stop/turn lamps fuse 45 power |
| 23 | 10 | PCM keep alive power, Canister vent, Relay coil |
| 24 | 10 | A/C clutch |
| 25 | 20 | Rear power point |
| 26 | 15 | Backup lamps |
| 27 | 15 | Fuel relay (Fuel pump driver module, Fuel pump) |
| 28 | 80 | Cooling fan |
| 29 | 30 | Left rear smart window, Panoramic roof module, Power sunshade module |
| 30 | 30 | Left front smart window |
| 31 | 40 | Auxiliary blower motor |
| 32 | 30 | Driver seat motor, Memory motor power |
| 33 | 30 | Run/start relay |
| 34 | 30 | Power liftgate |
| 35 | 40 | Front A/C blower |
| 36 | 25 | Rear wiper module (secondary fuse) |
| 37 | 15 | Washer pump |
| 38 | 10 | Trailer tow backup lamps |
| 45 | 20 | Trailer tow stop/turn lamps (secondary fuse) |
| 46 | 15 | PCM vehicle power 2, Vehicle power 3 |
| 47 | 20 | PCM vehicle power 1 |
| 48 | 15 | PCM vehicle power 4 (coil on plugs) |
| 49 | 10 | Heated mirrors (secondary fuse) |
| Diode | ||
| 39 | Fuel pump motor diode | |
| 40 | One touch integrated start diode | |
| Relay | ||
| 41 | Trailer tow park lamp | |
| 42 | Trailer tow stop/turn lamp (left) | |
| 43 | Trailer tow stop/turn lamp (right) | |
| 44 | Backup lamps relay | |
| 50 | Blower motor | |
| 51 | Fog lamp deactivation | |
| 52 | Starter | |
| 53 | Adaptive cruise control | |
| 54 | 3rd row power seats | |
| 55 | Wipers (front) | |
| 56 | Rear window defroster, Heated mirrors | |
| 57 | Not used | |
| 58 | Not used | |
| 59 | Auxiliary blower motor | |
| 60 | Trailer tow battery charge | |
| 61 | Refrigerator | |
| 62 | Automatic high beams | |
| 63 | Run/start | |
| 64 | PCM | |
| 65 | A/C clutch | |
| 66 | Fuel pump | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
