Lincoln MKT (2013 – 2019) – fuse box diagram
Year of peoduction: 2013, 2014, 2015, 2016, 2017, 2018, 2019

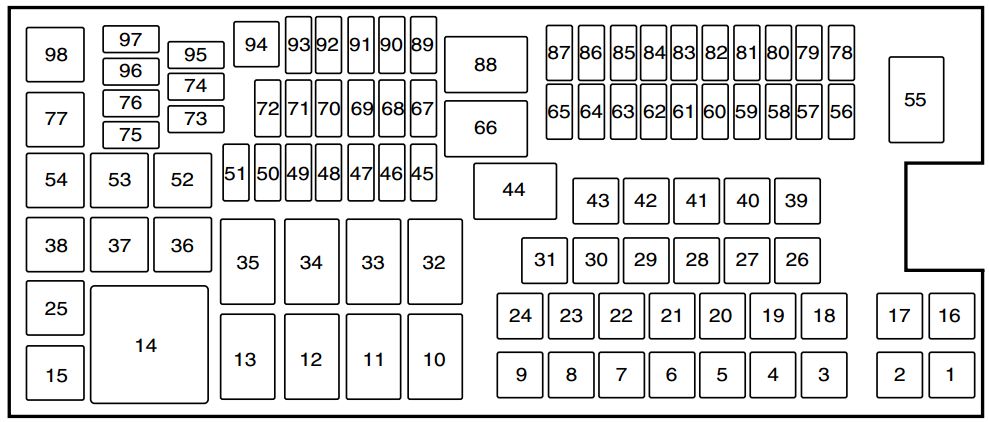

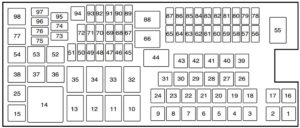

Engine Compartment Fuse Box
The power distribution box is located in the engine compartment.
| No. | A | Protected components |
| 1 | 40 | Fan relay 2 |
| 2 | 40 | Fan relay 1 |
| 3 | 30 | Trailer brake control module |
| 4 | 30 | Wipers, Washer pump |
| 5 | 50 | Anti-lock brake system pump |
| 6 | 50 | B+ #1 access circuit (limousine/livery) |
| 7 | 30 | Power liftgate |
| 8 | 20 | Moonroof, Power sunshade |
| 9 | 20 | 2nd row console power point |
| 16 | 40 | B+ #2 access circuit (limousine/livery) |
| 17 | 30 | 110V AC power point |
| 18 | 40 | Front blower motor |
| 19 | 30 | Starter motor |
| 20 | 20 | Inside bin power point |
| 21 | 20 | Instrument panel power point / cigar lighter |
| 22 | 30 | 3rd row seat module |
| 23 | 30 | Memory module |
| 24 | 30 | non-Limousine/Livery: Trailer tow battery charge |
| 40 | Limousine: Vacuum pump relay | |
| 26 | 40 | Rear window defroster, Heated mirrors |
| 27 | 20 | Cargo power point |
| 28 | 30 | Front climate controlled seats |
| 29 | 30 | Rear climate controlled seats. |
| 30 | 20 | Rear heated seats |
| 31 | 25 | Electronic fan relay 3 |
| 39 | 30 | Auxiliary blower motor |
| 40 | 30 | Left front window |
| 41 | 30 | Left rear window |
| 42 | 30 | Passenger power seat |
| 43 | 20 | Anti-lock brake system valves |
| 45 | 5 | Rain sensor |
| 46 | 5 | EcoBoost: |
| 47 | 15 | Washer pump |
| 48 | 10 | Front park lamps |
| 49 | — | Not used |
| 50 | 10 | Heated mirrors |
| 51 | 5 | 3.7L engine: Powertrain control module — Injector power monitor |
| 56 | 30 | Fuel injectors, Fuel pump relay |
| 57 | 20 | Left high-intensity discharge headlamps |
| 58 | 10 | Alternator sensor |
| 59 | 10 | Brake on/off switch |
| 60 | 10 | Trailer tow back-up lamps |
| 61 | 20 | B+ #6 access circuit (limousine/livery) |
| 62 | 10 | A/C clutch |
| 63 | 15 | Trailer tow stop/turn lamps |
| 64 | 15 | Rear wipers |
| 65 | 20 | B+ #7 access circuit (limousine/livery) |
| 67 | 20 | Vehicle power #2 – Oxygen sensor heater, Mass airflow sensor, Variable camshaft timing solenoid, Canister vent solenoid, Canister purge solenoid |
| 68 | 20 | Vehicle power #4 (ignition coils) |
| 69 | 20 | Vehicle power #1 (PCM) |
| 70 | 15 | Vehicle power #3 (coil) – A/C clutch relay, Fan control relays, Variable air conditioning compressor, Auxiliary transmission warmup, Turbo charge waste-gate control, Electronic compressor bypass valve (for turbo charger), All-wheel drive module, Positive crackcase ventilation heater |
| 71 | — | Not used |
| 72 | 5 | Limousine/livery run/accessory |
| 73 | 5 | Limousine/livery battery saver |
| 74 | — | Not used |
| 75 | — | Not used |
| 76 | — | Not used |
| 78 | 20 | Right high-intensity discharge headlamps |
| 79 | 10 | Adaptive cruise control |
| 80 | 30 | B+ #3 access circuit (limousine/livery) |
| 81 | 15 | B+ #4 access circuit (limousine/livery) |
| 82 | 15 | Rear washer |
| 83 | — | Not used |
| 84 | 20 | Trailer tow park lamps |
| 85 | 15 | B+ #5 access circuit (limousine/livery) |
| 86 | 5 | Powertrain control module — Keep-alive power, Powertrain control module relay, Canister vent solenoid (3.7L engine) |
| 87 | 5 | Run/start |
| 89 | 10 | Anti-lock brake system module, Adaptive headlamps module |
| 90 | 10 | Powertrain control module run/start |
| 91 | 10 | Adaptive cruise control |
| 92 | 5 | Front blower relay coil, Power steering module |
| 93 | 5 | Auxiliary blower, Rear defroster, Battery charge / vacuum pump relays |
| 94 | 30 | Body control module run/start |
| 95 | — | Not used |
| 96 | — | Not used |
| 97 | — | Not used |
| Relay | ||
| 10 | 3rd row power seats | |
| 11 | Heated rear window | |
| 12 | Trailer tow battery charge | |
| 13 | Starter | |
| 14 | Cooling fan #2 | |
| 15 | Fuel pump | |
| 25 | Not used | |
| 32 | Auxiliary blower | |
| 33 | Cooling fan #1 | |
| 34 | Front blower | |
| 35 | Cooling fan (series) | |
| 36 | Not used | |
| 37 | Trailer tow right-hand stop/turn lamps | |
| 38 | Trailer tow reverse lamps | |
| 44 | Windshield washer | |
| 52 | Not used | |
| 53 | Trailer tow left-hand stop/turn lamps | |
| 54 | Not used | |
| 55 | Wipers | |
| 66 | Powertrain control module – vehicle power | |
| 77 | Trailer tow park lamps | |
| 88 | Run/start | |
| 98 | A/C clutch | |

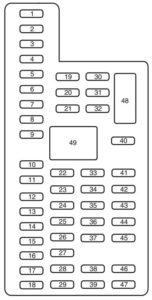

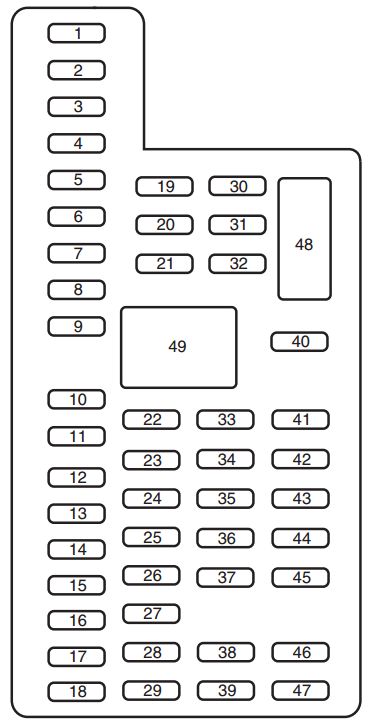

Passenger compartment fuse box
The fuse panel is located under the instrument panel to the left of the steering wheel.
| No. | A | Protected components |
| 1 | 30 | Passenger side rear window |
| 2 | 15 | Memory seat, Second row seats |
| 3 | 30 | Passenger side front window |
| 4 | 10 | Battery saver relay (interior demand lamps and seat power), Limousine battery saver |
| 5 | 20 | Smart amplifier (’13-’15), Audio amplifier (’16-’19), Active noise control module (’16-’19) |
| 6 | 5 | Rear climate control, Rear seat entertainment module (livery only), USB power outlet |
| 7 | 7.5 | Driver door module, Driver seat module, Keypad |
| 8 | 10 | Power liftgate |
| 9 | 10 | SYNC®, Electronic finish panel, Radio transceiver module |
| 10 | 10 | Run/accessory relay, Front wiper motor relay, Limousine run/accessory |
| 11 | 10 | Intelligent access module, Heads-up display |
| 12 | 15 | Interior lighting, Puddle lamps, Backlighting |
| 13 | 15 | Right turn lamps, Right rear stop/turn lamps, Right mirror turn signal |
| 14 | 15 | Left turn lamps, Left rear stop/turn lamps, Left mirror turn signal |
| 15 | 15 | Center high mounted stop lamp, Backup lamp |
| 16 | 10 | Low beam headlamps (right) |
| 17 | 10 | Low beam headlamps (left) |
| 18 | 10 | 3rd row power seats, Start button run indicator, Keypad illumination, Brake shift interlock, Powertrain control module wake-up |
| 19 | 20 | Smart amplifier, Subwoofer amplifier |
| 20 | 20 | Not used (spare) |
| 21 | 10 | ’17-’19: Extended power module |
| 22 | 20 | Horn relay |
| 23 | 15 | Steering wheel control module, Instrument cluster |
| 24 | 15 | Datalink connector, Steering wheel control module |
| 25 | 15 | Not used (spare) |
| 26 | 5 | Push button start switch |
| 27 | 20 | Intelligent access module |
| 28 | 15 | Not used (spare) |
| 29 | 20 | Radio, Global positioning system module (’13-’16) |
| 30 | 15 | Front park lamps, Trailer tow relay for park lamps, Front side markers |
| 31 | 5 | Trailer tow brake controller |
| 32 | 15 | Power window switches and motors, Power lock switches, Moonroof, 110V AC power point, Driver window/mirror switch, Rear seat switch (livery) |
| 33 | 10 | Suspension module |
| 34 | 10 | Blind spot monitor, Rear heated seat module, Reverse sensing system, Rearview camera, Interior mirror, Auto high beam/Lane departure warning/Lane keep assist module, Rear video camera |
| 35 | 5 | Heads-up display, Climate control humidity sensor, Overdrive cancel switch (limousine/livery) |
| 36 | 10 | Heated steering wheel |
| 37 | 10 | Refrigerator |
| 38 | 10 | Not used (spare) |
| 39 | 15 | High beam headlamps |
| 40 | 10 | Rear park lamps, License plate lamps, Rear light bar applique |
| 41 | 7.5 | ’13-’16: Occupant classification system, Restraints control module ’17-’19: Extended power module |
| 42 | 5 | Not used (spare) |
| 43 | 10 | Not used (spare) |
| 44 | 10 | Not used (spare) |
| 45 | 5 | Not used (spare) |
| 46 | 10 | Climate control module |
| 47 | 15 | Fog lamps, Fog lamp indicator |
| 48 | 30 | Circuit Breaker: Not used (spare) |
| Relay | ||
| 49 | Delayed accessory, Body control module | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
