Maruti Suzuki Alto 800 (1st generation – first generation 2010 – 2012) (Petrol) – fuse box diagram

25 July 2019 admin Alto, Maruti Suzuki 0

Maruti Suzuki Alto 800 (1st generation – first generation 2010 – 2012) (Petrol) – fuse box diagram

Fuses in the engine compartment

Maruti Suzuki Alto 800 - fuse box - engine compartment
Maruti Suzuki Alto 800 – fuse box – engine compartment
Fuse Ampere rating [A] Description
(1) — Blank
(2) — Blank
(3) — Blank
(4) — Air compressor relay
(5) 50 Ignition switch fuse
(6) 50 Light
(7) 15 Headlight (left) fuse
(8) 15 Headlight (right) fuse
(9) — Blank
(10) — Radiator fan relay
(11) — Blank
(12) — Blank
(13) — Blank
(14) 80 All electric load
(15) — Blank
(16) — Main relay
(17) 30 Radiator fan fuse
(18) 15 Fuel injection fuse
(19) 10 Air compressor fuse
(20) — Fuel pump relay
(21) — Blank
(22) — Blank
(23) — Blank

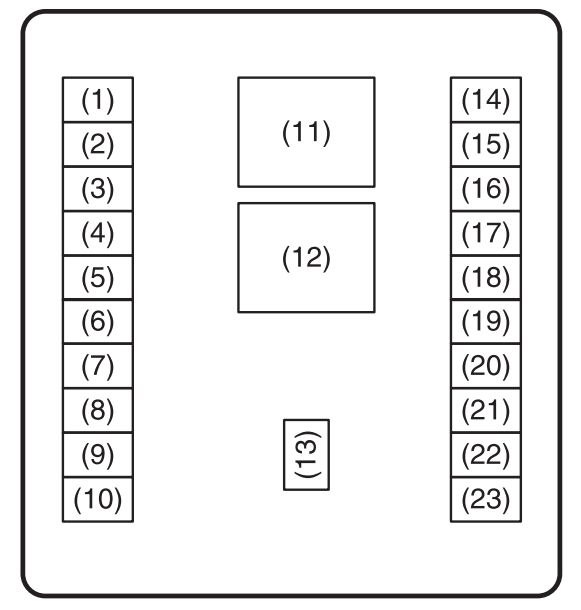

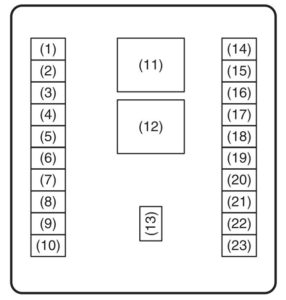

Fuses under the dash board

Maruti Suzuki Alto 800 - fuse box - passeneger compartment
Maruti Suzuki Alto 800 – fuse box – passeneger compartment
Fuse Ampere rating [A] Description
(1) — Blank
(2) 20 Door lock
(3) 15 Audio
(4) 10 Tail light
(5) 10 Stop light
(6) 30 Blower motor
(7) — Blank
(8) — Blank
(9) 15 Wiper
(10) 10 IG2 SIG
(11) 30 Power window
(12) — Blank
(13) 15 Accessory
(14) 15 Horn/Hazard
(15) 30 ST SIG
(16) 30 Power steering
(17) — Blank
(18) — Blank
(19) — Blank
(20) 7,5 Air bag
(21) 10 Meter
(22) 10 Turn signal light
(23) 15 Ignition switch

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
