Maruti Suzuki Celerio (CNG)- fuse box diagram

Fuse box in engine compartment

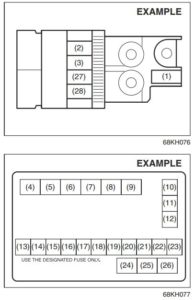

Suzuki Maruti Celerio - fuse box - engine compartment

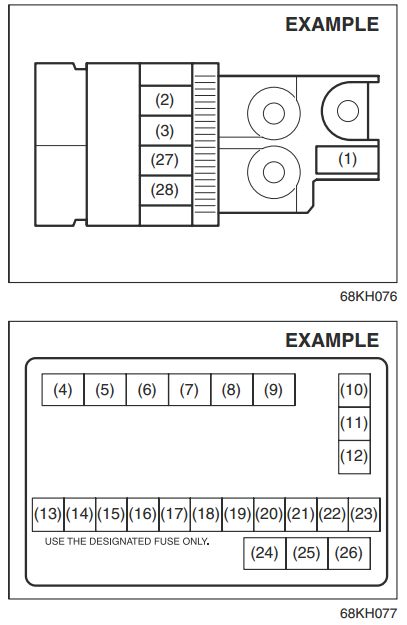

Suzuki Maruti Celerio – fuse box – engine compartment
Fuse Ampere rating [A] Description
(1) 80 FL1
(2) 50 FL5
(3) 50 Fl4
(4) — Front fog light relay
(5) — Blank
(6) — CNG Valve relay
(7) — Air compressor relay
(8) — Back up relay
(9) — F/P relay
(10) 40 ABS motor
(11) 40 T/M pump
(12) 40 Power steering
(13) 20 Front fog light
(14) 7,5 CNG Valve
(15) 30 Ignition switch
(16) 10 Air compressor
(17) 15 FI
(18) 10 T/M
(19) 15 Headlight (Right)
(20) 25 ABS control module
(21) 15 Headlight (Left)
(22) 30 Starting motor
(23) 30 Radiator fan
(24) — FI main relay
(25) — Starting motor relay
(26) — Radiator fan relay
(27) 80 FL3
(28) 80 FL2

Fuse box under dash board

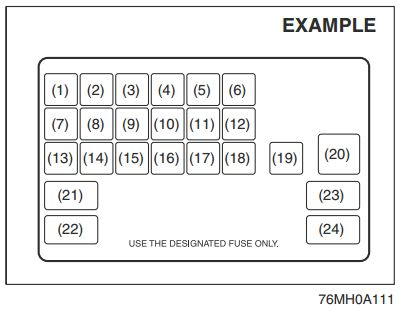

Suzuki Maruti Celerio - fuse box - under dash board
Suzuki Maruti Celerio – fuse box – under dash board
Fuse Ampere rating [A] Description
(1) 10 Stop light
(2) 30 Blower motor
(3) 10 ST SIG
(4) 15 Accessory
(5) 10 Rear fog light
(6) 10 Tail light
(7) 10 Back-up light
(8) 10 ABS
(9) 10 Meter
(10) 15 Ignition coil
(11) 20 Wiper/Washer
(12) 10 IG2 SIG
(13) 10 Ig1 SIG
(14) 10 Air bag
(15) 20 Power window timer
(16) 20 Door lock
(17) 15 Horn/Hazard
(18) 20 Rear defogger
(19) 15 Dome
(20) 30 Power window
(21) 7,5 CNG
(22) 15 Radio 2
(23) — ACC2
(24) — Blank

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
